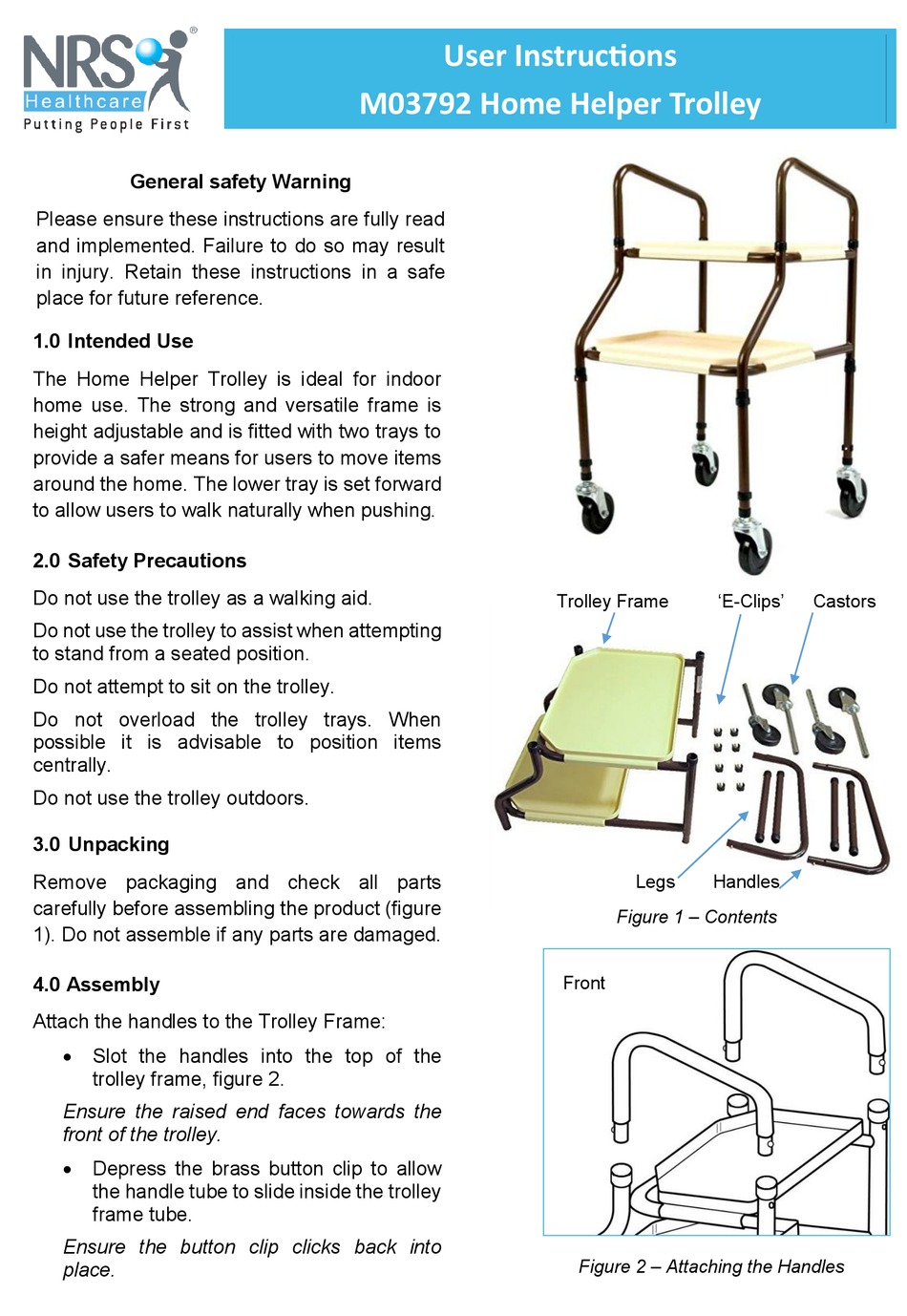

NRS Healthcare M03792 User Instructions

General safety Warning
Please ensure these instructions are fully read
and implemented. Failure to do so may result
in injury. Retain these instructions in a safe
place for future reference.

1.0 Intended Use

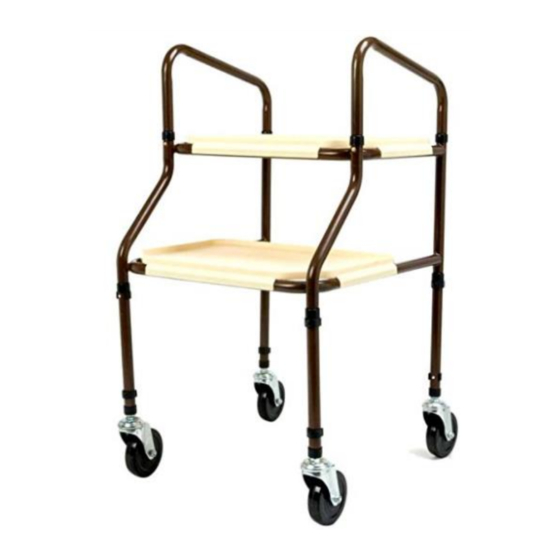

The Home Helper Trolley is ideal for indoor
home use. The strong and versatile frame is
height adjustable and is fitted with two trays to
provide a safer means for users to move items
around the home. The lower tray is set forward
to allow users to walk naturally when pushing.

2.0 Safety Precautions

Do not use the trolley as a walking aid.
Do not use the trolley to assist when attempting
to stand from a seated position.
Do not attempt to sit on the trolley.
Do not overload the trolley trays. When
possible it is advisable to position items
centrally.
Do not use the trolley outdoors.

3.0 Unpacking

Remove packaging and check all parts
carefully before assembling the product (figure
1). Do not assemble if any parts are damaged.

4.0 Assembly

Attach the handles to the Trolley Frame:
 Slot the handles into the top of the
trolley frame, figure 2.
Ensure the raised end faces towards the
front of the trolley.
 Depress the brass button clip to allow
the handle tube to slide inside the trolley
frame tube.
Ensure the button clip clicks back into
place.
User Instructions
M03792 Home Helper Trolley
Trolley Frame 'E-Clips'
Legs Handles
Figure 1 – Contents
Front
Figure 2 – Attaching the Handles
Castors
