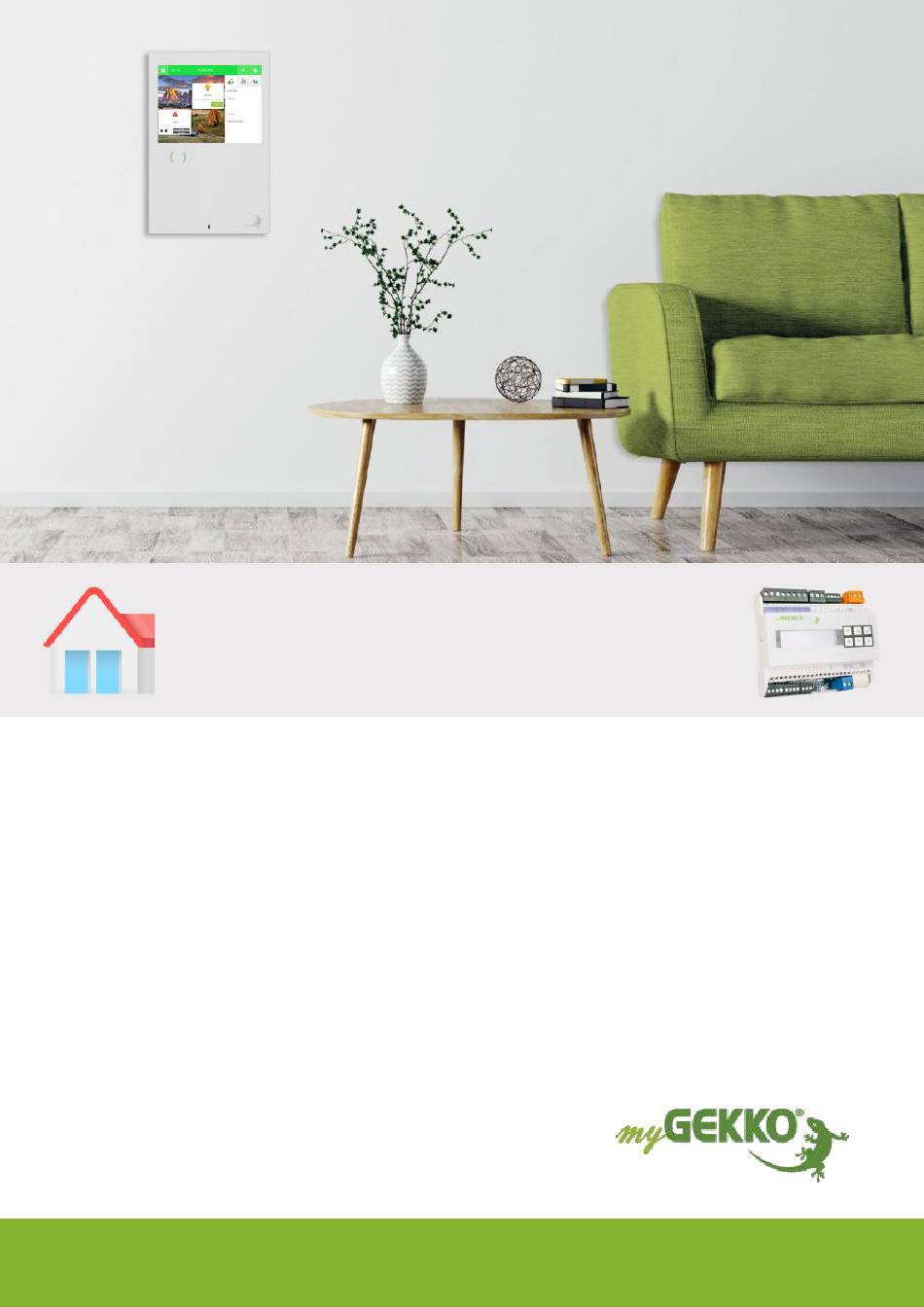

- Page 1 BASE R22 myGEKKO BASE R22 Technical manual Technical manual...
-
Page 2: Table Of Contents
Table of contents Safety and warranty................. 3 General information................. 5 Technical specifications..............6 Digital Inputs...................7 Analogue Inputs................8 Digital outputs................9 Analogue outputs................9 AUX1/RS-485................10 Ethernet connection..............10 WLAN Network................12 REG Installation instructions............14 User group..................14 General safety information............14 Installation instructions............... 14 External fuse protection.............. -
Page 3: Safety And Warranty
Safety and warranty These reliable devices are built according to the current rules of technology. They were tested and left the factory in perfect condition. However, there are residual risks. Read and follow the safety instructions to avoid hazards. Ekon GmbH assumes no liability for damages caused by non-observance of safety instructions. - Page 4 DANGER Electrical Voltage! Danger to life and fire due to electrical voltage Inside the device are unprotected live components. Observe the VDE regu- lations. Disconnect all cables to be installed and take precautions against unintentional switching on. Do not operate the device if damaged. Decom- mission the device or system and secure it against unintentional operation if it can be assumed that safe operation is no longer guaranteed.
-
Page 5: General Information
General information myGEKKO B.Series BASE R22 is a REG controller for the implementation of all areas of modern building control. The combination of numerous complex control algorithms with a user-friend- ly and easy-to-understand interface enables the visualisation and operation of various building functions via smart devices such as smartphones, tablets, laptops or PCs. -
Page 6: Technical Specifications
Technical specifications Parameters Value Housing Plastic Color White similar to RAL9003 Installation REG installation Dimensions 98.7 x 105 x 64mm Weight 280 g Operating temperature +5°C to +40°C Storage temperature -20°C to +70°C Ambient humidity Max. 85% RH not condensing Supply voltage 24 VDC Power consumption (internal) -
Page 7: Digital Inputs
Connection data Parameters Value Note Insulation stripping 7 mm length 0.1 -1.5 mm² Plug-in screw terminal 0.1 -1.5 mm² Plug-in screw terminal DO (RO) 0.1 -2.5 mm² Plug-in screw terminal DO (SSR) 0.1 - 2.5 mm² Plug-in screw terminal 0.1 -1.5 mm² Plug-in screw terminal Care 0.1 - 2.5 mm²... -
Page 8: Analogue Inputs
Analogue Inputs Parameters Value/Resolution PT 1000 input -50 to 150°C Resolution: 0.01°C Deviation: 0.25% Voltage input Voltage: 0-10V Deviation: 0.25% Power input Electricity: 0-25mA Deviation 1% Input AI1, AI2 fixed: 1. PT1000 -50 ... 150°C Input AI3, AI4 switchable via DIP switch: PT1000 -50 ... -
Page 9: Digital Outputs
Digital outputs Parameters Value RO output (digital relay output) Single-pole switch with working con- tact Continuous load current: 5A Switching voltage: 250VAC / 30VDC Isolation (EN 60947-4-1 ed. 3 general use, AC1, no inductive loads) (EN60730-1: 2017: Chapter 13, Ta- ble 12) DO output: (Solid State Relays Continuous load current: 0.4 A... -
Page 10: Aux1/Rs-485
Parameters Value Typical load 10kOhm Analogue output 1 Analogue output 2 GND analogue output AUX1/RS-485 Parameters Value Interface RS-485 Baud rates 9.600, 19.200, 38.400, 57.600 and 115.200 Parity adjustable TS (Termination Switch) 180 ohm terminal resistance Ethernet connection Parameters Value Ethernet type 10/100 base T Circuit insulation voltage... - Page 11 This mode is suitable for connecting e.g. two controllers B.Series BASE R22 CAUTION Devices with a high data throughput rate must not be "bridged" via myGEKKO B.Series BASE R22. This leads to high CPU load and possible damage to the device.
-
Page 12: Wlan Network
WPA2. To configure this mode with SSID and password, you must connect to myGEKKO via the web interface, log in as a Configura- tor and access the network settings. For more information on accessing your myGEKKO, see chapter 4.2 Web access. - Page 13 LAN network, whereby myGEKKO B.Series Base 22 can also address devices in the LAN network or can be controlled over the same.
-
Page 14: Reg Installation Instructions
REG Installation instructions User group The installation and assembly of electrical equipment may only be performed by a qualified electrician. Failure to follow the instructions may result in dam- age to the unit, fire, or other hazards. NOTE These instructions are part of the product and must remain with the end customer. - Page 15 The strain relief of the connecting cables must be made during the installation. The modules have no strain relief.
-
Page 16: External Fuse Protection
External fuse protection The 24VDC supply voltage must be externally fused according to the cross- section of the connection wires and the maximum current consumption of the device. WARNING For the B.Series BASE R22, it must be ensured that the maximum current of the digital outputs is limited by an external fuse: DO 1-4: 5 A @ 230 V DO 5-6: 0,4 A @ 24 V... -
Page 17: Commissioning Controller
Commissioning controller Text display The text display is used to read current information about the network status and to change various settings. The menu is structured as follows: Navigation The navigation of the controller is done exclusively via the arrow keys. To change a setting, first press the confirmation button. -
Page 18: Web Access
B.Series BASE R22 can be accessed via the web browser in two different ways: Access over the myGEKKO B.Series BASE R22 has a fixed IP address in the delivery state; the LAN network (eth0 network is bridged and access to myGEKKO user interface can be made via a or eth1) browser of the latest generation via the address http://192.168.2.252:8080. -
Page 19: Configuration
Default passwords User: w Administrator: ww Configurator: mygekko Access There are the following options for accessing myGEKKO B.Series BASE R22: configuration Enable the B.NIO WLAN access point (only recommended for first ac- cess) LAN network with input via browser from http://192.168.2.252:8080... - Page 20 AI assignment AI 1 and AI 2 are only designed for PT1000 sensors. In the case of the IO con- figuration, however, AI 1 and AI 2 can still be selected for AI Voltage and AI Current, these are without function. NOTE If an AI sensor type has been defined and subsequently changed, a restart is required for the values to be displayed correctly.
-
Page 21: List Of Connections
List of connections Connecting terminal Description Note AUX1 RS485 AUX2 RS485 ETH0 ETH1 Digital input 1 DI 1 Digital input 2 Di 2 Digital input 3 DI 3 Digital input 4 DI 4 Relay output 1 RO1 230V Relay output 2 RO2 230V Relay output 3... - Page 22 Connecting terminal Description Note Analog output 1 Analog output 2 ...
-
Page 23: Notes
Notes... - Page 24 Technical manual myGEKKO BASE R22 MRK.THB.REG.B001 - version 1.6 - Status 2020-01-29 myGEKKO | Ekon GmbH St. Lorenznerstr. 2 I-39031 Bruneck (BZ) Tel. +039 0474 551820 info@my.gekko.com www.my-gekko.com Ekon Vertriebs GmbH Fürstenrieder Str. 279a, D-81377 München Vertriebsbüro Eislingen Schillerstr. 21, D-73054 Eislingen...
