Pressing the Back button will return to the previous screen.

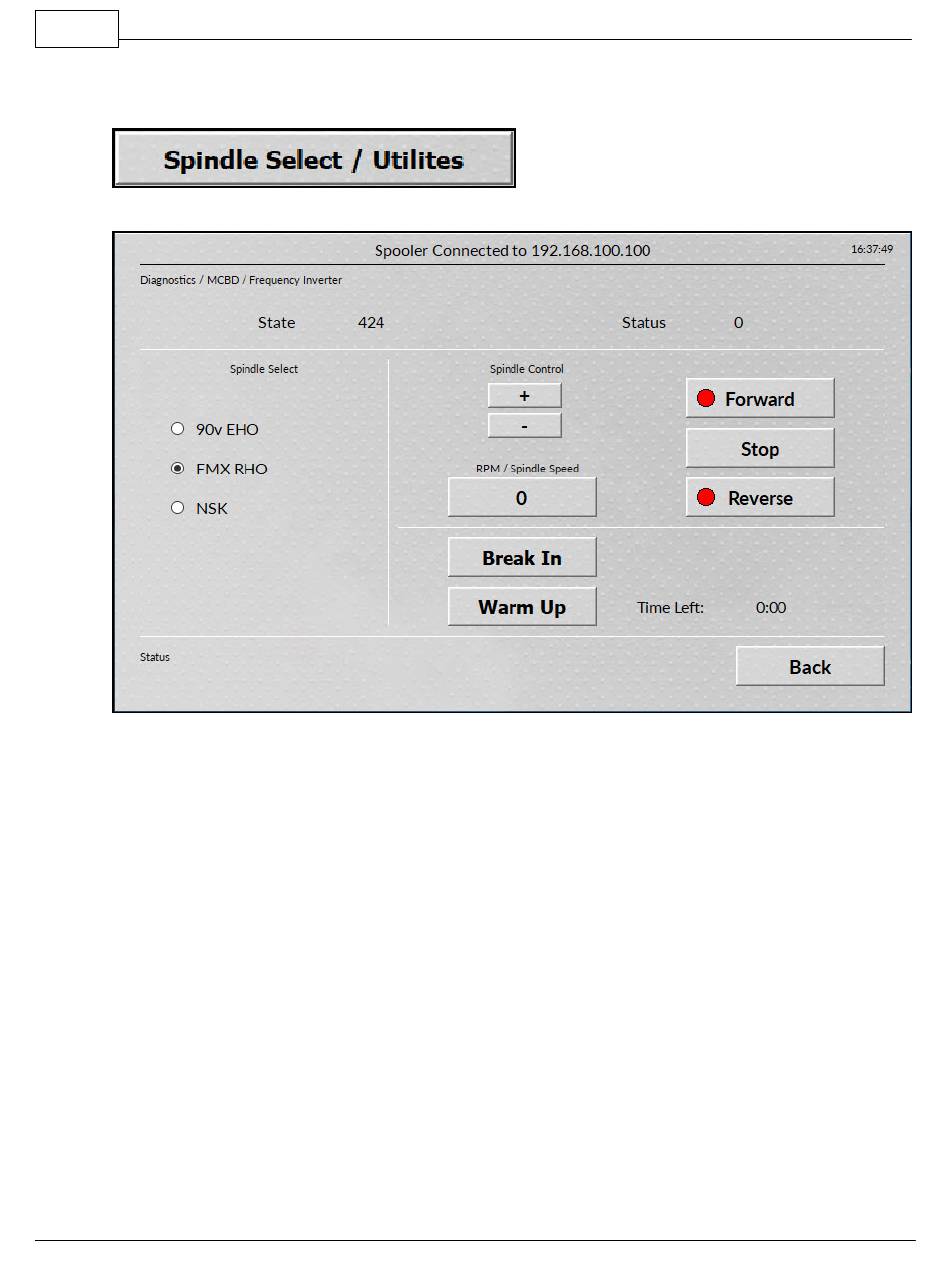

Press Spindle Select / Utilities button will display the screen below:
The spindle can manually be enabled for testing, warm up or break in (FMX inverter with Router Head and
NSK 50,000 RPM spindle only)
Select the spindle type by pressing the dot to the left of the spindle name in the Spindle Select area.
·
90v EHO - Engraving head option
·
FMX RHO - ELTE router head option with FMX inverter
·
NSK - 50,000 RPM spindle
NOTE: Only the spindles available for the machine model being used will be displayed. Not all spindle
types may have been purchased for the machine.
Selecting the + or - in the Spindle Control area will power the spindle on and increase or decrease the
spindle RPM. An RPM value can be manually entered by pressing the RPM / Spindle Speed Button.
