  • Page 1 DSH 600-X English...
  • Page 7 DSH 600-X Original operating instructions ........

  • Page 9: Information About The Documentation

    Original operating instructions Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...

  • Page 10: Product-Dependent Symbols

    Product-dependent symbols 1.3.1 Symbols on the product The following symbols are used on the product: Direction-of-rotation arrow on the guard Engine stop position Engine run position Primer bulb Full-throttle jet adjusting screw Idling jet adjusting screw Idling adjusting screw Fuel mixture Fuel-tank cap opening direction Speed Revolutions per minute...

  • Page 11: Product Information

    The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
  • Page 12 ▶ Always hold the tool firmly with both hands on the grips provided. Keep the grips clean, dry and free from oil and grease. ▶ If there is an unwanted increase in speed, set the run/stop switch to the "stop" position. Contact Hilti Service.
  • Page 13 ▶ Keep the workplace tidy. Objects which could cause injury should be removed from the working area. Untidiness at the workplace can lead to accidents. ▶ Hot exhaust gases containing sparks or sparks generated by the cutting operation may cause fire or explosion.

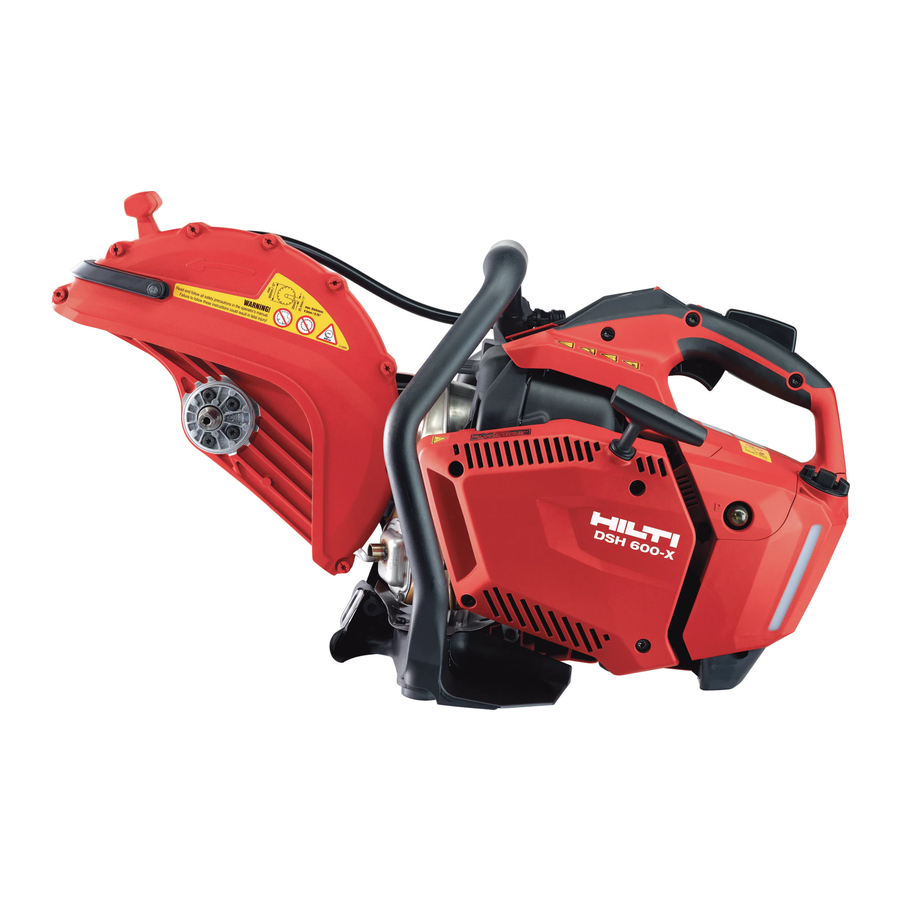

  • Page 14 Description Product overview 3.1.1 Gasoline-powered cut-off saw Guard Water supply Water connection Front grip Throttle trigger & Rear grip Recoil starter pull handle Fuel tank cap Primer bulb § Fuel level indicator Footplate Exhaust discharge with spark filter ∙ Cutting disc Clamping screw £...

  • Page 15: Technical Data

    Items supplied DSH 600-X gasoline-powered saw, tools set, DSH 600-X wear parts and consumables set, operating instructions. Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group Saw blade brake The product is equipped with an integrated saw blade brake to increase operator safety.

  • Page 16: Before Use

    Tightening torque for fitting the spark plug 12 Nm Fuel mixture API-TC oil 2% (1:50) Tank capacity 0.87 ℓ Cutting disc arbor size / diameter of centering bush 20 mm Cutting disc arbor size / diameter of centering bush 25.4 mm 60 mm Minimum flange outside diameter for diamond cutting discs (only for steel-core discs;...
  • Page 17 WARNING Risk of injury. The inhalation of gasoline vapors and skin contact with gasoline may be hazardous to the health. ▶ Avoid direct skin contact with gasoline. Wear protective gloves. ▶ If your clothing becomes soiled with gasoline, it is essential to change your clothing. ▶...
  • Page 18 5.2.1 Fitting a cutting disc 2, 3, WARNING Risk of injury and damage. Unsuitable cutting discs or unsuitable parts used to secure the disc can suffer irreparable damage during operation or lead to loss of control of the product or breakage of the accessory tool. ▶...

  • Page 19: Operation

    5.2.2 Adjusting the guard WARNING Risk of injury. Contact with the cutting disc and flying fragments or sparks can cause injury to persons. ▶ Adjust the guard so that flying particles or fragments of the material removed and flying sparks are directed away from the operator and the product.
  • Page 20 ▶ Readjust (reduce) the idling speed if the cutting disc doesn’t stop rotating when the engine is idling. If this is not possible, please bring the product to Hilti Service. 2. Check that the start/stop switch is functioning correctly. Move the start/stop switch to the “stop” position.

  • Page 21: Avoiding Kickback

    A decrease in the rate of cutting progress may be an indication of blunt/dull (“polished”) diamond segments. The diamond segments can be resharpened by making a few cuts in an abrasive material (Hilti sharpening plate or sand-lime block). ▶ Guide the gasoline-powered saw smoothly and without applying lateral pressure to the cutting disc.

  • Page 22: Care And Maintenance

    Adjust the idling speed if the cutting disc does not slow to a standstill when the × engine is idling. Have the product repaired by Hilti Service if the drive belt slips when a load is × applied to the cutting disc.
  • Page 23 4. Securely knot one end of the replacement starter cord and from above, pass the other end of the cord through the hole in the spool. 5. From below, pass the end of the cord through the hole in the starter housing and from below through the pull handle, and securely knot the end of the cord.

  • Page 24: Maintenance

    Care of the product To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with your product can be found at your Hilti Store or online at: www.hilti.group ▶...

  • Page 25: Troubleshooting

    The diamond cutting disc Diamond cutting disc does not fit ▶ Use Hilti cutting discs. swings up and may jam. correctly Flange for diamond cutting disc ▶ With cutting discs made by...
  • Page 26 ▶ Fill the fuel tank with the correct fuel. The disc specification is unsuitable ▶ Change the cutting disc or ask Hilti Service for advice. for the material to be cut. Drive belt or cutting disc slips. ▶ Check that the cutting disc is clamped securely.

  • Page 27: Manufacturer's Warranty

    Hilti Service. Disposal Most of the materials from which Hilti products are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
  • Page 28 English 2275356 *2275356*...
  • Page 32 *2275356* 2275356 Hilti = registered trademark of Hilti Corp., Schaan Pos. GB | 20200618...
