- Page 1 DSH 600 DSH 600-X English Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...
- Page 2 Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
- Page 4 Smoking and naked flames prohibited. 1.5 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.
- Page 5 ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to enquire about the product. Product information Cut-off saw DSH 600 | DSH 600-X Generation Serial no.
- Page 6 Have damaged parts repaired before using the tool. ▶ To avoid risk of injury, use only genuine Hilti accessories and accessory tools. ▶ Have the tool repaired only by qualified specialists using only genuine Hilti spare parts. The safety of the tool can thus be maintained.
- Page 7 ▶ When fitting the cutting disc, always take care to ensure that the disc’s specified direction of rotation corresponds to the direction of rotation of the spindle. ▶ The cutting disc and flange or any other accessory must fit the arbor of the product exactly. Cutting discs or accessories with arbor holes that do not match the mounting hardware of the product will run out of balance, vibrate excessively and may cause loss of control.
- Page 8 English Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...
- Page 9 English Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...

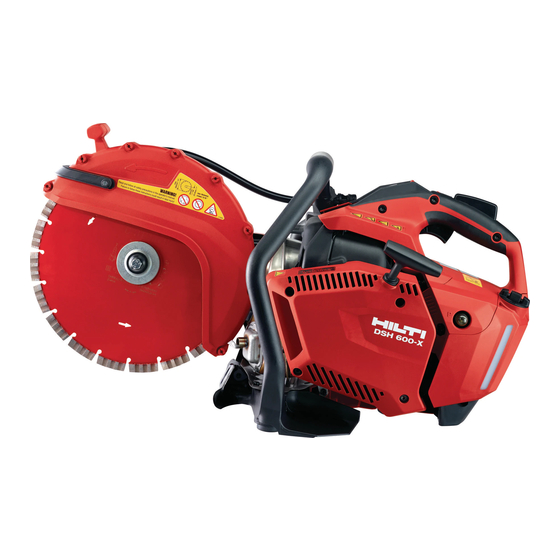

- Page 10 3 Description 3.1 Product overview 3.1.1 Gasoline-powered cut-off saw English Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...
- Page 11 3.6 Items supplied Gasoline-powered cut-off saw, DSH 600/DSH 600-X tool set, DSH 600/DSH 600-X consumables set, operating instructions. You can find other system products approved for your product at your local Hilti Center or online at: www.hilti.com English Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...
- Page 12 3.7 Saw blade brake DSH 600-X The product is equipped with an integrated saw blade brake to increase operator safety. The saw blade is braked to a standstill in a maximum of 10 seconds after the throttle safety grip is released.
- Page 13 Cutting disc arbor size / diameter of centering 0.8 in bush (20 mm) Cutting disc arbor size / diameter of centering 1.00 in bush (25.4 mm) 2.0 in Minimum flange outside diameter for dia- mond cutting discs (only for steel-core discs; the (50 mm) flanges are marked with “For diamond abrasive steel core wheels only”).
- Page 14 5.1.3 Mixing fuel Note The engine will suffer damage if run with fuel mixed in the wrong ratio or with unsuitable oil. Use a mixing ratio of 1:50. This corresponds to 1 part good-quality two-stroke oil that complies with the API-TC specification and 50 parts gasoline (e.g. 100 ml oil and 5 liters of gasoline mixed in a suitable canister).
- Page 15 1. Insert the locking pin in the hole in the drive belt cover and turn the cutting disc until the locking pin engages. 2. Release the securing screw by turning the screw counterclockwise with the wrench and then remove the screw and washer.
- Page 16 7. Select one of the following alternatives. ▶ Use only the large flange to secure the abrasive cutting disc. ▶ Use the small flange with diamond cutting discs in order to utilize the full cutting depth. 8. Place the cutting disc with centering collar on the drive arbor and check that the direction of rotation is correct.
- Page 17 5.2.3 Fitting the water pump (accessory) 1. Release the three pump cover retaining screws, remove the parts and store the pump cover in a safe place. Note The pump cover must be fitted if the tool is used without the water pump. 2.
- Page 18 5. Fit the pump cover on the tool, insert the three retaining screws and tighten the screws securely (tightening torque: 4 Nm). 5.2.5 Fitting the wheel set (accessory) 1. Slacken the two bottom securing screws on the metal guard. 2. Secure the base plate with the two screws. 3.
- Page 19 ▶ If the engine doesn’t stop, push the choke lever upwards. If the engine still doesn’t stop, pull the spark plug connector off the spark plug and bring the product to Hilti Service. 4. If the following equipment exists, also take this action: DSH 600-X ▶...
- Page 20 ▶ Check that no persons are present in the working area and, in particular, in the direction in which the cut is to be made. Keep other persons approx. 15 m away from your workplace. ▶ Guide the tool smoothly and do not apply lateral pressure to the cutting disc. ▶...
- Page 21 Adjust the idling speed if the cutting disc does not slow to a standstill when the engine is idling. Have the product repaired by Hilti Service if the drive belt slips when a load is applied to the cutting disc.
- Page 22 1. Release the securing screw on the air filter cover and remove the cover. 2. Carefully remove the dust adhering to the air filter and the filter chamber (use a vacuum cleaner). 3. Release the four screws retaining the filter holder and remove the air filter. 4.
- Page 23 12. Install the cover and secure it with the two securing screws. 13. Place the starter assembly in position and carefully press it down. Pull the starter cord slightly until the coupling engages and the starter assembly is fully seated. 14.
- Page 24 The carburetor of this product has been factory set for optimum performance and sealed to prevent tampering (jets H and L). The idling speed of the machine (jet T) may be adjusted by the user. All other adjustments must be carried out by Hilti Service. Note Tampering with the carburetor settings may cause damage to the engine.
- Page 25 7.8 Care of the product Note To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by us for use with the product can be found at your local Hilti Center or online at: www.hilti.com ▶...
- Page 26 The diamond cutting disc Diamond cutting disc does not fit ▶ Use Hilti cutting discs. swings up and may jam. correctly Flange for diamond cutting disc ▶ With cutting discs made by...
- Page 27 The disc specification is unsuitable ▶ Change the cutting disc or ask for the material to be cut. Hilti Service for advice. Drive belt or cutting disc slips. ▶ Check that the cutting disc is clamped securely. ▶ Have the product repaired by Hilti Service.
- Page 28 10 Disposal Most of the materials from which Hilti products are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 29 Hilti in the owner’s manual. Hilti recommends that you retain all receipts covering maintenance on your small non-road engine, but Hilti cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. Any replacement part or service that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.
- Page 30 Mississauga, ON L5N 6S2 CanadaSalesSupport.English@hilti.com CanadaSalesSupport.French@hilti.com This constitutes Hilti’s entire obligation with regard to warranty and supersedes all prior or contemporaneous comments and oral or written agreements concerning warranties. English Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...
- Page 31 Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...
- Page 32 Hilti = registered trademark of Hilti Corp., Schaan 20170322 Printed: 30.03.2017 | Doc-Nr: PUB / 5341998 / 000 / 00...
