Mocka Eva A-Frame Assembly Instructions

Bookcase

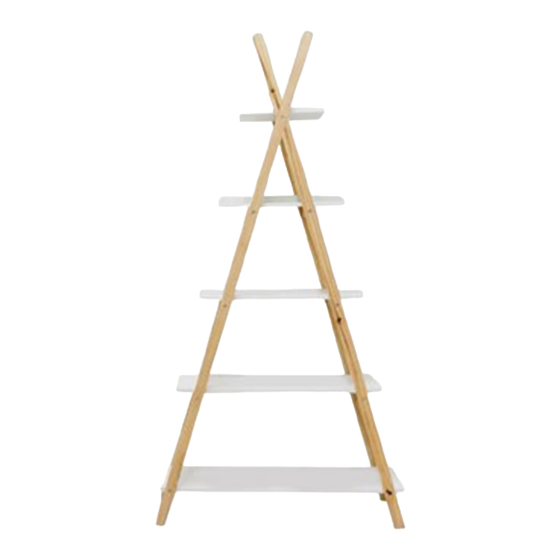

Eva A-Frame Bookcase

Thank you for your purchase.

Please follow the instructions below for correct assembly.

cam nut

x18

scerw

x18

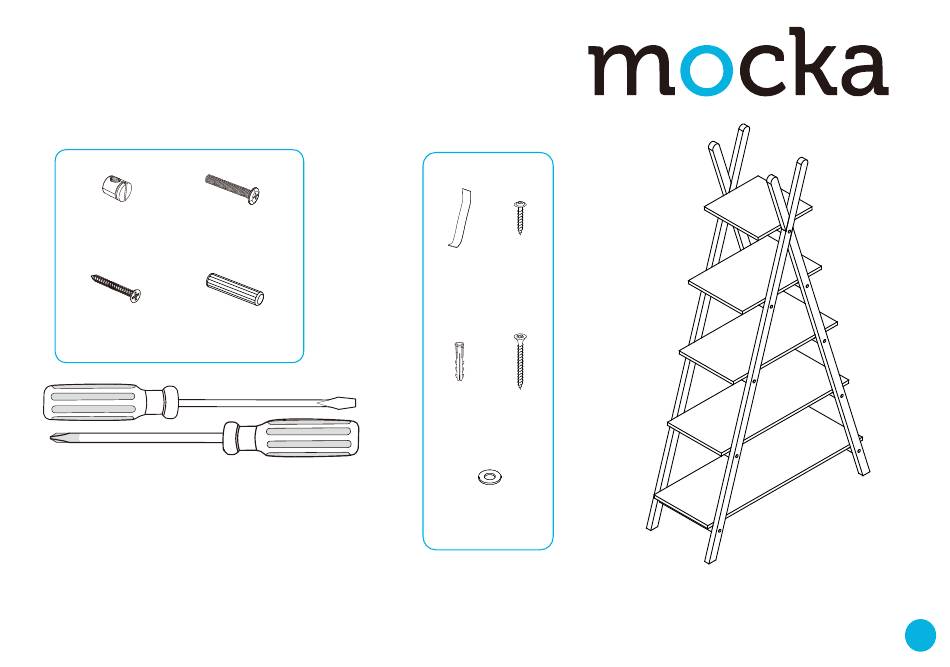

Hardware Supplied

Phillips & Flathead screwdrivers required. For quicker assembly,

we recommend the use of a power drill on a low-speed setting.

WARNING:

Any furniture that is not anchored to a wall has the

potential to tip over in certain circumstances, i.e. if a child attempts to

climb up on the furniture or in the event of an earthquake. Accordingly,

we recommend that all furniture is anchored to a wall. We supply a

free safety wall anchor with all furniture sold and we recommend

these are used to prevent your product tipping. The fixing device

provided should fit most wall types, but please note that different wall

materials may require different fixing devices from those supplied.

mocka.co.nz | mocka.com.au

cam bolts

x18

dowel

safety

screw

strap

wall

anchor

screw

washer

Table of Contents

Do you have a question about the Eva A-Frame and is the answer not in the manual?

Page 1 Eva A-Frame Bookcase Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. cam nut cam bolts safety screw strap scerw dowel Hardware Supplied wall wall anchor screw Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting.
Page 2 Eva A-Frame Bookcase Assembly Instructions Attach panel [10] to panel [5] using 2x screws (C). Attach panels [10] to panel [6] Attach panels [10] to panel [9] using 4x screws (C). Attach using 4x screws (C). Attach panels [10] to panel [7] using 4x screws (C). Tighten panels [10] to panel [8] using 4x screws (C).
Page 3 Eva A-Frame Bookcase Assembly Instructions Insert 2x dowels (D) into panel [5]. Insert 9 cam nuts (A) into panel [10], then Insert 2x dowels (D) into panel [5]. Insert 9x cam nuts (A) into panel [10], then attach panels [3] and [4] using 9x cam bolts (B). Tighten with a screwdriver.
Page 4 Eva A-Frame Bookcase Assembly Instructions Wall Strap Attach safety strap (V) to the top of the back side of the ladder using Move the bookcase into the desired location up against a wall.Use a drill 1x washer (Z) and 1x screw (W). Thighten with a screwdriver. Once to create a small hole lining up with the top of the safety strap (V).Fasten...
