Summary of Contents for Chauvet Professional OVATION E-930VW

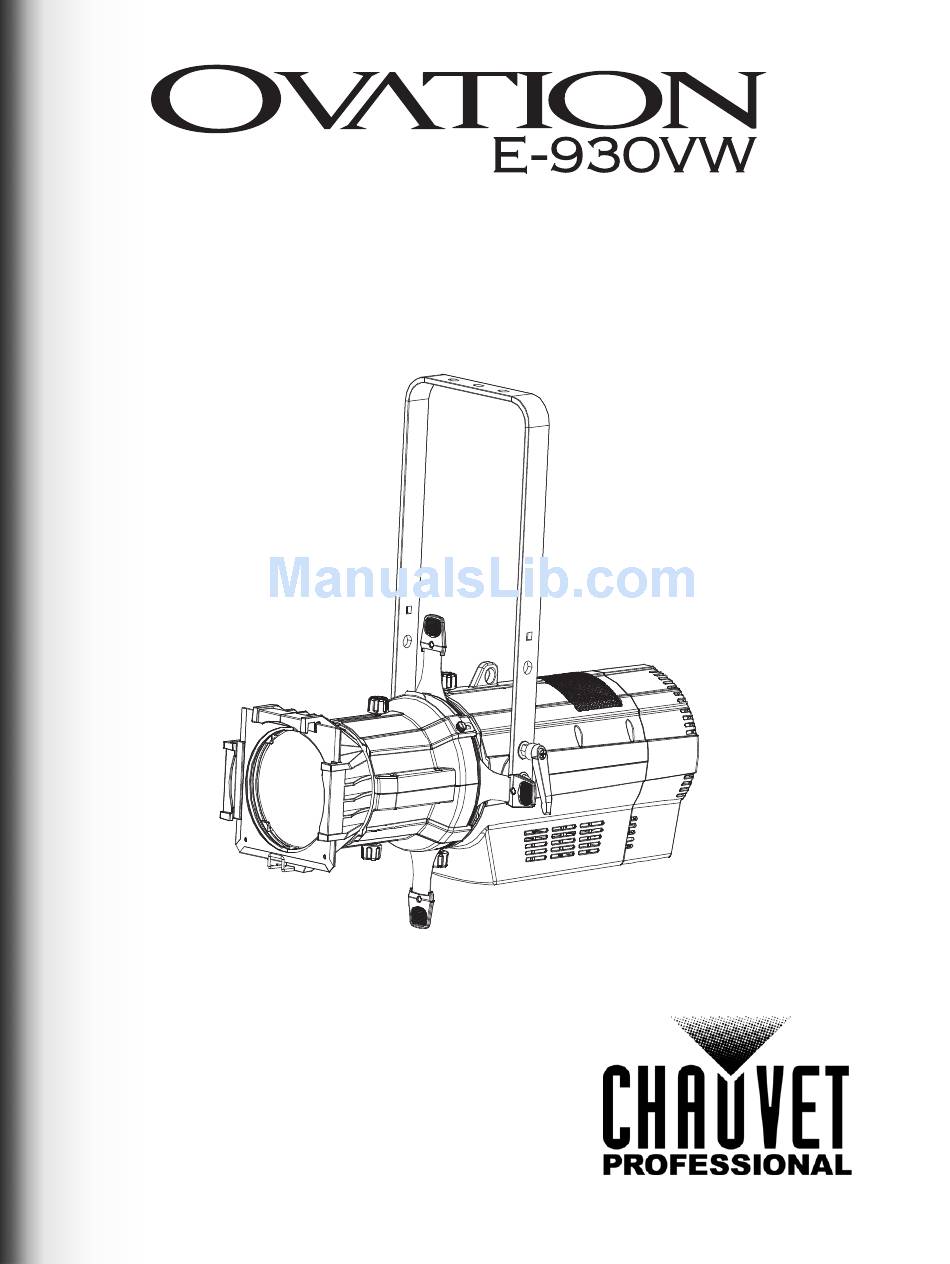

- Page 1 User Manual...
- Page 2 Edition Notes The Ovation E-930VW User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation E-930VW as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and Ovation E-930VW are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Passcode ........................Menu Map ..................... 11 Configuration (Standalone) ................12 Static Mode ........................Master/Slave ........................Mode Setting ........................Configuration (Operating Settings)..............13 Power Mode ........................Dimmer Profiles......................Dimmer Curves ......................Performance Mode......................Factory Reset......................... Ovation E-930VW User Manual Rev. 1... - Page 4 DMX Error ........................DMX Values ....................14 STD.P..........................DOS ..........................UNO ..........................5. Technical Information ..............Product Maintenance ..................15 6. Technical Specifications ............Photometric Charts ..................17 750 W..........................575 W..........................Returns.................... Contact Us ..................Ovation E-930VW User Manual Rev. 1...
-
Page 5: Before You Begin
Any reference to power connections in this manual assumes the use of Neutrik® powerCON® cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Page 1 of 28 Ovation E-930VW User Manual Rev. 1... -
Page 6: Safety Notes
90,000 to 100,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product, thus reducing the ambient temperature. In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. Page 2 of 28 Ovation E-930VW User Manual Rev. 1... -
Page 7: Introduction
2. Introduction Description Ovation E-930VW is a high-performance, variable white ellipsoidal style fixture that utilizes our unique 6- color LED system. This fixture projects a bright, flat field of light in nearly any temperature of white with high CRI and CQS. Each color temperature can be further adjusted for +/- green to perfect the field of light. -
Page 8: Product Overview
Framing Shutter (x4) B-size holder for 2.5-in and 2.75- in patterns, sold separately) Barrel Rotation Knobs Accessory Slot Beam Focus Knobs Gel Frame Holder Lens Tube Barrel Light Engine (sold separately) Assembly Page 4 of 28 Ovation E-930VW User Manual Rev. 1... -
Page 9: Product Dimensions
Introduction Product Dimensions 25 in 636 mm 28 in 800 mm 13.5 in 344 mm 23 in 590 mm Page 5 of 28 Ovation E-930VW User Manual Rev. 1... -
Page 10: Setup
Green/Yellow Green Power Linking The product supports power linking, you can link up to 6 Ovation E-930VW products at 120 V, 11 units at 208 V, or 13 products at 230 V. Fuse Replacement Disconnect the product from the power outlet. -
Page 11: Dmx Linking
DMX-compatible products with this product, you can control each individually with a single DMX controller. DMX Personalities The Ovation E-930VW uses a 3- or 5-pin DMX data connection for its 3-, 5-, 6-, 8-, 11-, 15- and 17-channel DMX personalities. -
Page 12: Mounting
Only loosen or tighten the bracket knob manually. Using tools could damage the knob. Procedure The Ovation E-930VW comes with a hanging/mounting bracket to which mounting clamps can be attached. The bracket has 13-mm holes, which are appropriate for this purpose. Be sure the clamps used are capable of supporting the weight of this product. -
Page 13: Manual Beam Focus Control
Tighten the knobs by turning them clockwise, which lock the lens tube’s position. To avoid changing menu settings while focusing the Ovation E-930VW, press and hold the <ENTER> button for 3 seconds. This will put the product in “Focus Mode” by increasing the intensity to 100%. -
Page 14: Accessory Slot
Setup Accessory Slot The Ovation E-930VW has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately). Loosen the thumbscrews on the slot cover. • Note: Do not remove the thumbscrews. -
Page 15: Operation
<DOWN> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the Ovation E-930VW starting address in the 001-512 DMX range. This enables control of up to 30 products in the 17-channel personality. -
Page 16: Menu Map
Sets royal blue LED maximum value Blue Lime 125-255 Sets lime LED maximum value Auto Sets the fan to auto mode Fan Mode Sets the fan to always on Turns the fan off Page 11 of 28 Ovation E-930VW User Manual Rev. 1... -
Page 17: Configuration (Standalone)
The master should be the first product in the daisy chain. Dimmer Profiles This setting determines how fast the output of the Ovation E-930VW changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 18: Factory Reset
Back Light This setting allows for selection of the amount of time the backlight on the Ovation E-930VW’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. - Page 19 Channel Function Value Percent/Setting Dimmer 0–100% 0–100% Orange 0–100% Green 0–100% Royal Blue 0–100% Blue 0–100% Lime 0–100% 0–100% Strobe 0–100% Page 14 of 28 Ovation E-930VW User Manual Rev. 1...
- Page 20 0–100% Strobe 0–100% Channel Function Value Percent/Setting Dimmer 0–100% Refer to the Preset Color Temperature Color Temperature Chart No Function Adjusts +/- green Page 15 of 28 Ovation E-930VW User Manual Rev. 1...
-
Page 21: Technical Information
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 15 of 28 Ovation E-930VW User Manual Rev. 1... -
Page 22: Technical Specifications
Local Plug Light Source Type Power Lifespan 50,000 hours Color Quantity Current 960 mA Orange/Red 960 mA Green 960 mA Blue 960 mA Royal Blue 960 mA Lime 960 mA Page 16 of 28 Ovation E-930VW User Manual Rev. 1... - Page 23 DMX Ordering I/O Connector Channel Range 3- or 5-pin XLR 3, 5, 6, 8, 11, 15, or 17 Product Name Item Name Item Code UPC Number Ovation E-930VW OVATIONE930VW 03121411 781462217594 Page 17 of 28 Ovation E-930VW User Manual Rev. 1...
-
Page 24: Photometric Charts
4.20 m 4.91 m 5.98 m 6.34 m 25 m 5.26 m 6.14 m 7.47 m 7.92 m 30 m 6.31 m 7.37 m 8.97 m 9.50 m Field Beam Field Page 18 of 28 Ovation E-930VW User Manual Rev. 1... - Page 25 7.78 m 8.87 m 9.60 m 11.85 m 25 m 9.72 m 11.08 m 12.00 m 14.81 m 30 m 11.66 m 13.30 m 14.40 m 17.77 m Field Beam Field Page 19 of 28 Ovation E-930VW User Manual Rev. 1...
- Page 26 6.89 m 9.33 m 15 m 10.33 m 13.99 m 20 m 13.77 m 18.65 m 25 m 17.22 m 23.32 m 30 m 20.66 m 27.98 m Field Beam Field Page 20 of 28 Ovation E-930VW User Manual Rev. 1...
- Page 27 3.50 m 4.91 m 7.78 m 10.34 m 25 m 4.37 m 6.14 m 9.72 m 12.93 m 30 m 5.25 m 7.37 m 11.66 m 15.52 m Field Beam Field Page 21 of 28 Ovation E-930VW User Manual Rev. 1...
- Page 28 7.05 m 7.78 m 13.00 m 14.16 m 25 m 8.82 m 9.72 m 16.25 m 17.71 m 30 m 10.58 m 11.66 m 19.50 m 21.25 m Field Beam Field Page 22 of 28 Ovation E-930VW User Manual Rev. 1...
-
Page 29: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 27 of 28 Ovation E-930VW User Manual Rev. 1... -
Page 30: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. Page 28 of 28 Ovation E-930VW User Manual Rev. 1...
