Step 2 - Martin Universal Design Alyssia Craft Table with Tray Quick Start Manual

Step 2

Fig 2
Fig 1
Q
Y
U
S
L
R
T
L
Fig 3
A
Fig 4
S
S
F
M
I
A
A

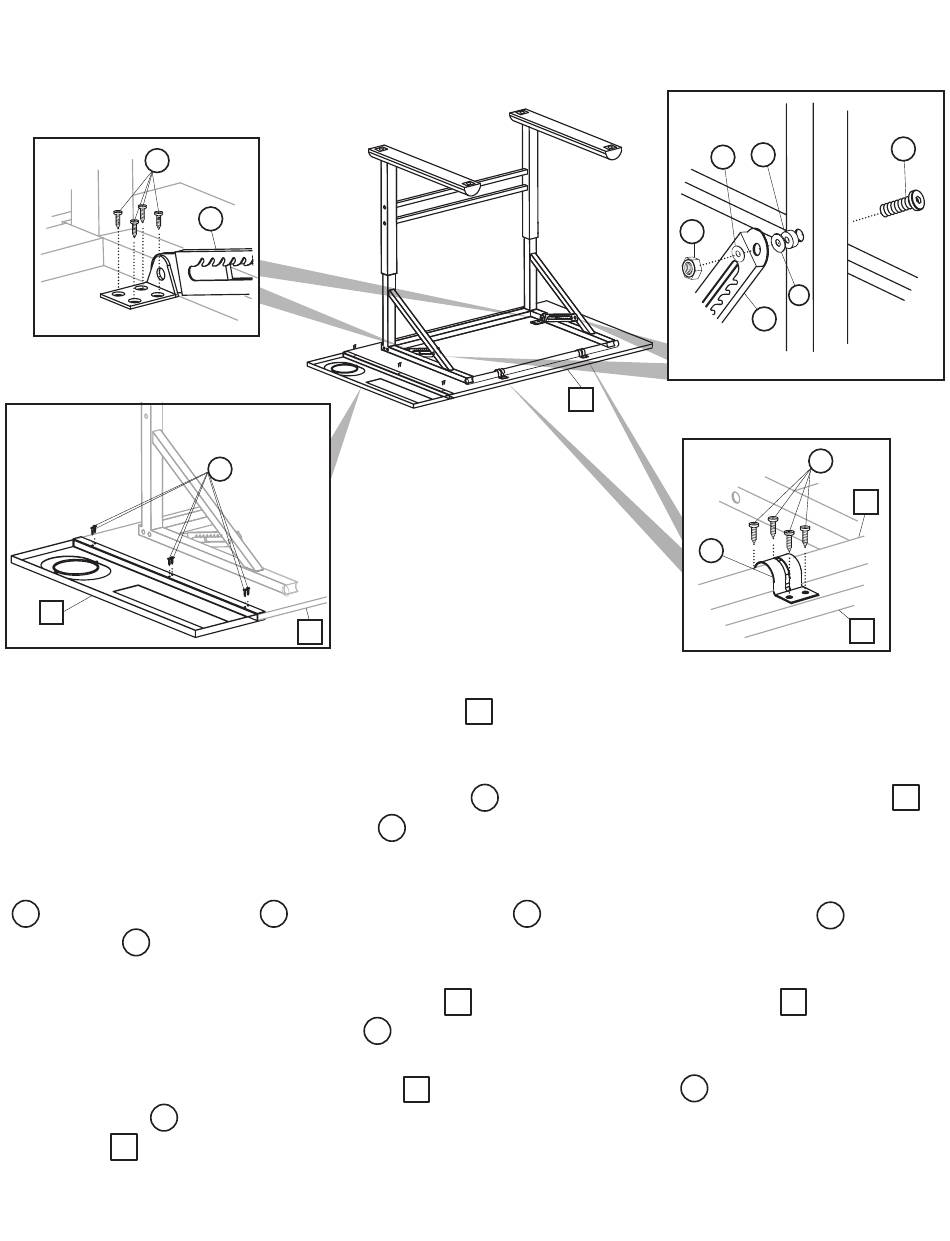

A) Place table upside down on the top (Part A ). Make sure predrilled holes line up
according to the diagram.
B) See Fig 1 - Attach tilt mechanisms (Part L ) into predrilled holes on table top (Part A
) using 4 ea. 5x14mm Screws (Part S ) for each mechanism.
C) See Fig 2 - Attach tilt mechanism to the right and left arms using 5mm spacers (Part
Y ), large washers (Part T ), small washers (Part U ) 1 ea. 6x50mm bolts (Part Q ) and
nuts (Part R ).
D) See Fig 3 - Slide the metal tray (Part I ) to the edge of table top (Part A ) and attach
using 6 ea. 5x14mm Screws (Part S ).
E) See Fig 4 - Attach crossbar (Part F ) using tilt brackets (Part M ) and 4 ea. 5x14mm
screws (Part S ). Make sure to line up holes on brackets to predrilled holes on the table
top (Part A )
