Curve Diagram Of Static Pressure & Air Flow Volume - Midea VRF V4 Plus I Series Manual

MCAC-VTSM-2014-04
Size (mm)
A
B
C
D
θ
Static
Note
pressure
0Pa Factory default
Remove the steel meshes, connect the
0~20Pa air deflector pipe within 3 meters
(length of C)
Over 20Pa Need to be customized
Installation
A≥300
B≥250
C≤10000
600≤D≤760
θ≤15 o
R410A DC Inverter VRF V4 Plus Individual Series 50Hz

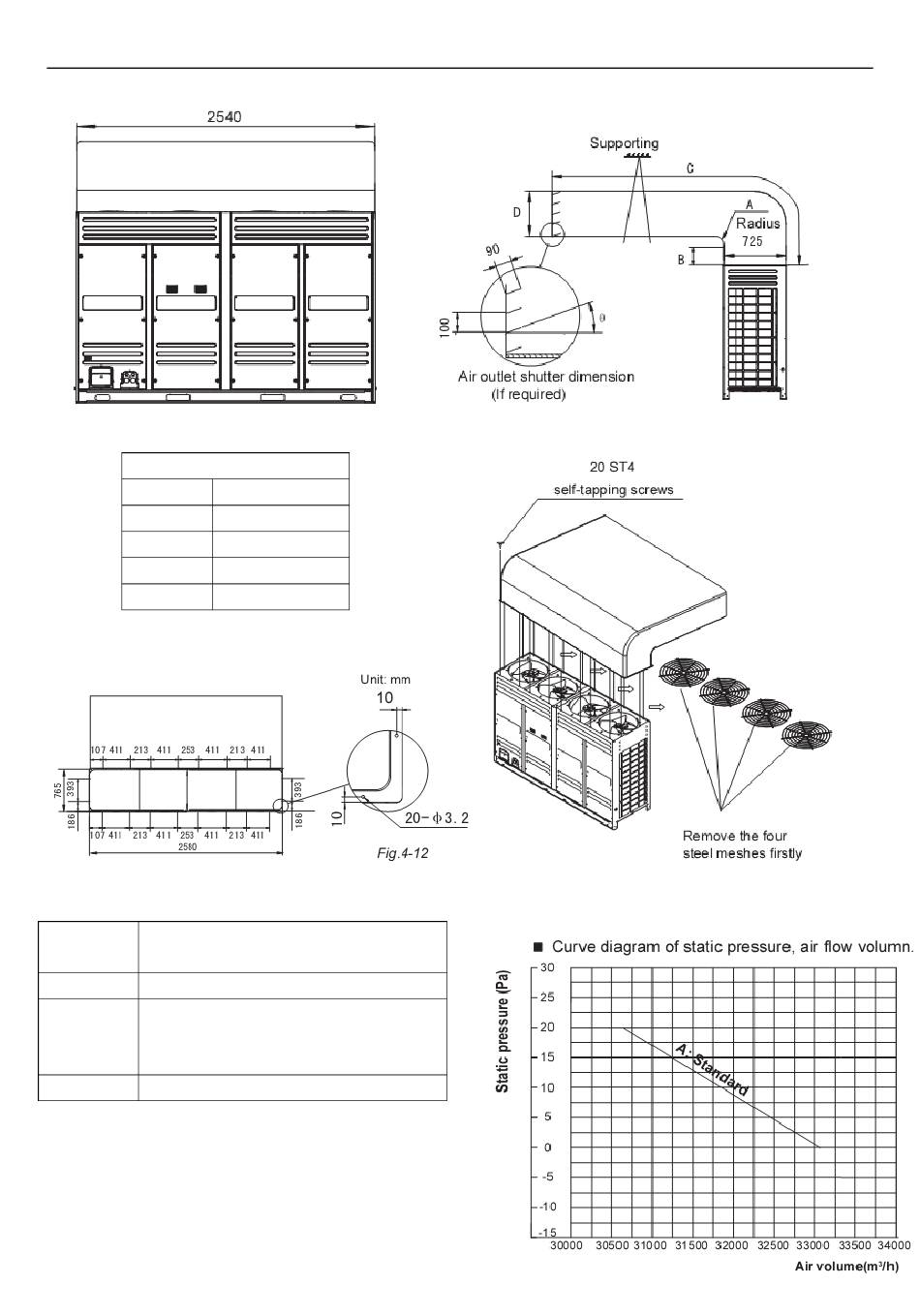

Curve diagram of static pressure & air flow volume.
