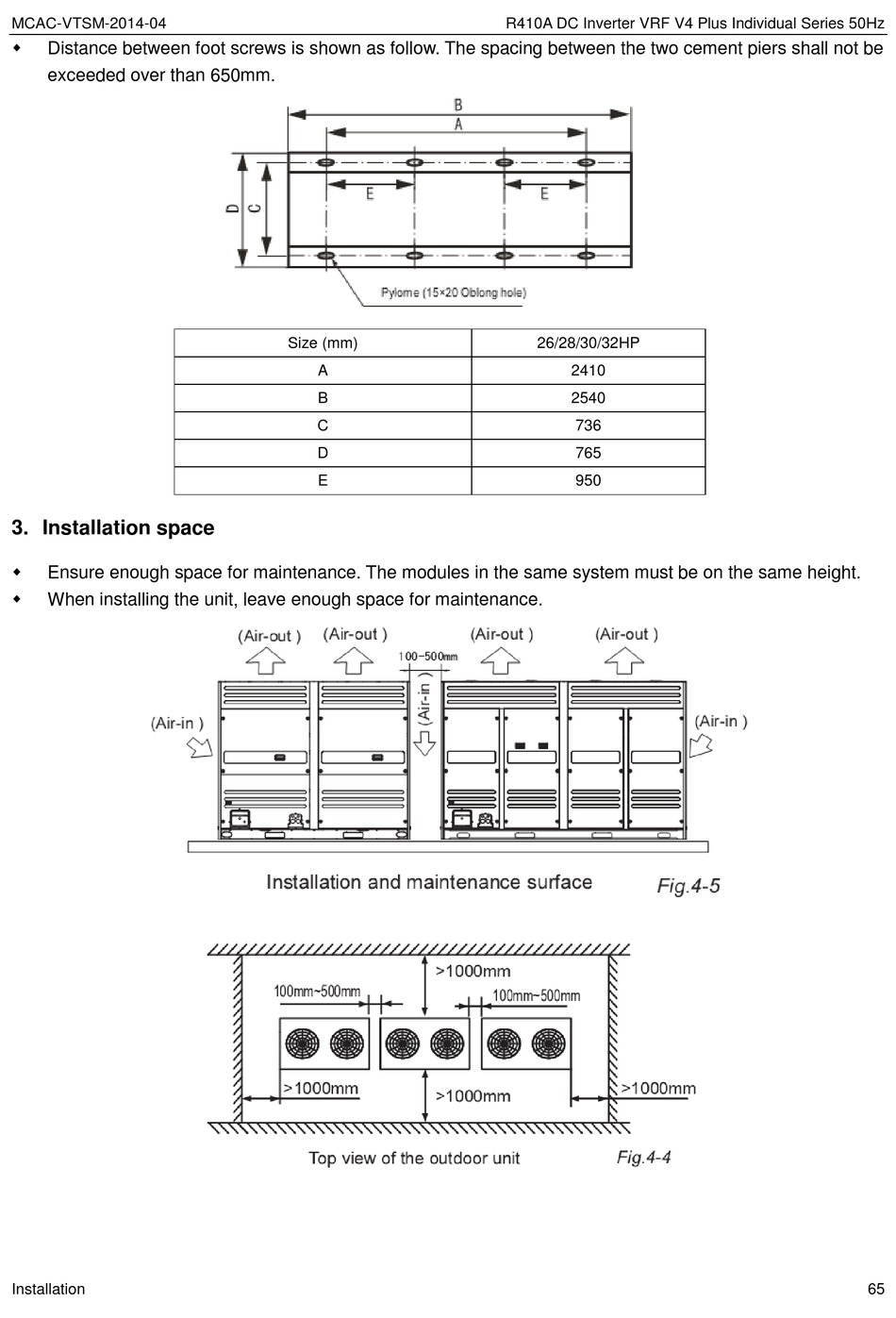

Distance between foot screws is shown as follow. The spacing between the two cement piers shall not be
exceeded over than 650mm.
3. Installation space
Ensure enough space for maintenance. The modules in the same system must be on the same height.
When installing the unit, leave enough space for maintenance.
Installation
Size (mm)
A
B
C
D
E
R410A DC Inverter VRF V4 Plus Individual Series 50Hz
26/28/30/32HP
2410
2540
736
765
950
65
