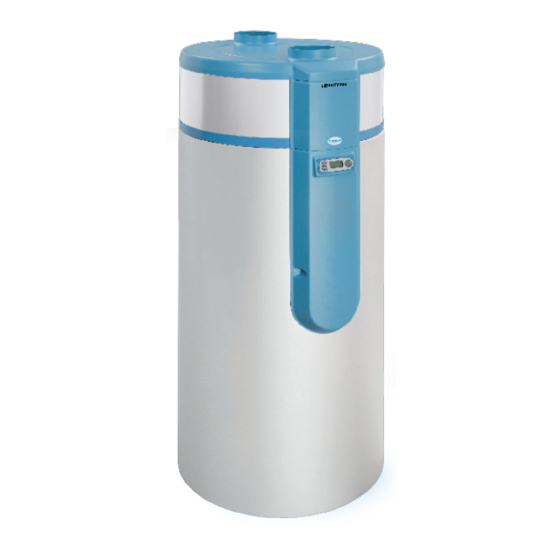

Technibel Liberty 300 Installation And Operating Instructions Manual

Domestic hot water heat pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

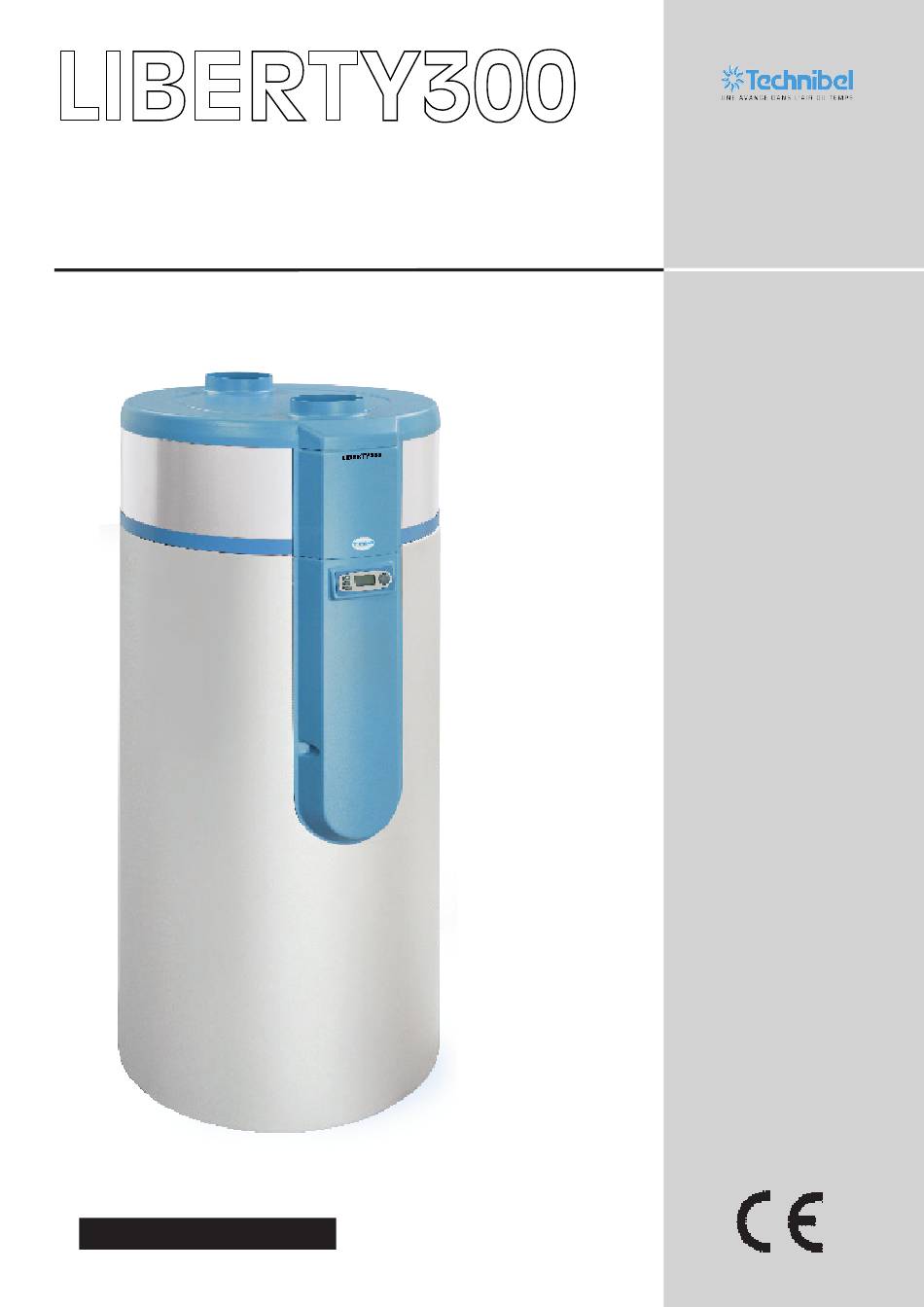

LIBERTY300
Domestic hot water heat pump
Installation and Operating Instructions
Made in
FRANCE
Référence 10.12.199 GB 01
The information within this document is not contractual, we reserve the right to modify without warning the technical characteristics and the equipment of all appliances.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liberty 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Technibel Liberty 300

Summary of Contents for Technibel Liberty 300

  • Page 1 LIBERTY300 Domestic hot water heat pump Installation and Operating Instructions Made in FRANCE Référence 10.12.199 GB 01 The information within this document is not contractual, we reserve the right to modify without warning the technical characteristics and the equipment of all appliances.

  • Page 2: Table Of Contents

    SUMMARY 1 - RECOMMENDATIONS ................4 Storage and transport ....................4 2 - INSTALLATION ..................5 2.1 Dimensions ......................5 2.2 - Placement ......................5 2.2.1 - Air Intake ..............................5 2.2.2 - Positioning ............................. 5 2.3 - Installation with air duct ..................6 2.4 - Air duct sizing ......................
  • Page 3 4 - MAINTENANCE AND REPAIR ............15 4.1 - Water circuit / condensate draining ..............15 4.2 - Air intake circuit ....................15 4.3 - Anti-corrosion anode ..................15 4.4 - Troubleshooting ....................16 4.5 - N.T.C. Sensors characteristics ................16 4.6 - Error codes ......................

  • Page 4: Recommendations

    1 - RECOMMENDATIONS - The cover of this device must never be used for carrying or handling and is not designed for this purpose. - Rinse piping before connecting the device to the domestic hydraulic system. - This device only functions when filled with water. Never activate the device unless the tank is completely full and properly primed.

  • Page 5: Installation

    2 - INSTALLATION 2.1 Dimensions 2.2 - Placement 2.2.1 - Air Intake To be considered when choosing the final placement: • D.W.H.P must not be installed outdoor • D.W.H.P must be installed in a room outdoor from frost. Also, the temperature of the air taken in must range between -5°C and 35°C.

  • Page 6: Installation With Air Duct

    2.3 - Installation with air duct In cases of connection with ducts, it is necessary to set the ventilation speed 2 (see section “PAR.06 – Ventilation speed”) Outdoor air Heated or unheated room 0,5 m mini 2 m mini 2.4 - Air duct sizing The connection of D.W.H.P must be done using insulated air ducts of a nominal diameter of 160mm.
  • Page 7 In consequence, the connection of the device to the copper piping of the domestic hot water should ALWAYS be carried out via a cast iron fitting, or steel, or with the help of dielectric connections (not included) which will help to avoid any iron/copper galvanic bridge. •...

  • Page 8: Condensate Line Connections

    2.6 - Condensate line connections • the condensate tube must run-off into open air before entering the siphon, • do not attach it to a boot, • no not bend he tube, • keep the tube vertical and open toward the bottom. 2.7 - Electrical connections The electrical supply must conform the current rules of the country of installation.

  • Page 9: Ventilation Controled

    2.7.2 Ventilation controled D.W.H.P can be used to permanently ventilate a room . This ventilation can be used to renew the air. In this case, the connection of a humidity sensor (entry 2) allows to activate the operation of the ventilator in function to the ambiant humidity.

  • Page 10: Language Setting

    3.2 - Language setting • Direct access by pressing the Menu button. • Turn the dial to scroll through the menu choices: LANGUE LANGUE enter choice of language • Press «Menu» to escape 3.3 - Program To program autorization hours for heat pump, press the Clock button and keep press during 3 seconds.

  • Page 11: Time Setting

    3.4 - Time setting • Direct access by pressing “Clock settings”. 26/09 /1 2 -- /09 /1 2 26/-- /1 2 17: 32 17: 32 17: 32 Day setting Month setting 26/09 /-- MONDAY MONDAY -- : 32 17: 32 17:-- year setting hour setting...

  • Page 12: Boost Function (For Better Comfort)

    3.7 - BOOST function (for better comfort) The “BOOST” function is a temporary forcing of the electrical backup and the heat pump, simultaneously, to accelerate the raising of temperature on a heat cycle. The spark “electrical backup” symbol blinks. • Direct access by pressing the Menu button. •...

  • Page 13: Par. 01 -Heating Mode

    PAR. 01 3.8.1.1 - -Heating mode Parameter 1 is the setting of the heating mode : Heat pump or electric heater operation in heat pump mode (Initial setting) PAR. 01 = 6 operation in electrical heater mode PAR. 04 3.8.1.2 - - Anti-legionellosis cycle Parameter 04 allows the set the interval between two anti-legionellosis cycles.

  • Page 14: Par.1 0 -Comfort Function / Minimum Temperature

    PAR.1 0 3.8.1.6 - -Comfort function / Minimum temperature It is possible to authorise the operation of the electrical backup at the same time at the heat pump to make sure the water temperature does not drop below a minimal comfort level of 38°C. The electrical backup will activate in order to raise the water temperature to 43°C and will stop and the heat pump will finish completely heating the tank.

  • Page 15: Maintenance And Repair

    4 - MAINTENANCE AND REPAIR To maintain performance, it is recommended to have the device inspected by a qualified person every two years. • All intervention on the refrigerating circuit must be done by a qualified person with a category 1 certificate of aptitude. •...

  • Page 16: Troubleshooting

    4.4 - Troubleshooting • The heat pump does not work Verify that : • Temperature setting is higher than the water temperature in the tank. • The device has the proper power supply and that the polarity is respected: Phase on brown wire Neutral on blue wire Ground on green / yellow wire •...

  • Page 17: Error Codes

    4.6 - Error codes To reset error, press the dial one time.

  • Page 18: Parts List

    4.7 - Parts list...
  • Page 19 1XPEHU 5HIHUHQFH 'HVLJQDWLRQ % 6+87 2)) 9$/9( % +3 6:,7&+ % (9$325$725 % ),/7(5 '5<(5 % '()5267,1* 6(1625 $1' $,5 7(03(5$785( 6(1625 % :$7(5 7$1. 6(1625  PP % &$3$&,725 —) % 5(6,67$1&( % &$3$&,725 —) % 67$57,1* &$3$&,725 % (/(&75,&...

  • Page 20: Warranty

    5 - WARRANTY The warranty covers: • The tank is warranted against break through for a period of five (5) years starting from the date of activation of the warranty voucher is returned to the manufacturer, or, in the absence of this document, from the fabrication date of the device.

  • Page 21: Handling

    5.1.2.2 - Handling Cases (non-limited) for voiding of warranty: • Diverse damages caused by shock or falling during handling after delivery from the factory. • Deterioration of the device caused by handling which does not conform to the instructions in the manual.

  • Page 22: Appendix

    6 - APPENDIX 6.1 - characteristics ':+3 ':+3 ':+3 ':+3 %RG\ FRYHU 39&   PP 3( ILOP ,QVXODWLRQ  PP 38 IRDP 1RPLQDO YROXPH / 0DWHULDOV (QDPHOOHG VWHHO 3URWHFWLRQ 0DJQHVLXP DQRGH 0D[LPXP SUHVVXUH RI VHUYLFH ZDWHU WDQN 03D 'LPHQVLRQV ‘...

  • Page 23: Electrical Schematic

    6.2 - Electrical schematic Fig. 7-2 HP : High-pressure switch C1 : Start-up capacitor for compressor C2 : Ventilator 2μF capacitor C3 : Ventilator 3μF capacitor 1MΩ resistance for ventilator RC : Compressor contactor Ventilator Compressor EV : Solenoid valve RE : 1500W electrical resistance LTS :...

  • Page 24: Cabling Schematic

    6.3 - Cabling schematic DoMEstIC Hot WatER HEat PuMP - nstallatIon anual...
  • Page 25 Fig. 7-3 HP : High-pressure switch C1 : Start-up capacitor for compressor C2 : Ventilator 2μF capacitor C3 : Ventilator 3μF capacitor 1MΩ resistance for ventilator RC : Compressor contactor Ventilator Compressor EV : Solenoid valve RE : 1500W electrical resistance LTS : Security limiter thermostat of the electrical backup...

  • Page 26: Performance Curves

    6.4 - Performance curves The performance is measured with a standard heating cycle with 15°C cold water. 6.4.1 - C.O.P . Evolution This curve represents the C.O.P . (coefficient of performance) of different air and water temperature. water 45°C eau 45°C eau 60°C water 60°C température d'air (°C)

  • Page 27: Maintenance Log

    6.5 - Maintenance log R134a is a greenhouse gas relevant to the Kyoto Protocol. All intervention on the refrigerating circuit must be done by a qualified person with a category 1 certificate of aptitude. The degassing of the refrigerating fluid into the atmosphere is not permitted, the recovery of the refrigerant is obligatory before any intervention on the circuit.
  • Page 28 Zone Industriel RD28 BP131 Reyrieux 01601 TREVOUX Tél. (33) 04 74 00 92 92 Fax (33) 04 74 00 42 00 http://www.technibel.com B1871888 - 12.052...
