- Page 1 Conserver ce mode d’emploi Save these instructions Conservate queste istruzioni Guarde estas instrucciones Bewahren Sie bitte diese Bedienungsanleitung auf Guarde estas instruções MODE D’EMPLOI INSTRUCTION MANUAL ISTRUZIONI PER L’USO MANUAL DE INSTRUCCIONES BEDIENUNGSANLEITUNG MANUAL DE INSTRUÇÕES SYSTÈMES DE CHAUFFAGE / CLIMATISATION AVEC POMPE À CHALEUR INVERTER ET CHAUFFAGE ÉLECTRIQUE D’APPOINT INTÉGRÉ...
-
Page 2: Table Of Contents
CONTENTS 1 - Installation location ........3 2 - Electrical power supply instructions . -
Page 3: Installation Location
ALERT SYMBOLS The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance: This symbol refers to a hazard or unsafe practice which can result in WARNING severe personal injury or death. This symbol refers to a hazard or unsafe practice which can result in CAUTION personal injury or product or property damage. -
Page 4: Safety Instructions
3 - SAFETY INSTRUCTIONS • Carefully read these instructions thoroughly before operating the system. If you still have any difficulties or problems, consult the After-Sales Service Department. • The system is designed to create a comfortable environment in your home. Use this only for its intended purpose as described in this Instruction Manual. -
Page 5: Presentation Of Main Elements
4 - PRESENTATION OF MAIN ELEMENTS 2-zone hydraulic Domestic Hot Water Heat pump Control unit module (DHW) production tank (if installed) (if installed) Installed inside the home Installed in a sheltered Installed in a sheltered Installed outside within the unit's operating and frost protection and frost protection the home... -

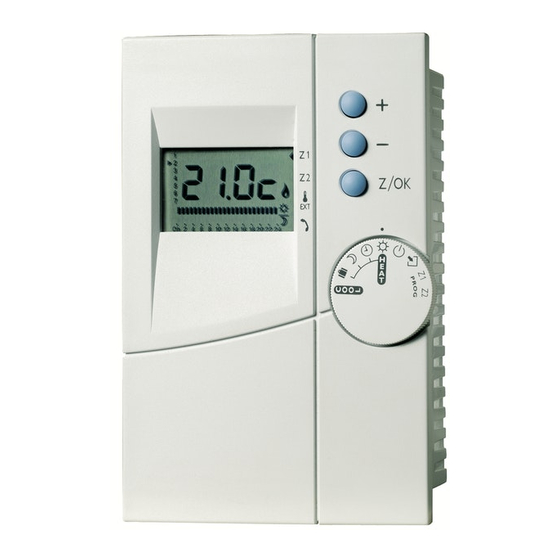

Page 6: Control Unit Operation
6 - CONTROL UNIT OPERATION Current program : Comfort, : Economy) Comfort override activated Current day Supplementary heating only Temperatures Display zone 1, zone 2 (if any) or outside temperature Modification or override keys Validation or zone change key Button selection mark Electric supplementary heating ON DHW cycle in duty (if any) Economy... - Page 7 6.3 - HEATING MODE 6.3.1 - Comfort mode The setting mode is exited after 5 seconds if no key is pressed. 0h 2 4 6 8 10 12 14 16 18 20 22 24 0h 2 4 6 8 10 12 14 16 18 20 22 24 Set the new Comfort Set the the Comfort...
- Page 8 6.4 - DOMESTIC HOT WATER PREPARATION (DHW) If installed - Activated according to the type of installation • Available on installations 1 zone heating only (No cooling). • Function activated during installation. Actuates the heat pump, in a cyclic way, for an adapted DHW preparation tank pre-heating.
- Page 9 6.8 - PARAMETERISATION 1 : User 2 : Installer From any knob position, simultaneously press and hold keys for 5 seconds, until the screen displays PArA, then select User / Installer menu. To move from the user menu to the installer menu, press Simultaneously press and hold the keys...
- Page 10 6.9 - ALARMS If an alarm message appears, contact the After-Sales Service. The unit Heat pump fault. Automatic or manual reset (**). displays: In heating mode, the heat pump fault causes the installation to switch to Frost Protection mode. It is possible to restart in heating mode by pressing and holding OK.
-
Page 11: Maintenance And Troubleshooting
7 - MAINTENANCE AND TROUBLESHOOTING • A yearly verification (or during a restart) is to be performed by an approved technical service centre. • Cleaning. 1. Be safe! Turn the unit off and disconnect the electric power supplies. WARNING 2. Do not pour water on the apparatus to clean them. This will damage the internal components and cause an electric shock hazard. -
Page 12: Troubleshooting
8 - TROUBLESHOOTING PROBLEM POSSIBLE CAUSE ACTION The control unit is Power supply circuit breaker has tripped (open). Contact the After-Sales turned off. Service Department. Problem in the heat pump's control circuit. Contact the After-Sales Service Department. The system does not The function switch is set to "OFF". -
Page 13: Gb 9 - System Operating Recommendations
9 - SYSTEM OPERATING RECOMMENDATIONS • Make sure that doors and windows are correctly closed. • Correctly set the temperature setpoints to the desired values. Each additional degree of heating (or cooling) results in a significant increase in energy consumption. •... - Page 15 REMARQUE : Ce symbole et ce système de recyclage s'appliquent uniquement aux pays de l’UE. Ils ne s'appliquent pas aux pays des autres régions du monde. NOTE: This symbol mark and recycle system are applied only to EU countries and not applied to the countries in the other area of the world.
- Page 16 Par souci d'amélioration constante, nos produits peuvent être modifiés sans préavis. Due to our policy of continuous development, our products are liable to modification without notice. Per garantire un costante miglioramento dei nostri prodotti, ci riserviamo di modificarli senza preaviso. En el interés de mejoras constantes, nuestros productos pueden modificarse sin aviso prévio.
