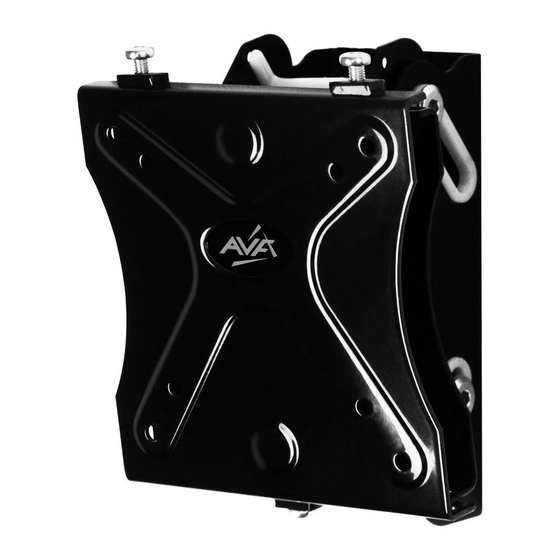

NUL201
Leaflet No. 464048
rev00
Read through ALL instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services help line before returning this product to
the store.
Visit http://te.avf.co.uk/p/nul201 for more information.
32"
CUSTOMER SERVICES HELP LINE NUMBER:
55lbs
01952 670009
81cm
25kg
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Related Manuals for AVF Group NUL201
Summary of Contents for AVF Group NUL201
- Page 1 STOP contact the customer services help line before returning this product to the store. Visit http://te.avf.co.uk/p/nul201 for more information. 32" CUSTOMER SERVICES HELP LINE NUMBER: 55lbs 01952 670009 81cm 25kg AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
- Page 2 Assembly Overview Fit the TV Mounting Plate Fit the Wall Bracket Attach the TV...
- Page 3 Index Measure the TV fixing holes Width and Height Preparing the TV Mounting Plate Fitting the TV Mounting Plate Fitting the Wall Bracket Attach the TV Retain all packaging in case the bracket needs to be returned. Contents may vary from photography/ Illustrations. You will not need all these parts, so expect there to be some left over depending upon the specification of your TV.
-
Page 4: Tools Recommended
Tools Recommended Stud Finder Ø10mm (25/64") Ø3mm (1/8") Masonry Wood Boxed Parts... - Page 5 TV Screws and Reducers...
- Page 6 Measure the TV fixing holes Width and Height TV Fixing Holes 75 - 200mm 75 - 200mm If width X is greater than 200mm or height Y greater than 200mm STOP installation now and contact the customer help line You are provided with 4 diameters of TV fixing screws, M4, M5, M6 and M8.
- Page 7 Preparing the TV Mounting Plate Use the option that fits your TV OPTION 1 OPTION 2 TV Fixing Hole Sizes TV Fixing Hole Sizes 75mm 75mm 200mm 100mm - 200mm 100mm 100mm If in any doubt please call the customer help line. OPTION 1 75mm 100mm...
- Page 8 OPTION 2 100 - 200 mm 200mm...
- Page 9 Fitting the TV Mounting Plate OPTION 1 OPTION 2 Screw diameter dependant Attach the bracket to the back of your TV using suitable screw, and reducer combinations. WARNING steel washers not included After completing step 3 you will have fittings left over, please keep for future reference...
- Page 12 Attach the TV Attaching TV Levelling Optional Lock Tilt...
