1. RTL8762C Evaluation Board Introduction

1.1 RTL8762C EVB introduction

This document introduces usage of 8762C Bluetooth
hardware environment for customer to develop their own application, which includes:
Voltage converter.
1.
6-axis motion sensor.
2.
4 LEDs and 6 keys.
3.
Button battery and Li-ion battery holder.
4.
USB to UART converter (FT232RL).
5.

1.2 Evaluation Board Interface

1.2.1 Interface Description

Distribution of EVB block and interface is shown in Figure 1-1 and Figure 1-2.
6
Copyright 2018 Realtek Semiconductor Corporation.
All Rights Reserved.
RTL8762C Evaluation Board User Manual
®
Evaluation Board (EVB) Hardware. 8762C EVB provides

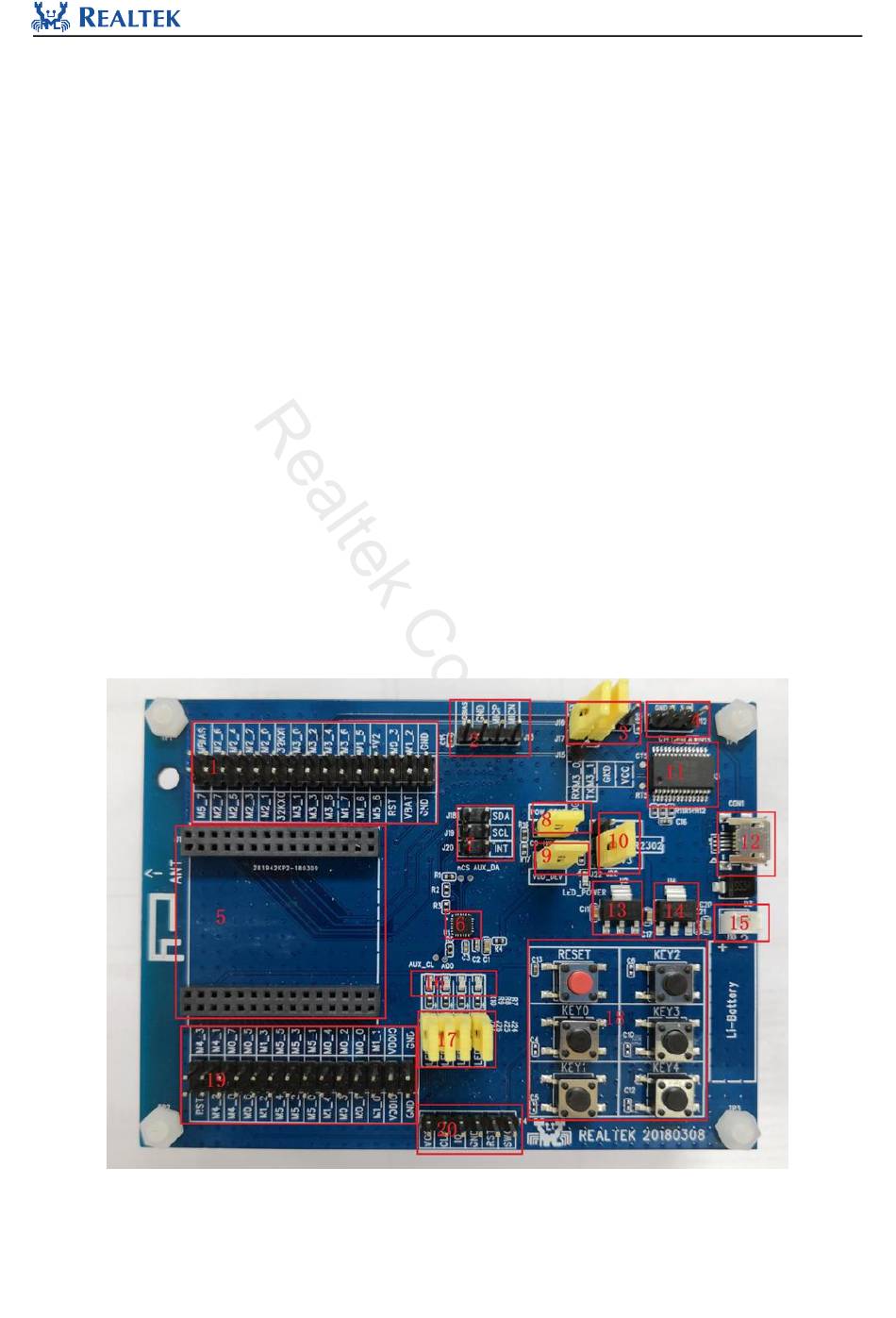

Figure 1-1 EVB Interface Block Diagram
