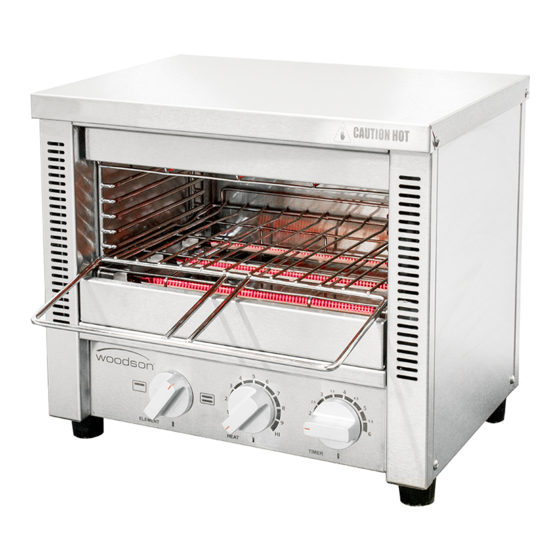

Woodson W.GTQI.4 Specification, Installation And Operation Manual
Toaster grillers & supertoast multi-function toaster grillers
Hide thumbs
Also See for W.GTQI.4:
Table of Contents
Advertisement
Specification, Installation
Woodson Toaster Grillers
& Supertoast Multi-Function Toaster Grillers
W.GTQI.4, W.GTQI.8, W.GTQI.15, W.GTSQI.15, W.GTQI8S.10 &
A guide on the use, care and maintenance
of your quality Woodson Starline product
Rev: B - 27/07/2018
and Operation Manual
Models:
W.GTQI8S.15
Phone: 0800 503 335
Spare Parts: 0800 503 503
www.southernhospitality.co.nz
Advertisement
Table of Contents
Related Manuals for Woodson W.GTQI.4
Summary of Contents for Woodson W.GTQI.4

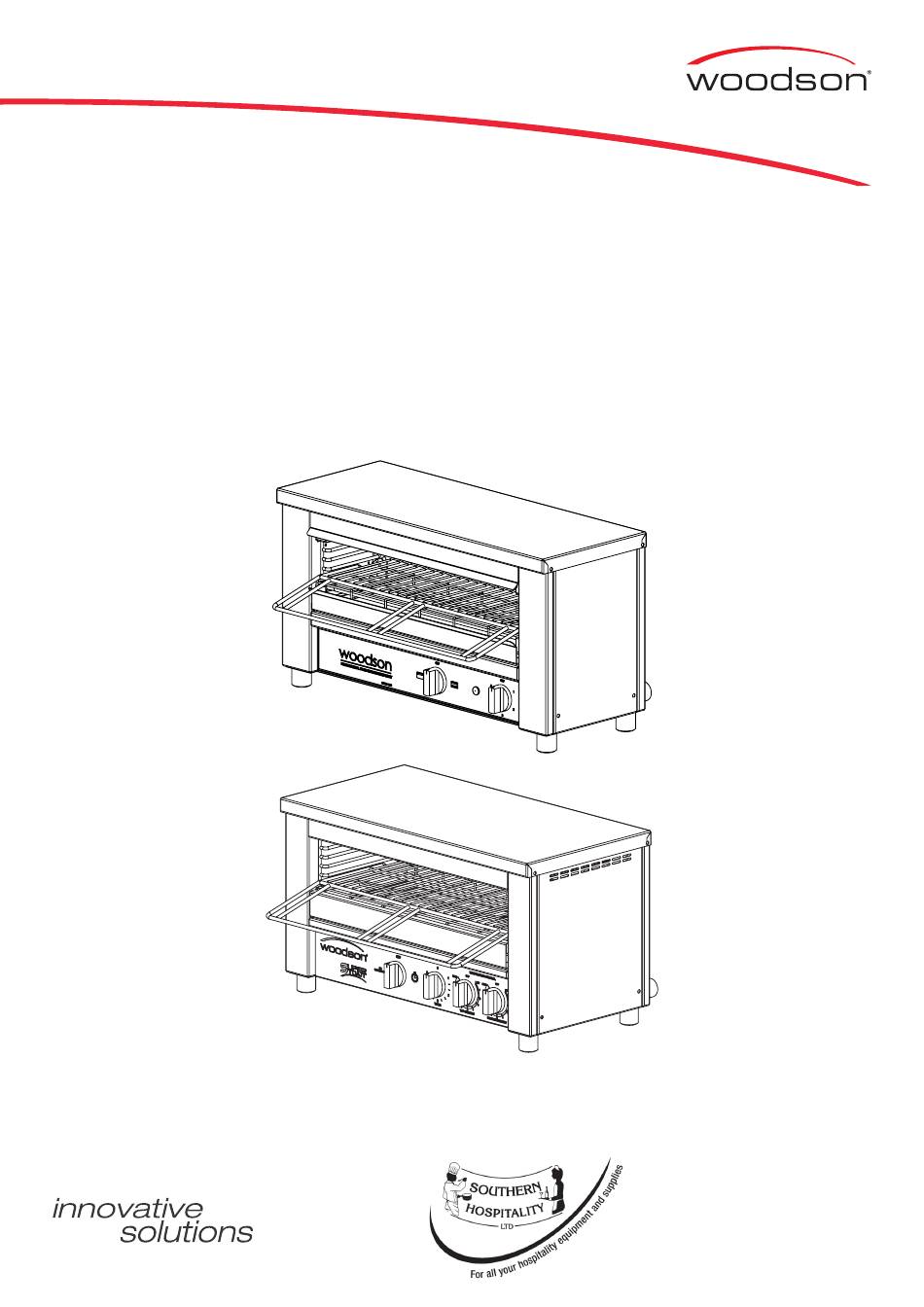

- Page 1 Specification, Installation and Operation Manual Woodson Toaster Grillers & Supertoast Multi-Function Toaster Grillers Models: W.GTQI.4, W.GTQI.8, W.GTQI.15, W.GTSQI.15, W.GTQI8S.10 & W.GTQI8S.15 A guide on the use, care and maintenance of your quality Woodson Starline product Phone: 0800 503 335 Spare Parts: 0800 503 503 Rev: B - 27/07/2018 www.southernhospitality.co.nz...
- Page 2 Page Intentionally Left Blank Page 1...
-
Page 3: Table Of Contents
Your New Woodson Product: � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... -
Page 4: Introduction
Your New Woodson Product: Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals� By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of reliable service�... -
Page 5: Introduction
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on hand in a safe place for future reference by other operators or users� Disclaimer The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units or others, due to abuse and misuse of this unit in regards to installation, un-installation, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation�... -
Page 6: Installation
Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit: eg� A lift truck or fork pallet trucks (the forks should reach more completely beneath the unit) Unpacking •... -
Page 7: Electrical Connection
Installation Electrical Connection WARNING This unit must be installed in accordance with AS/NZS 60335.1 Information Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual� Single Phase Units: Supplied with an appropriately rated plug and lead fi tted and be indicated as: •... -
Page 8: Specification
Specification Technical Specifications W.GTQI.4 Specifications Model W.GTQI.4 Height 335mm Width 615mm Depth 360mm Power 2.2kW AMPS 10A plug & lead fitted Page 7... -
Page 9: W.gtqi.8
Specification W.GTQI.8 Specifications Model W.GTQI.8 Height 375mm Width 615mm Depth 436mm Power 3.3kW AMPS 15A plug & lead fitted Page 8... -
Page 10: Operation
Operation Operating Instructions First Time Operation (W.GTQI.4, W.GTQI.8, W.GTQI.15 & W.GTSQI.15) Upon using your equipment, the following steps must be followed: 1� Adjust the rack height to suit the product Turn the “Control Knob” dial left or right to select the mode of operation: 2�... - Page 11 Operation First Time Operation (W.GTQI8S.10 & W.GTQI8S.15) Upon using your equipment, the following steps must be followed: 1� Turn the unit on at the “Power Switch”� 2� Prepare food item� Set the “Top Element” and “Bottom Element” to 5� 3� Set “Timer”...
-
Page 12: Cleaning
Operation Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •... - Page 13 Operation Cleaning Schedule • Daily cleaning is required for toaster grillers, and external surfaces� This will help to maintain and prolong the efficiency of your unit • The grill plate should be kept clean at all times, free from carbon and burnt materials •...
-
Page 14: Troubleshooting
Operation Troubleshooting WARNING Technician tasks are only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes Task Possible Corrective Action Unit is not plugged into a Unit won’t turn on Plug unit in suitable power point... - Page 15 Page 14...
