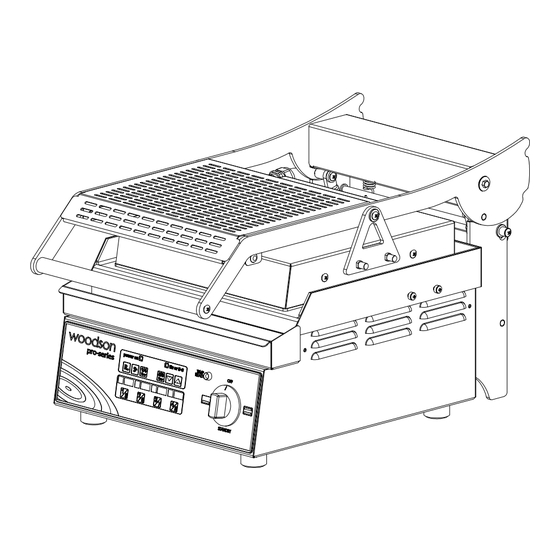

WOODSON CONTACT TOASTER
Stainless steel platens ensure hygiene, durability and even temperature performance
Single large top plate (300 x 300mm) and one large bottom plate (345 x 310mm)
One piece Stainless Steel cooking surface with a turn up on 3 sides
Ensures gentle and even pressure for optimal toasting
Eight programmable timer settings with one touch operation to achieve consistent results
Easy-clean PVC coated smooth metal conduit to route cables to upper cooking plate
4 position rotary switch allowing selection of 4 modes - Off, Top and Bottom platen, Standby and
Bottom platen only
No hidden crevices for food accumulation – extremely easy to clean
Easily removable heat shield that clips on and off, no tools required to remove
All stainless steel body construction
Manufactured by:
Tom Stoddart Pty Ltd
39 Forest Way, Karawatha, QLD, 4117
Ph: 07 3440 7600 (int +61 7 3440 7600)
Fax: 07 3344 1000 (int +61 7 3344 1000)
Due to continuous product research and development, the information contained herein is subject to change without notice
Model W.GPC61SC
FEATURES
Tel: 1300 79 1954 Web: www.stoddart.com.au
Page 1 of 23
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
INSTALLATION, OPERATION & MAINTENANCE
Woodson Contact Toaster –W.GPC61SC
Email: fse@stoddart.com.au
Advertisement
Table of Contents
Related Manuals for Woodson W.GPC61SC
Summary of Contents for Woodson W.GPC61SC

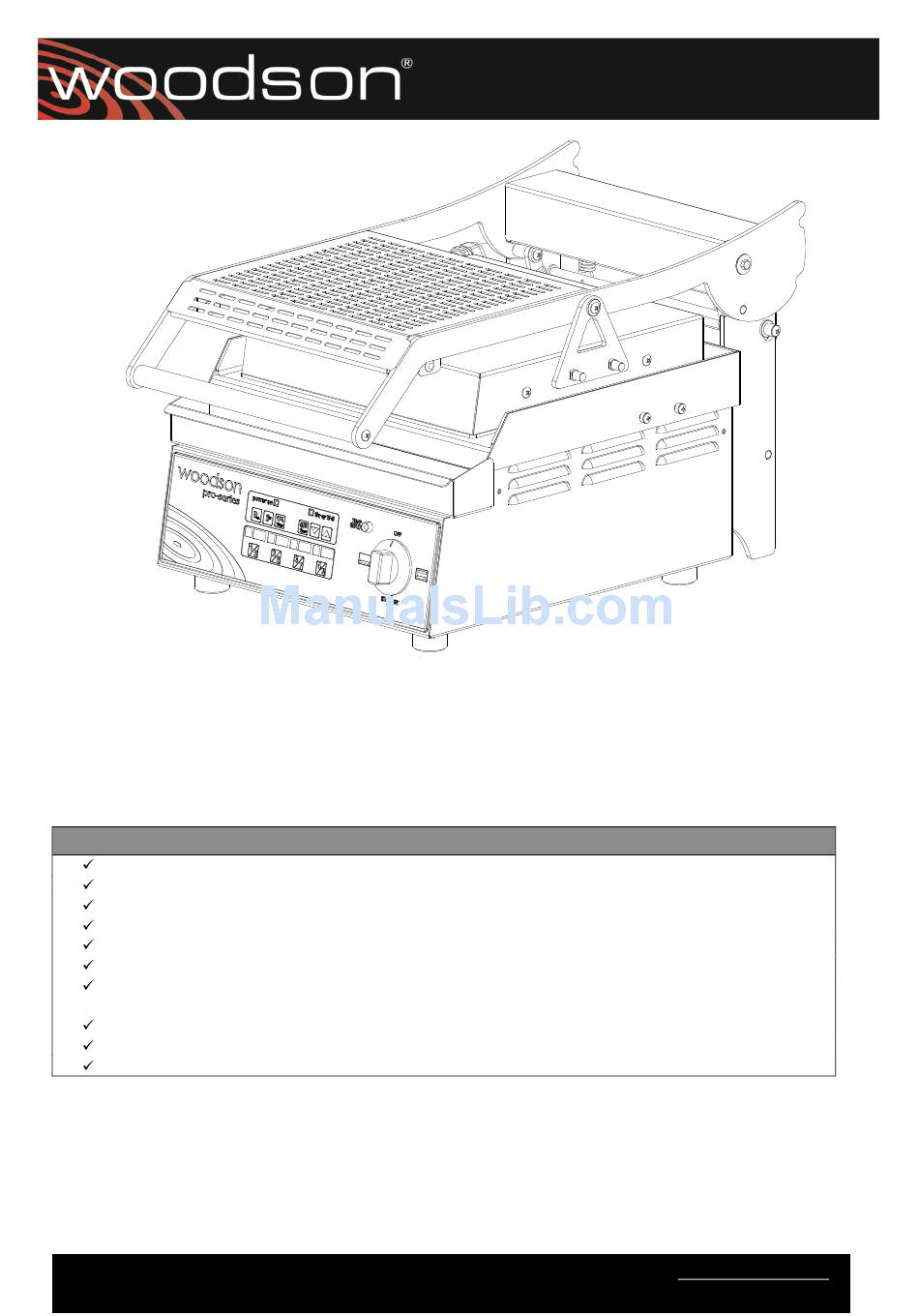

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC WOODSON CONTACT TOASTER Model W.GPC61SC FEATURES Stainless steel platens ensure hygiene, durability and even temperature performance Single large top plate (300 x 300mm) and one large bottom plate (345 x 310mm)
-
Page 2: Table Of Contents
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Table of Contents General Recommendations ............................3 General Safety..............................3 Service ............................3 Sharp Edges...........................3 Power Cables ..........................3 Introduction ..............................4 Product Overview ...........................4 Specifications ...............................5... -
Page 3: General Recommendations
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC General Recommendations ATTENTION Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians. -
Page 4: Introduction
Woodson Contact Toaster –W.GPC61SC Introduction The Woodson Pro Series Contact Toaster has been specifically designed to meet the rigorous demands of a busy food service operation. Each Woodson Pro Series Contact Toaster has been assembled and tested according to Stoddart Manufacturing strict quality standards. -
Page 5: Specifications
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Specifications Technical Specifications SPECIFICATIONS Model W.GPC61SC Height 331mm (closed) 765mm (open) Width 365mm Depth 578mm Voltage 240v Power 2200W Current... -
Page 6: Technical/Connection Diagram
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Technical/Connection Diagram PLAN VIEW FRONT VIEW SIDE VIEW Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au... -
Page 7: Rating Plate
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Rating Plate The rating plate of the appliance contains identification and technical data and is located on the unit as shown below. W.GPC61SC... -
Page 8: Installation
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Installation General Precautions Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installation, maintenance or •... -
Page 9: Setting Up
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Setting Up Handling Use suitable means to move the appliance: e.g. a lift truck or fork pallet trucks (the forks should •... -
Page 10: Electrical Connection
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Electrical Connection WARNING! This machine must be installed in accordance with AS/NZS 60335.1 Information The machine is supplied with a plug and lead (10A). -
Page 11: Operation
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Operation General Recommendations When using any electrical appliance, safety precautions should always be observed. Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the purpose for which it has been designed. -
Page 12: Operating Instructions
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Operating Instructions Power on light Timer buttons Temperature ready light Visually check the toaster is clean, in good repair and safe. -
Page 13: Setting The Timers
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Setting the Timers The Control panel has 4 timers located along the front of the control panel. The displays indicate the pre- •... -
Page 14: Temperature Adjustment
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Temperature Adjustment IMPORTANT! The temperature can only be adjusted after the toaster has been turned on and allowed to operate through 2-3 cycles. -
Page 15: External Surfaces
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC External Surfaces Clean the stainless steel and metal parts with warm (not hot) soapy water and a sponge. • Rinse the stainless steel and metal parts with clean, fresh water. -
Page 16: Stainless Steel Protection
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Stainless Steel Protection Cleaning For cleaning a stain on the surface of the stainless steel, check the cleaning section of the operation manual. -
Page 17: Water Damage
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Water Damage Information Water damage to the electrical and mechanical parts of unit can occur through incorrect cleaning of this unit •... -
Page 18: Replacements
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Replacements Electronic Controller, Temperature Probe The electronic controller and temperature probe can be replaced by the manufacturer. • Both MUST be replaced by a qualified technician. -
Page 19: Electrical Diagrams
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Electrical Diagrams MODEL: W.GPC61SC MODEL: WGPC61SC THERMAL FUSES TIMER MODULE ROTARY SWITCH PILOT LIGHT STANDBY TEMP THERMOSTAT COOK TEMP THERMOSTAT... -
Page 20: Spare Parts/ Assembly Diagram
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC Spare Parts/ Assembly Diagram ITEM NO. PART NUMBER Spare Parts Description Spare Parts QTY. CMDE-0007 Decal CMEL-0308 Terminal Block CMEL-0336... -
Page 21: Warranty
Warranty Appendix 1 – Australian Warranty and Importer/Distributor Contact Details As the exclusive manufacturer and distributor of Woodson products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of a Woodson product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose. - Page 22 INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE INSTALLATION, OPERATION & MAINTENANCE Woodson Contact Toaster –W.GPC61SC (viii) Additional labour costs will apply for service outside standard business hours of 8.00am to 4:30pm, Monday to Friday and on public holidays; (ix) Stoddart cannot guarantee the performance of equipment made specifically to Customer's design or specifications. Stoddart will,...
-
Page 23: Warranty Request Form
WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 1000 Int: +617 3344 1000 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information.
