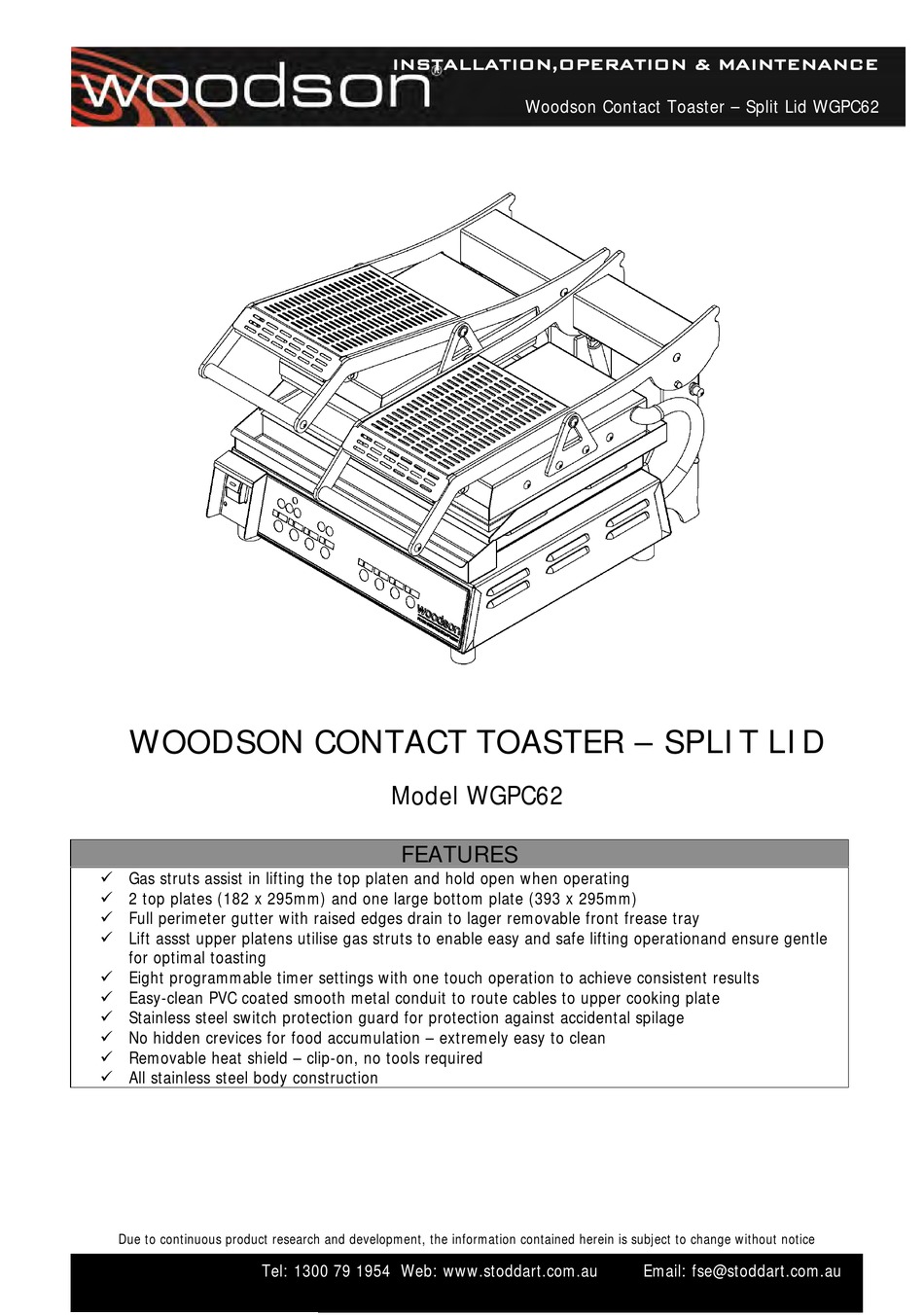

WOODSON CONTACT TOASTER – SPLIT LID
Gas struts assist in lifting the top platen and hold open when operating
2 top plates (182 x 295mm) and one large bottom plate (393 x 295mm)
Full perimeter gutter with raised edges drain to lager removable front frease tray
Lift assst upper platens utilise gas struts to enable easy and safe lifting operationand ensure gentle
for optimal toasting
Eight programmable timer settings with one touch operation to achieve consistent results
Easy-clean PVC coated smooth metal conduit to route cables to upper cooking plate
Stainless steel switch protection guard for protection against accidental spilage
No hidden crevices for food accumulation – extremely easy to clean
Removable heat shield – clip-on, no tools required
All stainless steel body construction
Due to continuous product research and development, the information contained herein is subject to change without notice
Tel: 1300 79 1954 Web: www.stoddart.com.au
INSTALLATION,OPERATION & MAINTENANCE
Woodson Contact Toaster – Split Lid WGPC62
Model WGPC62
FEATURES
Email: fse@stoddart.com.au
Advertisement
Table of Contents
Related Manuals for Woodson WGPC62
Summary of Contents for Woodson WGPC62
- Page 1 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 WOODSON CONTACT TOASTER – SPLIT LID Model WGPC62 FEATURES Gas struts assist in lifting the top platen and hold open when operating 2 top plates (182 x 295mm) and one large bottom plate (393 x 295mm) Full perimeter gutter with raised edges drain to lager removable front frease tray...
-
Page 3: Table Of Contents
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Table of Contents General Recommendations ................3 Specifications........................4 Technical Specifications ..................4 Technical/Connection Diagram ................5 Rating Plate ......................6 Installation .......................7 General Precautions ......................7 Setting Up ........................8 Handling......................8 Site Preparation ....................8 Unpacking ......................8 First Time Operation.....................8... - Page 4 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Mechanical Parts ....................21 Servicing and Replacement Information Line ..............21 Troubleshooting....................22 Electrical Diagrams ..................23 Spare Parts/ Assembly Diagram ...............24 Warranty......................25 Appendix 1 – Australian Warranty and Importer/Distributor Contact Details ......25 Australian Warranty Policy &...
-
Page 5: General Recommendations
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 General Recommendations ATTENTION Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians. -
Page 6: Specifications
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Specifications Technical Specifications SPECIFICATIONS Model WGPC62 Height 331mm Width 455mm Depth 578mm Voltage 240v Power 2200W Current 10 A Connection 10A Lead and Plug (Supplied) Top 182mm x 295mm Plate Size... -
Page 7: Technical/Connection Diagram
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Technical/Connection Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 5... -
Page 8: Rating Plate
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Rating Plate The rating plate of the appliance contains identification and technical data and is located on the unit as shown below. Sample Only Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au... -
Page 9: Installation
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Installation General Precautions Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installation, maintenance or servicing this equipment ... -
Page 10: Setting Up
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Setting Up Handling Use suitable means to move the appliance: eg. A lift truck or fork pallet trucks (the forks should reach more than halfway beneath the appliance). Site Preparation ... -
Page 11: Electrical Connection
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Electrical Connection WARNING! This machine must be installed in accordance with AS/NZS 60335.1 Information The electrical supply shall comply with the rating plate data. The machine is supplied with a plug and lead (10A). -
Page 12: Operation
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Operation General Recommendations When using any electrical appliance, safety precautions should always be observed. Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the purpose for which it has been designed. -
Page 13: Introduction To Operation
Woodson Contact Toaster – Split Lid WGPC62 Introduction to Operation The Woodson Contact Toaster – Split Lid been specifically designed to meet the rigorous demands of a busy food service operation. Each Woodson Contact Toaster – Split Lid has been assembled and tested according to Stoddart’s strict quality standards. -
Page 14: Operating Instructions
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Operating Instructions 1. Visually check the toaster is clean, in good repair and safe. 2. Ensure that the top platen is in a closed position. 3. Turn the power switch to the “ON” position. The power “ON” indication light located on the control panel will be illuminated. - Page 15 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Replace the top platens back in to the down position when the product has been removed. Periodically check the crumb tray mounted at the front of the press toaster, to ensure it does not overflow.
-
Page 16: Setting The Timers
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Setting the Timers The Control panel has 8 timers located along the front of the control panel. The displays indicate the pre- programmed times in minutes and seconds. ... -
Page 17: Temperature Adjustment
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Temperature Adjustment IMPORTANT! The temperature can only be adjusted after the toaster has been turned on and allowed to operate through 2-3 cycles. 1. Locate the temperature calibrating screw on the rear of the toaster. -
Page 18: Cleaning Procedure
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Cleaning Procedure NOTE! Toaster should be moved in front of operating grill exhausts to perform clean. 1. Turn toaster off and remove electric cord from power point 2. Wipe soil from the toaster using a clean sanitised towel and small amount of water to rinse the platens using a damp cloth. -
Page 19: General Safety
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 General Safety Service Stoddart, one of our agents, or a similarly qualified person(s) should carry out any and all repairs, maintenance and services. Any repair person(s) should be instructed to read the safety warnings within this manual before commencing work on these units. -
Page 20: Maintenance
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Maintenance Routines Schedules To maintain optimal performance, maintenance and cleaning schedules must be regular and thorough. The unit should be cleaned at the end of every work day. -
Page 21: Stainless Steel Protection
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Stainless Steel Protection Cleaning For cleaning a stain on the surface of the stainless steel, check the cleaning section of the operation manual. All metal surfaces should be checked while cleaning for damage, scuffs or scapes as these can lead to rust and further damage to the product. -
Page 22: Water Damage
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Water Damage Information Water damage to the electrical and mechanical parts of unit can occur through hosing on or around the unit. Improper cleaning of the unit can lead to water damage. Check the cleaning section of the operation manual for more information. -
Page 23: Replacements
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Replacements Electronic Controller, Temperature Probe The electronic controller and temperature probe can be replaced by the manufacturer. Both MUST be replaced by a qualified technician. Electrical Parts ... -
Page 24: Troubleshooting
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Troubleshooting WARNING! Technician tasks only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes... -
Page 25: Electrical Diagrams
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Electrical Diagrams Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 23... -
Page 26: Spare Parts/ Assembly Diagram
INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 Spare Parts/ Assembly Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 24... -
Page 27: Warranty
Warranty Appendix 1 – Australian Warranty and Importer/Distributor Contact Details As the exclusive manufacturer and distributor of Woodson products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of a Woodson product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose. - Page 28 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 (vi) Proper maintenance and cleaning of equipment in accordance with the Instructions is essential to the equipment's effective operation; (vii) On site warranty services are limited to sites within 50km from the nearest Stoddart authorized service agent and service agent's reasonable travel costs must be paid by Customer prior to the commencement of the repairs;...
- Page 29 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – Split Lid WGPC62 4. Warranty Claim Procedure The following procedure must be followed to claim under Stoddart's warranties: Refer to the trouble-shooting section of the Instructions to establish the nature of the fault. Check the equipment is plugged-in, turned-on or has no other valid reason for not operating.
-
Page 31: Warranty Request Form
WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 1000 Int: +617 3344 1000 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information.
