WOODSON CONTACT TOASTER
All stainless steel body construction
8 programmable timer settings
All stainless steel Platens
Easy-clean smooth metal conduit to route cables to upper cooking plate
Gas strut assist lift and lower
Heavy duty rotary on off switch
Multiple switch settings
Computer controlled Timer
Due to continuous product research and development, the information contained herein is subject to change without notice
Tel: 1300 79 1954 Web: www.stoddart.com.au
INSTALLATION,OPERATION & MAINTENANCE
Model WGPC61
FEATURES
Woodson Contact Toaster – WGPC61
Email: fse@stoddart.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WGPC61 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodson WGPC61

Summary of Contents for Woodson WGPC61

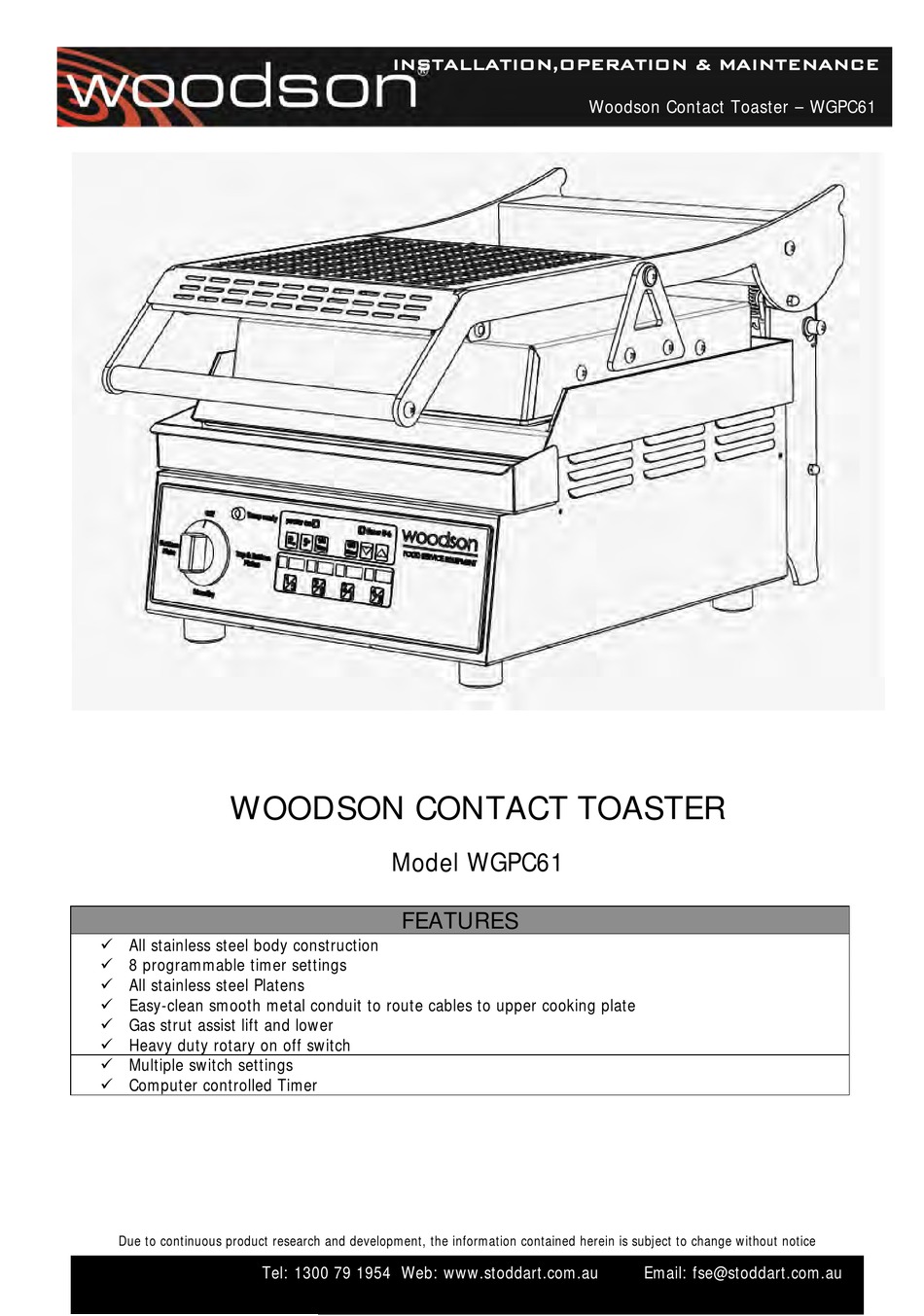

  • Page 1 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 WOODSON CONTACT TOASTER Model WGPC61 FEATURES All stainless steel body construction 8 programmable timer settings All stainless steel Platens Easy-clean smooth metal conduit to route cables to upper cooking plate Gas strut assist lift and lower Heavy duty rotary on off switch...

  • Page 2: Table Of Contents

    Table of Contents General Recommendations ................2 Specifications........................3 Technical Specifications ..................3 Technical/Connection Diagram ................4 Rating Plate ......................5 Installation .......................6 General Precautions ......................6 Setting Up ........................7 Handling......................7 Site Preparation ....................7 Unpacking ......................7 First Time Operation.....................7 Electrical Connection ......................8 Operation......................9 General Recommendations ....................9 Introduction to Operation ....................
  • Page 3 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Electrical Diagrams ..................22 Spare Parts Assembly..................23 Warranty......................25 Appendix 1 – Australian Warranty and Importer/Distributor Contact Details ......25 Australian Warranty Policy & Procedure................25 WARRANTY REQUEST FORM................... 28 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au...

  • Page 4: General Recommendations

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 General Recommendations ATTENTION Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians.

  • Page 5: Specifications

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Specifications Technical Specifications SPECIFICATIONS Model WGPC61 Height 300mm Width 410mm Depth 628mm Voltage 240v Power 2100W Current 10 A Connection 10A Lead and Plug (Supplied) Mass 23 kg Capacity 4 Sandwiches Temperature 205C...

  • Page 6: Technical/Connection Diagram

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Technical/Connection Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 4...

  • Page 7: Rating Plate

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Rating Plate The rating plate of the appliance contains identification and technical data and is located on the unit as shown below. Sample Only Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au...

  • Page 8: Installation

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Installation General Precautions Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.  Read the installation, operating and maintenance instructions thoroughly before installation, maintenance or servicing this equipment ...

  • Page 9: Setting Up

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Setting Up Handling  Use suitable means to move the appliance: eg. A lift truck or fork pallet trucks (the forks should reach more than halfway beneath the appliance). Site Preparation ...

  • Page 10: Electrical Connection

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Electrical Connection WARNING! This machine must be installed in accordance with AS/NZS 60335.1 Information  The electrical supply shall comply with the rating plate data.  The machine is supplied with a plug and lead (10A).

  • Page 11: Operation

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Operation General Recommendations When using any electrical appliance, safety precautions should always be observed. Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the purpose for which it has been designed.

  • Page 12: Introduction To Operation

    Woodson Contact Toaster – WGPC61 Introduction to Operation The Woodson Contact Toaster been specifically designed to meet the rigorous demands of a busy food service operation. Each Woodson Contact Toaster has been assembled and tested according to Stoddart’s strict quality standards.

  • Page 13: Operating Instructions

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Operating Instructions 1. Visually check the toaster is clean, in good repair and safe. 2. Ensure that the top platen is in a closed position. 3. Turn the power switch to the “ON” position. The power “ON” indication light located on the control panel will be illuminated.
  • Page 14 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 NOTE! The timer can be stopped if necessary, by pressing the timer button and holding it for 3 seconds. 14. Replace the top platen back in to the down position when the product has been removed.

  • Page 15: Setting The Timers

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Setting the Timers  The Control panel has 8 timers located along the front of the control panel. The displays indicate the pre- programmed times in minutes and seconds.  The unit is configured so that is equal to 1 minute 20 seconds.

  • Page 16: Temperature Adjustment

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Temperature Adjustment IMPORTANT! The temperature can only be adjusted after the toaster has been turned on and allowed to operate through 2-3 cycles. Approximately 30 minutes 1. Locate the temperature calibrating screw on the rear of the toaster.

  • Page 17: Cleaning Procedure

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Cleaning Procedure NOTE! Toaster should be moved in front of operating grill exhausts to perform clean. 1. Turn toaster off and remove electric cord from power point 2. Wearing grill cleaning gloves and apron, apply Grill Cleaner with the Cleaner pad .

  • Page 18: General Safety

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 General Safety Service Stoddart, one of our agents, or a similarly qualified person(s) should carry out any and all repairs, maintenance and services. Any repair person(s) should be instructed to read the safety warnings within this manual before commencing work on these units.

  • Page 19: Maintenance

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Maintenance Routines Schedules  To maintain optimal performance, maintenance and cleaning schedules must be regular and thorough.  The unit should be cleaned at the end of the every work day. Log Books ...

  • Page 20: Stainless Steel Protection

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Stainless Steel Protection Cleaning  For cleaning a stain on the surface of the stainless steel, check the cleaning section of the operation manual.  All metal surfaces should be checked while cleaning for damage, scuffs or scapes as these can lead to rust and further damage to the product.

  • Page 21: Water Damage

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Water Damage Information  Water damage to the electrical and mechanical parts of unit can occur through hosing on or around the unit.  Improper cleaning of the unit can lead to water damage. Check the cleaning section of the operation manual for more information.

  • Page 22: Replacements

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Replacements Electronic Controller, Temperature Probe  The electronic controller can be replaced by the manufacturer.  It MUST be replaced by a qualified technician. Electrical Parts  All electrical parts can be replaced by the manufacturer or others.

  • Page 23: Troubleshooting

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Troubleshooting WARNING! Technician tasks only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes Task Possible Corrective Action Unit not turned “on”...

  • Page 24: Electrical Diagrams

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Electrical Diagrams Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 22...

  • Page 25: Spare Parts Assembly

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 Spare Parts Assembly Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 23...

  • Page 26: Warranty

    Warranty Appendix 1 – Australian Warranty and Importer/Distributor Contact Details As the exclusive manufacturer and distributor of Woodson products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of a Woodson product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose.
  • Page 27 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 (vi) Proper maintenance and cleaning of equipment in accordance with the Instructions is essential to the equipment's effective operation; (vii) On site warranty services are limited to sites within 50km from the nearest Stoddart authorized service agent and service agent's reasonable travel costs must be paid by Customer prior to the commencement of the repairs;...
  • Page 28 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Toaster – WGPC61 4. Warranty Claim Procedure The following procedure must be followed to claim under Stoddart's warranties: Refer to the trouble-shooting section of the Instructions to establish the nature of the fault. Check the equipment is plugged-in, turned-on or has no other valid reason for not operating.

  • Page 30: Warranty Request Form

    WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 1000 Int: +617 3344 1000 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information.
