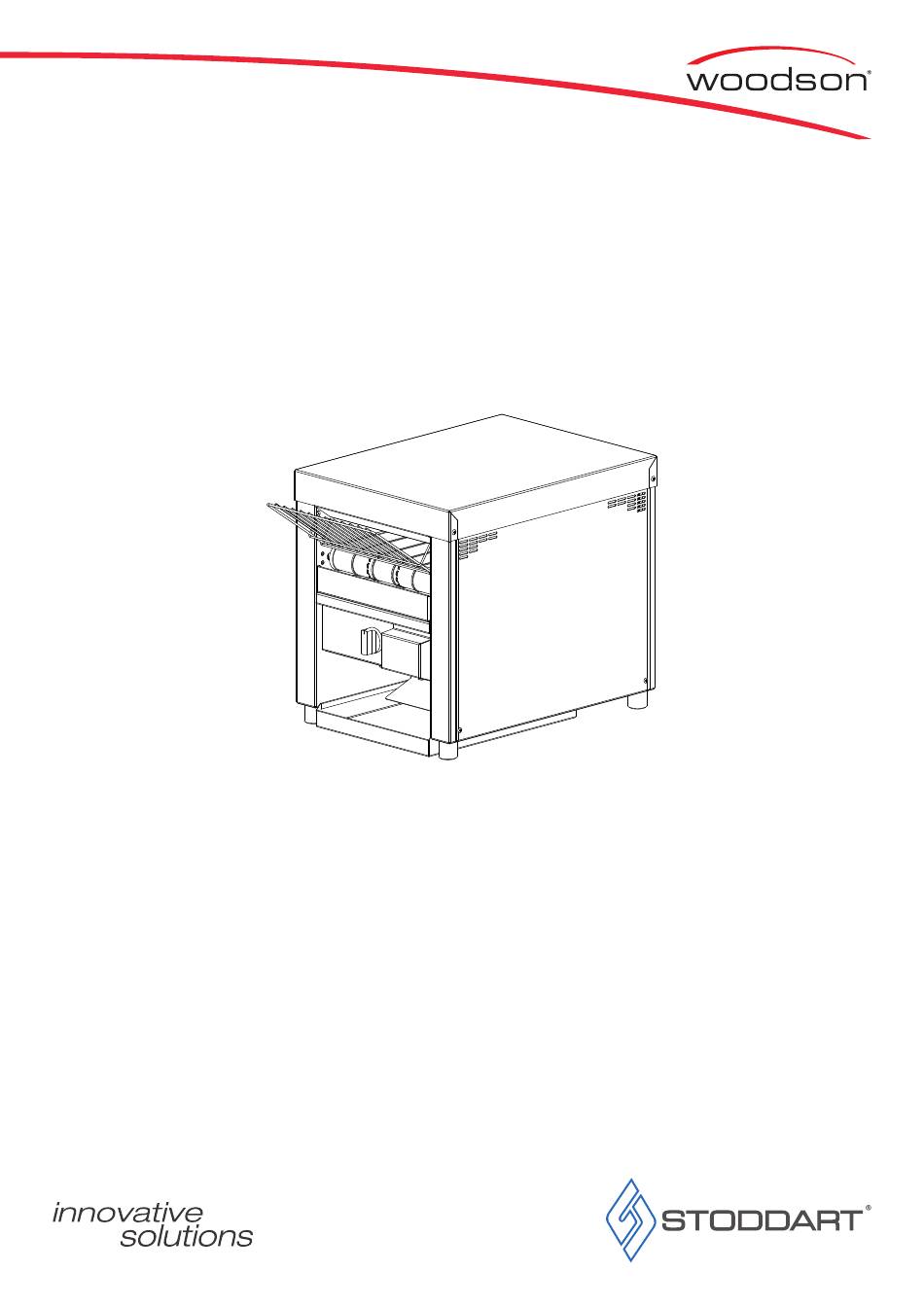

- Page 1 SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Conveyor Toaster Models: W.CVT.D.10, W.CVT.D.15 A guide on the use, care and maintenance of your quality Woodson Starline product Revision: B - 24/07/2020...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
- Page 3 Cleaning and Maintenance Your New Woodson Product ....3 Cleaning ......10 Australia and New Zealand Warranty .
-
Page 4: Your New Woodson Product
Thank you for choosing this quality Woodson product. All Woodson products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your new Woodson product in accordance with these instructions, will provide many years of reliable service. -
Page 5: Warranty And Registration
Introduction Warranty & Registration Australia and New Zealand Warranty Warranty Period Stoddart 12 month on-site parts and labour warranty (terms and conditions apply), from the time of purchase. To view or download the warranty terms and conditions visit: http://www.stoddart.com.au/warranty-information Warranty Registration To register your new product, go to the Stoddart warranty page: http://www.stoddart.com.au/warranty-registration General Precautions... -
Page 6: Installation
Installation Product Overview CAUTION Surface is Hot Conveyor Control Panel Speed Adjustment Cover Front or Rear Exit Tray Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 5... - Page 7 Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) Unpacking •...
-
Page 8: Electrical Connection
Installation Electrical Connection Information WARNING This unit must be installed in accordance with AS/NZS 60335.1 Some procedures in this manual require the power to the equipment to be turned off and isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug body. -
Page 9: Technical Specifications
Specification Technical Specifications W.CVT.D.10 / W.CVT.D.15 Specifications Model W.CVT.D.10 W.CVT.D.15 Height 446mm 446mm Width 379mm 379mm Depth 502mm 502mm Power 2.15kW 3.35kW 10A Plug and Lead 15A Plug and Lead Rear Exit Removable Speed Controller Cover 323.5 Chamber Length Front Exit Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 10: Operation
Operation Operating Instructions Control Panel First Time Operation Turn the unit on by selecting an element setting Set element dial to: Top Element / Bottom Element / Top Element and Bottom Element Set “Toast” to 5 Place food item on the conveyor Adjust as required: increase/decrease the “Toast”dial until the desired results have been achieved Once satisfied with the results, record the settings for future reference (use control cover to prevent adjustment if required) Repeat this process for different breads... - Page 11 Cleaning and Maintenance Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •...
- Page 12 Cleaning and Maintenance Cleaning Schedule • Daily cleaning is required for the oven conveyor, crumb tray and external surfaces. This will help to maintain and prolong the efficiency of your oven • The unit should be cleaned at the end of each work day Materials Required •...
-
Page 13: Troubleshooting
Cleaning and Maintenance Troubleshooting • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. - Page 14 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 13...
- Page 15 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 14...
- Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
