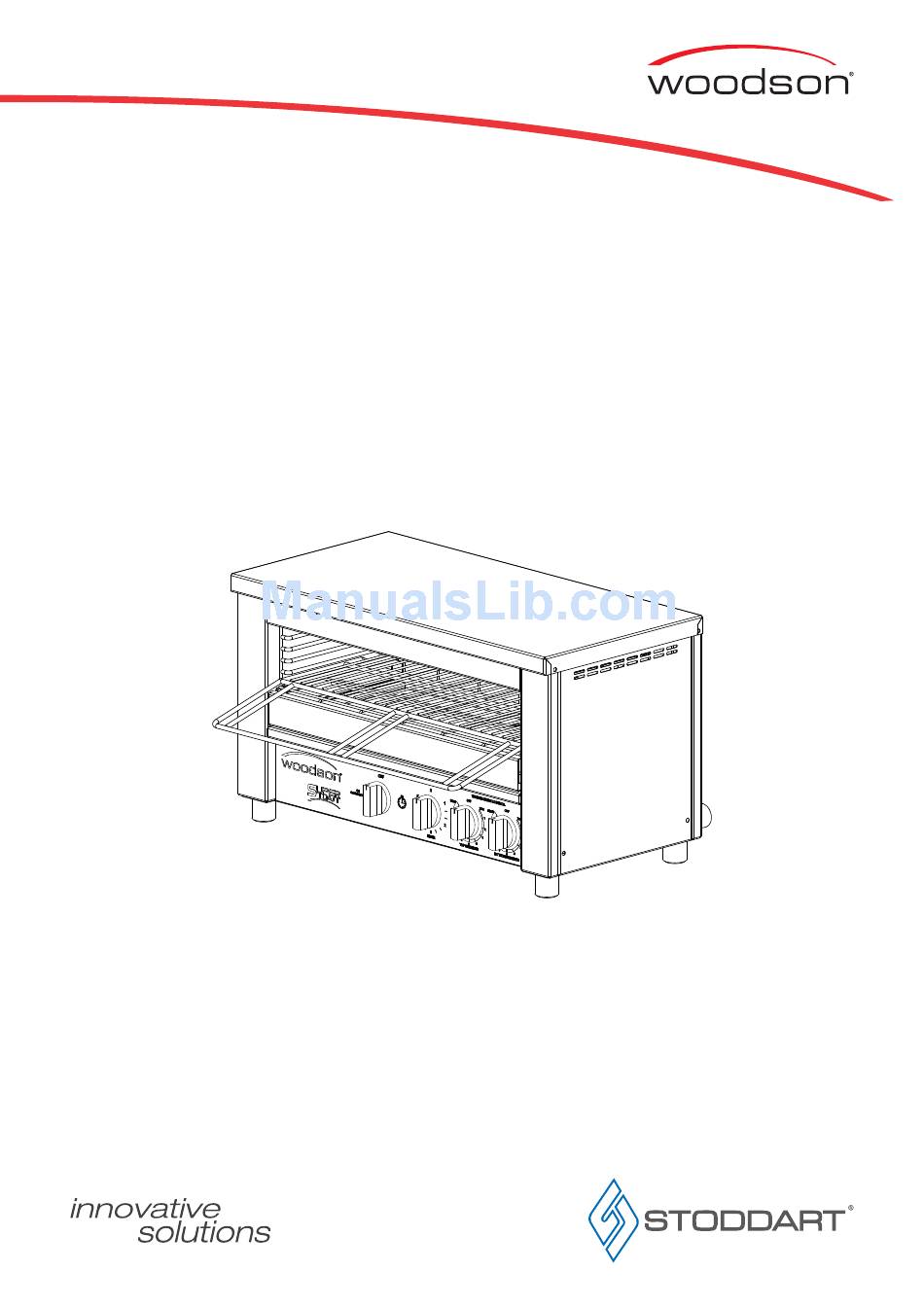

- Page 1 Specifi cation, Installation and Operation Manual Supertoast Multi-Function Toaster Grillers Models: W.GTQI8S.10, W.GTQI8S.15 A guide on the use, care and maintenance of your quality Woodson product...
-
Page 2: Table Of Contents
Index Introduction Your New Woodson Starline Product Optional Product Overview Specifi cation Attention General Precautions Service Hot Surfaces General Drawing Technical Specifi cations Electrical Connection Information Installation Setting Up Handling Unpacking Positioning Operation General Recommendations Operating Instructions First Time Operation... - Page 3 Index Warranty Commercial Warranty Consumer Warranty Warranty Clarifi cation Warranty Claim Procedure Timing of Warranty Services General Maintenance and Repairs Warranty Request Form Notes Notes Contact Stoddart Service Department www.stoddart.com.au Page 2...
-
Page 4: Introduction
Your New Stoddart Woodson Product: Thank you for choosing this quality Stoddart Woodson product. All our products are designed and made to meet the needs of food service professionals. By using, caring and maintaining your product according to these instructions, your Woodson product should give you many years of reliable service. -
Page 5: Attention
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians. Disclaimer: The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, appliances or others, due to abuse and misuse of this appliance in regards to installation, un-installation, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation. - Page 6 Page Intentionally Left Blank www.stoddart.com.au Page 5...
-
Page 7: General Drawing
Specifi cation General Drawing www.stoddart.com.au Page 6... -
Page 8: Technical Specifi Cations
Specifi cation Technical Specifi cations Specifi cations Model W.GTQI8S.10 W.GTQI8S.15 Height 342mm 342mm Width 595mm 595mm Depth 300mm 300mm Power 2.4kW 3.6kW AMPS Electrical Connection WARNING! This unit must be installed in accordance with AS/NZS 60335.1 Information • The electrical supply must comply with the rating plate data. -
Page 9: Setting Up
Specifi cation Setting Up Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the appliance: eg. A lift truck or fork pallet trucks (the forks should reach more than halfway beneath the appliance) Unpacking •... -
Page 10: General Recommendations
Installation General Recommendations When using any electrical appliance, safety precautions should always be observed. Our appliances have been designed for high performance. Therefore, the appliance must be used exclusively for the purpose for which it has been designed. Read these instructions carefully and retain for future reference. •... -
Page 11: Operating Instructions
Operation Operating Instructions First Time Operation Turn the unit on at the “Power Switch”. Prepare food item. Set the “Top Element” and “Bottom Element” to 5. Set “Timer” to desired setting (max 5 min). (The timer can be bypassed by switching to “On Continuous”, when selected the elements will not turn off automatically). -
Page 12: Cleaning
Operation Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the appliance. • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the appliance . •... -
Page 13: Cleaning Schedule
Operation Cleaning Schedule • Daily cleaning is required for the oven conveyor, crumb tray and external surfaces. This will help to maintain and prolong the effi ciency of your oven. • The unit should be cleaned at the end of each work day. Materials Required •... -
Page 14: Troubleshooting
Operation Troubleshooting WARNING! Technician tasks are only to be completed by qualifi ed service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes Task Possible Corrective Action Unit is not plugged into a Unit won’t turn on Plug unit in suitable power point... -
Page 15: Warranty
Warranty Appendix 1 – Australian Warranty and Contact Details As the exclusive manufacturer and distributor of Stoddart products in Australia, Stoddart would like to congratulate you on your purchase of a Stoddart product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose. This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided: •... -
Page 16: Warranty Claim Procedure
Warranty Stoddart’s warranty liability under clauses 1 and 2 of these Terms exclude or do not cover: The matters acknowledged by Customer in clause 3.1; Situations where Stoddart is not satisfi ed (acting reasonably) the equipment or any part of the equipment has been used in accordance with the Instructions including misuse, neglect, unauthorised alteration, incorrect installation, power surges, accident, use of inappropriate chemicals, fl... -
Page 17: Warranty Request Form
Warranty This form can also be completed online at: www.stoddart.com.au/warranty-claim. WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 1000 Int: +617 3344 1000 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information. -
Page 18: Notes
Notes www.stoddart.com.au Page 17... - Page 19 Contact Stoddart Sales Servicing and Replacement Sales Department Tel: 1300 791 954 Fax: (07) 3344 1000 Email: fseorders@stoddart.com.au Service & Spares Department Tel: 1300 307 289 Email: service@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Page 18...
