Woodson W.CHD750 Specification, Installation And Operation Manual

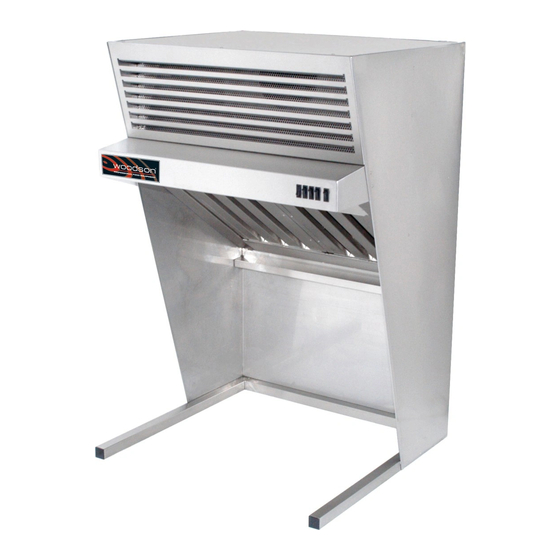

Counter-top ductless exhaust hood
Hide thumbs
Also See for W.CHD750:
- Instruction manual (12 pages) ,
- Installation and operation manual (17 pages)
Related Manuals for Woodson W.CHD750
Summary of Contents for Woodson W.CHD750

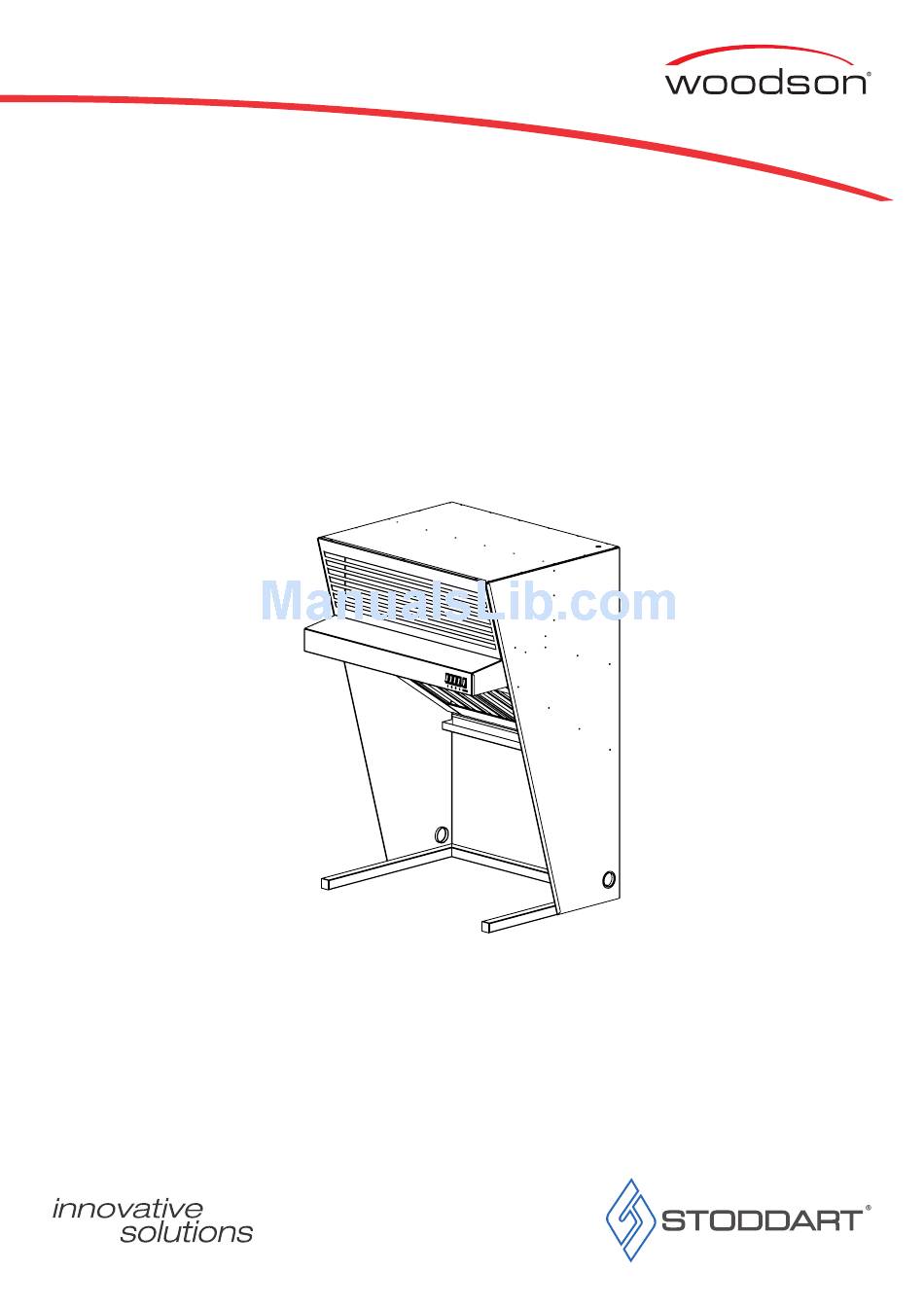

- Page 1 Specification, Installation and Operation Manual Counter-top Ductless Exhaust Hood Models: W.CHD750 & W.CHD1000 A guide on the use, care and maintenance of your quality Woodson product Rev: A - 15/01/2018...
- Page 2 Page Intentionally Left Blank www.stoddart.com.au Page 1 Due to continuous product research and development, the information contained herein is subject to change without notice.
- Page 3 Your New Woodson Product � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �...
-
Page 4: Your New Woodson Product
Your New Woodson Product Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals� By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of reliable service�... -
Page 5: Attention
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on hand in a safe place for future reference by other operators or users� Disclaimer The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units or others, due to abuse and misuse of this unit in regards to installation, un-installation, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation�... -
Page 6: Setting Up
Installation Setting Up Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death� Handling • Use suitable means to move the unit: eg� A lift truck or fork pallet trucks (the forks should reach more completely beneath the unit) Unpacking •... -
Page 7: Electrical Connection
Installation Electrical Connection WARNING! This unit must be installed in accordance with AS/NZS 60335.1 Information Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual� Single Phase Units: Supplied with an appropriately rated plug and lead fi tted and be indicated as: •... -
Page 8: Technical Specifications
Specification Technical Specifications Specifications Model W.CHD750 W.CHD1000 Height 1150mm 1150mm Width 750mm 1000mm Depth 660mm 660mm Power 0.5kW 1.0kW AMPS 10A plug & lead fitted 10A plug & lead fitted W.CHD750 www.stoddart.com.au Page 7 Due to continuous product research and development,... -
Page 9: W.chd1000
Specification W.CHD1000 www.stoddart.com.au Page 8 Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 10: Initial Start-Up & Operation
Ensure all components are properly fitted, all filters must be fitted to the hood prior to use 4� Plug the hood into a 10AMP power circuit 5� Your Woodson product is now ready for use Diagram 1 Diagram 2 Activated... -
Page 11: Cleaning
Operation Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •... -
Page 12: Cleaning Schedule
Operation Cleaning Schedule • Daily cleaning is required for the Counter-top Ductless Exhaust Hood and external surfaces� This will help to maintain and prolong the efficiency of your unit • The unit should be cleaned at the end of each work day Materials Required •... -
Page 13: Troubleshooting
Operation Troubleshooting WARNING! Technician tasks are only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes Task Possible Corrective Action Unit is not plugged into a Unit won’t turn on Plug unit in suitable power point... -
Page 14: Appendix 1 – Australian Warranty And Contact Details
Warranty Appendix 1 – Australian Warranty and Contact Details As the exclusive manufacturer and distributor of Stoddart products in Australia, Stoddart would like to congratulate you on your purchase of a Stoddart product� Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market� These appliances are not designed nor intended for household or domestic use &... -
Page 15: Warranty Claim Procedure
Warranty 3�2 Stoddart’s warranty liability under clauses 1 and 2 of these Terms exclude or do not cover: The matters acknowledged by Customer in clause 3�1; Situations where Stoddart is not satisfi ed (acting reasonably) the equipment or any part of the equipment has been used in accordance with the Instructions including misuse, neglect, unauthorised alteration, incorrect installation, power surges, accident, use of inappropriate chemicals, fl ooding, fi re or act of God;... -
Page 16: Warranty Request Form
Warranty Warranty Request Form This form can also be completed online at: www�stoddart�com�au/warranty-claim� WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 1000 Int: +617 3344 1000 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information. - Page 17 Page Intentionally Left Blank www.stoddart.com.au Page 16 Due to continuous product research and development, the information contained herein is subject to change without notice.
- Page 18 Notes www.stoddart.com.au Page 17 Due to continuous product research and development, the information contained herein is subject to change without notice.
- Page 19 Notes www.stoddart.com.au Page 18 Due to continuous product research and development, the information contained herein is subject to change without notice.
- Page 20 Stoddart Sales Servicing and Replacement Sales Department Tel: 1300 79 1954 Fax: (07) 3344 1000 Email: fseorders@stoddart�com�au Service & Spares Department Tel: 1300 307 289 Email: service@stoddart�com�au Email: spares@stoddart�com�au...
