WinSystems EBC-C413 Product Manual

Industrial ebx single board computer with intel atom e3800 processor, pc104-plus, and digital i/o
Hide thumbs Also See for EBC-C413:
Table of Contents

Advertisement

Quick Links

Download this manual

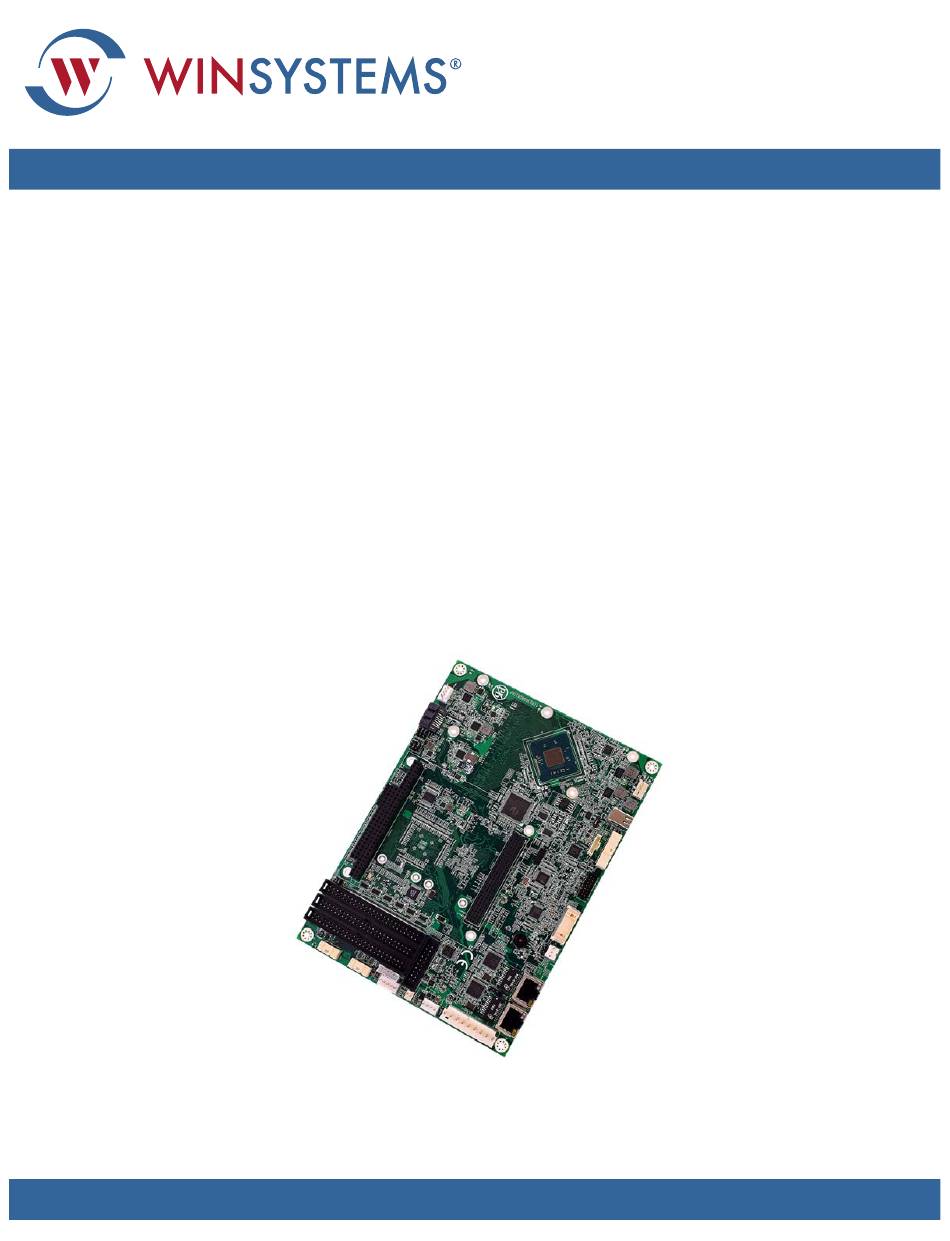

EBC-C413
Industrial EBX Single Board Computer
®
with Intel
Atom™ E3800 processor,
PC104-Plus, and Digital I/O
Product Manual
WINSYSTEMS, Inc. | 715 Stadium Drive, Arlington, Texas 76011 | 817-274-7553 | info@winsystems.com | www.winsystems.com

Advertisement

Table of Contents
loading

Related Manuals for WinSystems EBC-C413

Summary of Contents for WinSystems EBC-C413

  • Page 1 EBC-C413 Industrial EBX Single Board Computer ® with Intel Atom™ E3800 processor, PC104-Plus, and Digital I/O Product Manual WINSYSTEMS, Inc. | 715 Stadium Drive, Arlington, Texas 76011 | 817-274-7553 | info@winsystems.com | www.winsystems.com...
  • Page 2 Copyright 2016-2019, WINSYSTEMS, Inc. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of WINSYSTEMS, Inc. The information in the document is subject to change without notice. The information furnished by WINSYSTEMS, Inc.

  • Page 3: Table Of Contents

    EBC-C413 Table of Contents Introduction ............6 Functionality .
  • Page 4 EBC-C413 7.11.1 Fan ..............23 7.12 Connectors .
  • Page 5 EBC-C413 7.14 LED Indicators............53 7.14.1 LED4 User LED .

  • Page 6: Introduction

    Introduction This manual provides configuration and usage information for the EBC- C413. The EBC-C413 is a full-featured embedded single board computer (SBC) with digital I/O. If you still have questions after reviewing this manual, contact WINSYSTEMS Technical Support at (817) 274-7553, Monday through Friday, between 8 AM and 5 PM Central Standard Time (CST).
  • Page 7 Four serial ports (RS232 and RS422/485 configurable) Audio • 7.1 HD audio including connections for line-in, line-out, rear, side, cen- ter, low frequency effects (LFE), two microphones, and CD Power • +5 VDC power input (main supply to EBC-C413) v1.2 www.winsystems.com Page 7...

  • Page 8: Before You Begin

    Read this document and become familiar with the EBC-C413 before proceeding. FAILING TO COMPLY WITH THESE BEST PRACTICES MAY DAMAGE THE EBC-C413 AND VOID YOUR WARRANTY. Warnings Only qualified personnel should configure and install the EBC-C413. While...

  • Page 9: General Operation

    EBC-C413/General Operation General Operation The EBC-C413 is a single board computer (SBC). It is a full-featured embedded system with a variety of onboard I/O options. The following figure is a simplified system block diagram of the EBC-C413. DDR3L SODIMM Display Controller DPØ/Mini DP...

  • Page 10: Specifications

    Operating systems such as Linux or Windows can be initialized from the SATA, mSATA, or USB interfaces. This provides flexible data storage options. Specifications The EBC-C413 adheres to the following specifications and requirements. Electrical +5 VDC ±5%, 1.7 A typical, 2.2 A maximum Processor 3815: E3815 single-core 1.46 GHz, 512 K cache (MOQ...

  • Page 11: Configuration

    Configuration This section describes the EBC-C413 components and configuration. Component Layout The EBC-C413 provides components on the top and bottom of the board. 7.1.1 Top View Connectors The following figure illustrates the location of each connector on the top of the EBC-C413.
  • Page 12 EBC-C413/Configuration The following table provides connector descriptions and references for the figure above. Item Connector and Description Page PWR - Power Connector page 23 ATXAUX ATXAUX - ATX/Auxiliary Power Connector page 24 COM3-4 COM3-4 - COM3 and COM4 Serial Ports...

  • Page 13: Bottom View Components

    EBC-C413/Configuration 7.1.2 Bottom View Components The following figure illustrates the location of each connector on the bottom of the EBC-C413. CFAST MC2 MiniCard/ mSATA MiniCard SODIMM Memory The following table provides connector descriptions and references for the figure above. Item...

  • Page 14: Jumpers

    EBC-C413/Configuration 7.1.3 Jumpers The following figure illustrates the location of each jumper on the EBC- C413. JP104P JP5VSB JPDIO1 JPDIO2 JPBAT JPSATA JPATX JPMC2 JPMC1 JPLCDP JPMSATA The following table provides jumper descriptions and references for the figure above. Item...

  • Page 15: I/O Port Map

    The EBC-C413 uses plug-and-play (PnP) BIOS resource allocation. Take care to avoid contention with resources allocated by the BIOS. The EBC-C413 utilizes a Low Pin Count to Industry Standard Architecture bridge (LPC to ISA bridge) to address the PC104 bus. Most legacy PC104 modules are I/O mapped and function as expected.
  • Page 16 EBC-C413/Configuration PCU I/O Address Device 0070h-0077h RTC Controller 0080h-0091h DMA Controller 0092h Reset Generator 0093h-009Fh DMA Controller 00A0h-00A1h Interrupt Controller PIC 8259 00A4h-00A5h Interrupt Controller 00A8h-00A9h Interrupt Controller 0ACh-00ADh Interrupt Controller 00B0h-00B1h Interrupt Controller 00B2h-00B3h Power Management 00B4h-00B5h Interrupt Controller...

  • Page 17: Interrupt Map

    EBC-C413/Configuration Interrupt Map The EBC-C413 supports hardware interrupts (IRQs) for PC104 (ISA), PCI, and PCIe devices. The user must reserve IRQs in the BIOS CMOS configuration for use by legacy devices. The PCIe/PnP BIOS uses unreserved IRQs when allocating resources during the boot process. The following tables outline the EBC-C413 IRQ resource allocations.

  • Page 18: Digital I/O

    Bit 6 Bit 7 WINSYSTEMS does not provide software support for implementing the Interrupt Status Register to share interrupts. Some operating systems, such as Windows XP and Linux, have support for sharing serial port interrupts (see your specific operating system’s documentation for any available examples).

  • Page 19: Int_Pending

    EBC-C413/Configuration output pin to go to a high-impedance state (pulled high by external 10 KΩ resistors). This allows it to be used as an input. When used in the input mode, a read reflects the inverted state of the I/O pin, such that a high on the pin reads as a 0 in the register.

  • Page 20: Int_Id0 Through Int_Id2

    A write to this register (value ignored) clears ALL of the pending interrupts in this register. Watchdog Timer The EBC-C413 features an advanced watchdog timer that can be used to guard against software lockups. 7.5.1 Enable and Set the Timer The watchdog timer can be enabled in the BIOS Settings by entering a value for Watchdog Timeout on the Advanced/SIO >...

  • Page 21: Real-Time Clock/Calendar

    EBC-C413/Configuration Watchdog Timer Examples Port Port Bit 7 Port Reset Interval Address Value Address Value DISABLED 1 second (minimum) 3 seconds 30 seconds 565h 566h 60 seconds 1 minute 4 minutes 5 minutes 255 minutes (maximum) To reset the watchdog timer, rewrite the timeout value to PORT 566h.

  • Page 22: Serial Ports

    115.2 kbps. Individual modem handshake control signals are supported for all ports. COM1, COM2, COM3, and COM4 (DB-9 Male and Female) NOTE The following table contains standard pinouts of the EBC-C413 COM ports (COM1 through COM4) when connected to DB-9 connectors. RS232...

  • Page 23: Fan

    5 VDC stand-by is only required to supply the power connector for ATX mode operation. The EBC-C413 supports AT or ATX type power supplies. Jumper JP1 (see “PWR - Power Connector” on page 23) specifies the type of supply connected to the single board computer.

  • Page 24: Atxaux - Atx/Auxiliary Power Connector

    Most embedded systems use this type of power supply and it is the default setting. The EBC-C413 power circuit detects an AT power supply if +5 VSB is not present at startup.

  • Page 25: Com3-4 - Com3 And Com4 Serial Ports

    This connection is a 20-pin Teka SVC210B3580135-0, 2 x 10, 0.1-inch box header connector (or equivalent). NOTE See “Serial Ports” on page 22 for more information on EBC-C413 serial ports. NOTE Refer to “MIO - PS/2 Keyboard, Serial 1/2, and LPT” on page 26 for the connection to COM1 and COM2.

  • Page 26: Mio - Ps/2 Keyboard, Serial 1/2, And Lpt

    EBC-C413/Configuration WINSYSTEMS cable CBL-173-G-1-1.0 simplifies this connection to the board. Pin 11 Pin 1 7.12.4 MIO - PS/2 Keyboard, Serial 1/2, and LPT Connect to the primary serial channels (COM1 and COM2), the printer port, and keyboard through this connector.
  • Page 27 EBC-C413/Configuration Additional Information This connection is a 50-pin Teka SVC225B3580135-0, 2 x 25, 0.1-inch boxed header connector (or equivalent). NOTE See “Serial Ports” on page 22 for more information on EBC-C413 serial ports. Matching connector: • 50-pin IDC 0.1 inch TE 1-1658622-2 or equivalent WINSYSTEMS cable CBL-247-G-1-1.0 simplifies this connection to the...

  • Page 28: Rst - Reset Connector

    This connector resets the CPU and all peripherals. Connect it to a normally open monetary contact switch. Layout and Pin Reference Name RSTBTN# WINSYSTEMS CBL-RST-402-18 simplifies this connection to the board. 7.12.6 MOUSE - PS/2 Mouse Connector Connect mouse signals to this connection. Layout and Pin Reference Name...

  • Page 29: Kbms - Reserved

    7.12.8 USB1 - USB Connector for Ports 0-3 Connect to the USB signals provided at the USB1 connector. NOTE The EBC-C413 provides eight USB2.0 ports with ESD suppression (four ports at USB1 and four at USB2). Layout and Pin Reference...

  • Page 30: Usb2 - Usb Connector For Ports 4-7

    7.12.9 USB2 - USB Connector for Ports 4-7 Connect to the USB signals provided at the USB2 connector. NOTE The EBC-C413 provides eight USB2.0 ports with ESD suppression (four ports at USB1 and four at USB2). Layout and Pin Reference...

  • Page 31: Dio1 - Digital I/O Connector With Event Sense

    Power Enable (+5 VDC) to Pin 49 of DIO1” on page 51) to power external devices. The user must ensure that current does not exceed 1 A or damage may result. NOTE The EBC-C413 provides 48 bidirectional I/O lines (24 lines at DIO1 and 24 lines at DIO2). v1.2 www.winsystems.com...
  • Page 32 Additional Information This connection is a Teka SVC225B3580135-0, 2 x 25, 0.1 inch box header (or equivalent). Matching connector: • 50-pin IDC 0.1 inch TE 1-1658622-2 or equivalent WINSYSTEMS cable CBL-129-4 simplifies this connection to the board. v1.2 www.winsystems.com Page 32...

  • Page 33: Dio2 - Digital I/O Connector

    Enable (+5 VDC) to Pin 49 of DIO2” on page 52) to power external devices. The user must ensure that current does not exceed 1 A or damage may result. NOTE The EBC-C413 provides 48 bidirectional I/O lines (24 lines at DIO1 and 24 lines at DIO2). Layout and Pin Reference...

  • Page 34: Pc104Ab - Pc104 8-Bit Bus Connector Pc104Cd - Pc104 16-Bit (Includes Pc104Ab) Bus Connector

    PC104CD - PC104 16-bit (Includes PC104AB) Bus Connector The PC104 bus is electrically equivalent to the 16-bit ISA bus. Standard PC104 I/O cards can be populated on the EBC-C413 connectors, located at J2 and J3. The interface does not support hot-swap capability.
  • Page 35 SD14 SA13 DRQ1 SD15 SA12 REFRESH# KEY1 SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2# # = Active Low Signal B10 and C19 are key locations. WINSYSTEMS BALE uses key pins as connections to GND. v1.2 www.winsystems.com Page 35...

  • Page 36: Pc104P - Pc104-Plus/Pc104 Bus Connector

    EBC-C413/Configuration Additional Information The standard EBC-C413 uses a stackable PC104 expansion connector. The standard EBC-C413 is not a “stack-through” type, meaning PC104 cards must “stackup.” A stack-through version may be special ordered (minimum quantities apply). The standard EBC-C413 connectors are: •...
  • Page 37 EBC-C413/Configuration Layout and Pin Reference RESERVED AD00 VI/O AD02 AD01 AD05 AD04 AD03 C/BE0# AD007 AD06 AD009 AD08 AD11 VI/O AD10 M66EN AD14 AD13 AD12 +3.3V C/BE1# AD15 +3.3V SERR# RESERVED PERR# +3.3V RESERVED STOP# +3.3V LOCK# +3.3V TRDY# DEVSEL#...

  • Page 38: Sata1 - Serial Ata Connector

    EBC-C413/Configuration 7.12.14 SATA1 - Serial ATA Connector The EBC-C413 provides a SATA interface to support connection with a variety of SATA devices. Layout and Pin Reference Name The SATA interface is an industry standard 7-pin, right angle SATA connector Molex 47080-4005 (WS G650-7007-600). WINSYSTEMS cable CBL-SATA-701-20 simplifies connection to the board.

  • Page 39: Fan - Connector For Optional Fan

    The EBC-C413 supports low-voltage differential signaling (LVDS) for flat- panel displays with resolutions up to 1920 x 1200 at 24 bpp. NOTE The EBC-C413 has one VGA, one Mini DisplayPort and one Low-Voltage Differential Signaling (LVDS) interface. Only two of the three outputs may be active simultaneously.
  • Page 40 This connection is a Molex 501571-4007, 2 x 20, 1 mm box header (or equivalent). Matching connectors: • Molex 501189-4010 (housing) • Molex 501193-2000 (crimp) WINSYSTEMS LVDS cables are panel specific. Contact an Application Engineer through technical support for details (see the “Introduction” on page 6 for details). v1.2 www.winsystems.com Page 40...

  • Page 41: Bklt - Backlight Power And Control Connector

    6 for details). 7.12.19 VGA - Analog VGA Display Connector The EBC-C413 supports analog VGA. NOTE The EBC-C413 has one VGA, one Mini DisplayPort and one Low-Voltage Differential Signaling (LVDS) interface. Only two of the three outputs may be active simultaneously.

  • Page 42: Dp - Mini Displayport Connector

    WINSYSTEMS cable CBL-234-G-1-1-375 simplifies this connection to the board. 7.12.20 DP - Mini DisplayPort Connector NOTE The EBC-C413 has one VGA, one Mini DisplayPort and one Low-Voltage Differential Signaling (LVDS) interface. Only two of the three outputs may be active simultaneously.

  • Page 43: Bat - External Battery Connector

    Power for connector 7.12.21 BAT - External Battery Connector An optional external battery, connected to BAT, supplies the EBC-C413 board with standby power for the real-time clock and CMOS setup RAM. Extended temperature lithium batteries are available from WINSYSTEMS, part numbers: •...

  • Page 44: Audio - Hd Audio Connector

    EBC-C413/Configuration WINSYSTEMS battery BAT-LTC-E-36-16-1 and BAT-LTC-E-36-27-1 (connected to J3) simplify these connections to the board. AT-LTC-E-36-16-1 BAT-LTC-E-36-27-1 7.12.22 AUDIO - HD Audio Connector Connect to the high-definition audio interface through this connector. Layout and Pin Reference Name Name OUT_R MIC1_R...

  • Page 45: Lan1/Lan2 - Ethernet Lan Connectors

    REV. A RoHS xxyy LINE 3.5mm JACK PINOUT 7.12.23 LAN1/LAN2 - Ethernet LAN Connectors The EBC-C413 uses two Intel i210 Gb/s Ethernet controller that includes ESD suppression. Additional Information The connection is a RJ45 with activity LEDs. Matching connector: •...

  • Page 46: Mc1 - Minicard Connector With Pci-Express And Usb

    EBC-C413/Configuration 7.12.24 MC1 - MiniCard Connector with PCI-Express and USB Connect to the MC1 MiniCard socket that supports a variety of peripherals available in this format. Name Name WAKE# 3.3Vaux COEX1 COEX2 1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RST...

  • Page 47: Mc2 - Minicard/Msata Connector With Pci-Express, Usb, And Sata

    0000-400). 7.12.25 MC2 - MiniCard/mSATA Connector with PCI-Express, USB, and SATA The EBC-C413 provides a second MiniCard socket (also see “MC1 - MiniCard Connector with PCI-Express and USB” on page 46) that supports a variety of peripherals available in this format. The socket alternatively supports an mSATA device in this socket.
  • Page 48 EBC-C413/Configuration Layout and Pin Reference Name Name WAKE# +3.3 Vaux RESERVED RESERVED +1.5 V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RST UIM_VPP RSVD(UIM_C) RSVD(UIM_C) W_DISABLE# PERST# PERn0 3.3 Vaux PERp0 1.5V SMB_CLK PERn0 SMB_DATA PERp0 USB_D- USB_D+ 3.3 Vaux 3.3 Vaux...
  • Page 49 EBC-C413/Configuration To install a MiniCard/mSATA into the MC2 socket: 1. Insert the MiniCard. 2. Push the free end of the card toward the circuit board, and then secure it with two 2 mm screws (WINSYSTEMS P/N: G527- 0000-400). v1.2 www.winsystems.com...

  • Page 50: Cf1 - Cfast Ssd Connector

    EBC-C413/Configuration 7.12.26 CF1 - CFast SSD Connector CFast is a small form factor SATA SSD standard that encompasses CFast data storage cards. Layout and Pin Reference Number Segment Name Type Description Sequence SATA SGND Signal GND Ground for signal integrity...

  • Page 51: 204-Pin Sodimm Socket For System Memory

    Additional Information This connection is a 3M N7G24-A0B2EB-10-3WF (or equivalent). 7.12.27 204-pin SODIMM Socket for System Memory The EBC-C413 supports up to eight GB DDR3L SODIMM system memory through this one on-board socket. 7.13 Jumpers Jumper PN SAMTEC 2SN-BK-G applies to all jumpers. These are available in a ten piece kit from WINSYSTEMS (PN KIT-JMP-G-200).

  • Page 52: Jpdio2 - Power Enable (+5 Vdc) To Pin 49 Of Dio2

    EBC-C413/Configuration 7.13.4 JPDIO2 - Power Enable (+5 VDC) to Pin 49 of DIO2 Purpose: When present, this jumper connects Pins 1-2 and applies power (+5 VDC, VCC2) to pin 49 of DIO2. With jumper removed, no voltage is applied to Pin 49.

  • Page 53: Jpmc2 - Mc2 Wireless Lan Enable

    Purpose: Enable Real Time Clock (RTC) battery backup. Jumper RTC Battery Enable Setting Normal operation Resets RTC time, date, and battery backed 7.14 LED Indicators The EBC-C413 contains four LEDs covered by the heat spreader. SATA Activity (LED1) LED1 Description LED1 Indicates SATA activity v1.2...

  • Page 54: Led4 User Led

    I/O port 29DH and turn it off by writing a 0 to 29DH. BIOS General Information The EBC-C413 includes a BIOS from InsideH2O to ensure full compatibility with PC operating systems and software. The basic system configuration is stored in battery backed CMOS RAM within the clock/calendar. As an alternative, the CMOS configuration may be stored in EEPROM for operation without a battery.

  • Page 55: Bios Screens

    EBC-C413/BIOS BIOS Screens The following BIOS screens contain the options and sample settings for the EBC-C413. Your actual configuration may differ from the screens shown here. NOTE Use care when modifying BIOS settings. Main Use this screen to view general configuration information about the system, and to configure the following components: •...
  • Page 56 EBC-C413/BIOS Language Advanced Access the configuration screens for Boot, PCI Express, USB, Audio, Video, SATA, ACPI, S10 FGPA G639, and Power Loss mode from the Advanced screen. v1.2 www.winsystems.com Page 56...
  • Page 57 EBC-C413/BIOS Boot Configuration PCI Express Configuration v1.2 www.winsystems.com Page 57...
  • Page 58 EBC-C413/BIOS PCI Express Root Port Example (Port 1 shown) PCI Port Speed Example (Port 1 shown) PCI Port ASPM Example (Port 1 shown) v1.2 www.winsystems.com Page 58...
  • Page 59 EBC-C413/BIOS USB Configuration Use this screen to enable or disable the following components: • EHCI Controller • USB RMH Mode • USB EHCI Debug • USB Per-Port Control • USB Port #0 • USB Port #1 • USB Port #2 •...
  • Page 60 EBC-C413/BIOS Video Configuration Use this screen to configure the video components listed below. Video Configuration • Logo and SCU Resolution: AUTO, 640 x 480, 800 x 600, 1024 x 768 v1.2 www.winsystems.com Page 60...
  • Page 61 EBC-C413/BIOS VBT Hook Configuration • Configure CRT as: Default, CRT, No Device • CRT EDID Support: Enable, Disable • Configure DD10 as: Default, eDP, DisplayPort, HDMI/DVI, DisplayPort with HDMI/DVI Compatible, No Device • Configure DD11 as: Default, eDP, DisplayPort, HDMI/DVI, DisplayPort with HDMI/DVI Compatible, No Device •...
  • Page 62 EBC-C413/BIOS SATA Configuration Use this screen to configure the SATA components listed below. SATA Controller: Enable, Disable Chipset SATA Mode: IDE, AHCI • SATA PORT: Enable, Disable • SATA PORT 0 Hot Plug Capability: Enable, Disable • SATA PORT 1 Hot Plug Capability: Enable, Disable •...
  • Page 63 EBC-C413/BIOS S10 FGPA G639 Use this screen to configure the S10 FGPA G639 components listed below. Serial Port A through D: Enable, Disable • Base I/O Address: 2E8, 2F8, 3E8, 3F8 • Interrupt: IRQ3 through IRQ11 • Mode: Loopback, RS232, RS485, RS422 v1.2...
  • Page 64 EBC-C413/BIOS • Slew: Not Limited, Limited • BRG: Normal, High LPT Port: Enable, Disable • Base I/O Interrupt: 278, 378 • Interrupt: IRQ5 through IRQ7 Digital I/O: Enable, Disable • Base I/O Address: [0x120] • Interrupt: IRQ3 through IRQ11 Watchdog Timer: Enable, Disable...
  • Page 65 EBC-C413/BIOS Power Use this screen to configure, enable, and disable the power components: • Advanced CPU Control: Opens a new screen • Wake on LAN: Enable, Disable • RTC Wake on S5: Enable, Disable v1.2 www.winsystems.com Page 65...
  • Page 66 EBC-C413/BIOS Advanced CPU Control Use this screen to configure, enable, and disable the components listed below. • Use XD Capability: Enable, Disable • Limit CPUID Max values: Enable, Disable • Di-Directional PROCHOT#: Enable, Disable • VTX-2: Enable, Disable • TM1 AND TM2: Enable, Disable •...
  • Page 67 EBC-C413/BIOS Boot Use this screen to configure, enable, and disable the boot components listed below. • Boot Type: Dual Boot Type, Legacy Boot Type, UEFI Boot Type • Quick Boot: Enable, Disable • Quiet Boot: Enable, Disable • Network Stack: Enable, Disable •...
  • Page 68 EBC-C413/BIOS Exit Use this screen to save or exit the BIOS configuration with specific treatment of any changes made. v1.2 www.winsystems.com Page 68...

  • Page 69: Cables And Accessories

    EBC-C413/Cables and Accessories Cables and Accessories WINSYSTEMS cables and batteries simplify connection to the EBC-C413. The following table lists available items. Item Part Number Connection Description Cables CBL-236-G-2-1.5 See “PWR - Power PWR power connection, DC Connector” on page 23 harness EBC-TX.

  • Page 70: Software Drivers

    EBC-C413/Software Drivers Item Part Number Connection Description Standoffs KIT-PCM-STANDOFF- See “Mounting and Four piece Nylon Hex PC104 Protecting the EBC-C413” on Standoff Kit page 73 KIT-PCM-STANDOFF- Four piece Brass Hex PC104 Standoff Kit 10. Software Drivers Go to www.winsystems.com for information on available software drivers.

  • Page 71: Best Practices

    EBC-C413. Use Proper Power Connections (Voltage)—When verifying the voltage, measure it at the power connector on the EBC-C413. Measuring it at the power supply does not account for voltage drop through the wire and connectors.
  • Page 72 Power Supply OFF—The power supply should always be off before it is connected to the I/O Module. Do not hot-plug the EBC-C413 on a host platform that is already powered. I/O Connections OFF—I/O connections should also be off before connecting them to the embedded computer modules or any I/O cards.
  • Page 73 4-40 x 1/4” stainless steel Placing the EBC-C413 on Mounting Standoffs—Be careful when placing the EBC-C413 on the mounting standoffs. Sliding the board around until the standoffs are visible from the top can cause component damage on the bottom of the board.
  • Page 74 Avoid Cutting the EBC-C413—Never use star washers or any fastening hardware that cuts into the EBC-C413. Avoid Over-tightening of Mounting Hardware—Causing the area around the mounting holes to compress could damage interlayer traces around the mounting holes.
  • Page 75 Contact an Applications Engineer—If a diagram or chart in a manual does not seem to match your board, or if you have additional questions, contact a WINSYSTEMS Applications Engineer at: +1-817-274-7553. v1.2 www.winsystems.com Page 75...

  • Page 76: Mechanical Drawings

    EBC-C413/Mechanical Drawings Appendix B. Mechanical Drawings EBC-C413 Dimensions 27.30 mm (152.23 mm) 146.05 mm 140.97 mm 130.76 mm 93.35 mm 17.71 mm 7.62 mm 5.08 mm 0 mm DIA 3.20 mm THRU (8X) 9.50 mm 15.24 mm 18.20 mm 0 mm 9.10 mm...

  • Page 77: Power-On Self-Test (Post) Codes

    EBC-C413/Power-on Self-Test (POST) Codes Appendix C. Power-on Self-Test (POST) Codes If the system hangs before the BIOS can process the error, the value displayed at the I/O port address 80h is the code of the last successful operation. In this case, the screen does not display an error code.
  • Page 78 EBC-C413/Power-on Self-Test (POST) Codes Phase POST Code Value Ranges OEM Reserved 0xE8 - 0xEB Reserved 0xD8 - 0xE0 0xE5 - 0xE7 0xEC - 0xF8 SEC Phase The SEC phase 8-Bit POST code values are shown in the table below. NOTE The shaded rows in the table indicate the related functions are not from InsydeH2O (platform dependent).
  • Page 79 EBC-C413/Power-on Self-Test (POST) Codes Value Functionality Name Description PEI_WATCHDOG_INIT Watchdog timer initialization PEI_MEMORY_INIT Memory Initialization for Normal boot PEI_MEMORY_INIT_FOR_CRISIS Memory Initialization for Crisis Recovery PEI_MEMORY_INSTALL Simple Memory test PEI_TXTPEI TXT function early initialization PEI_SWITCH_STACK Start to use Memory PEI_MEMORY_CALLBACK Set cache for physical memory...
  • Page 80 EBC-C413/Power-on Self-Test (POST) Codes Value Functionality Name Description DXE_RELOCATE_SMBASE Relocate SMM BASE DXE_FIRST_SMI SMI test DXE_VTD_INIT VTD Initialization DXE_BEFORE_CSM16_INIT Legacy BIOS initialization DXE_AFTER_CSM16_INIT Legacy interrupt function initialization DXE_LOAD_ACPI_TABLE ACPI Table Initialization DXE_SB_DISPATCH Setup SB SMM Dispatcher service DXE_SB_IOTRAP_INIT Setup SB IOTRAP service...
  • Page 81 EBC-C413/Power-on Self-Test (POST) Codes Value Functionality Name Description BDS_ENUMERATE_ALL_BOOT_OPTION Get boot device information BDS_END_OF_BOOT_SELECTION End of boot selection BDS_ENTER_SETUP Enter Setup menu BDS_ENTER_BOOT_MANAGER Enter Boot manager BDS_BOOT_DEVICE_SELECT Try to boot system to OS BDS_EFI64_SHADOW_ALL_LEGACY_ROM Shadow Misc Option ROM BDS_ACPI_S3SAVE Save S3 resume required data in RAM...
  • Page 82 EBC-C413/Power-on Self-Test (POST) Codes ACPI The ACPI phase 8-Bit POST code values are shown in the table below. Value Functionality Name Description ASL_ENTER_S1 Prepare to enter S1 ASL_ENTER_S3 Prepare to enter S3 ASL_ENTER_S4 Prepare to enter S4 ASL_ENTER_S5 Prepare to enter S5...

  • Page 83: Warranty Information
