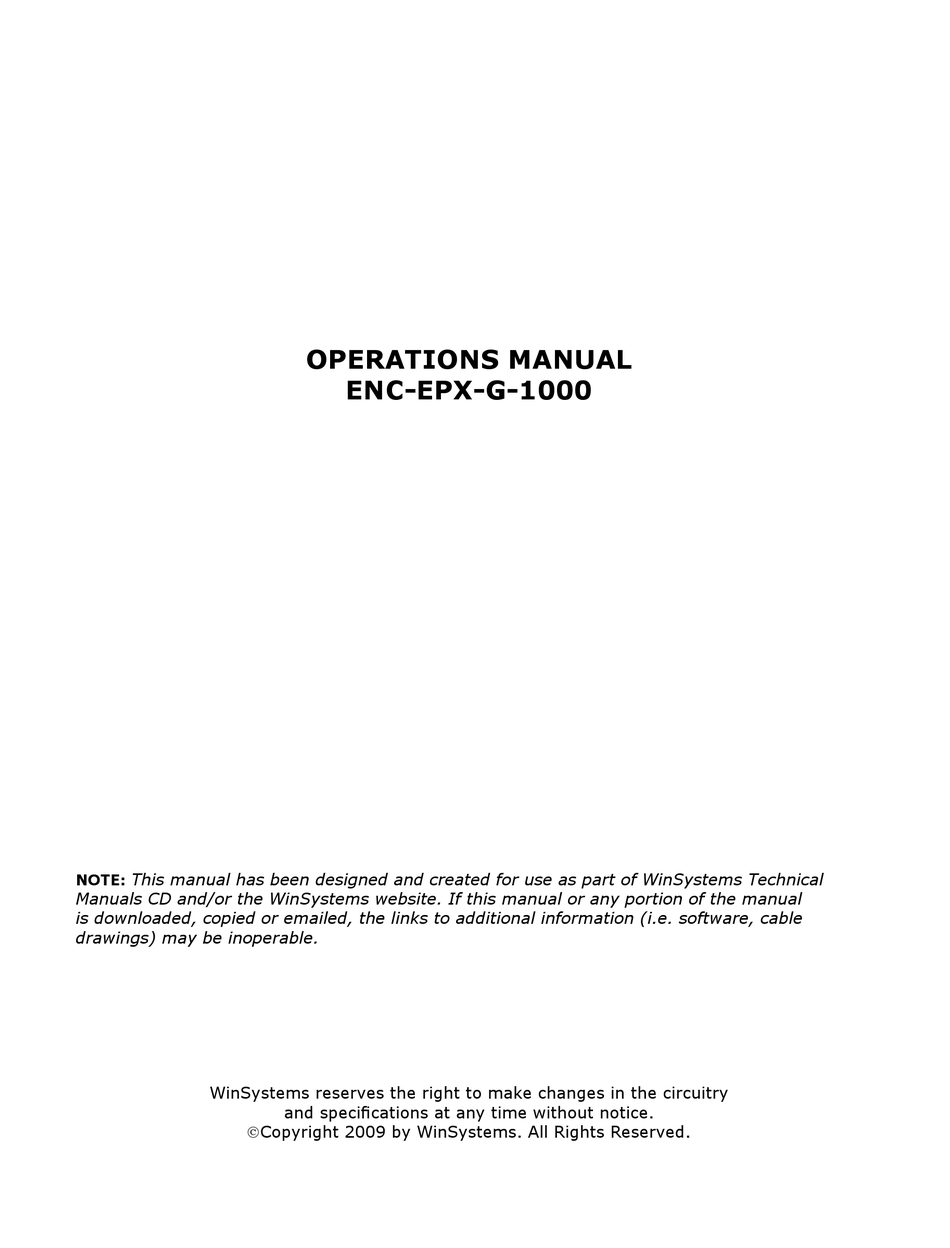

OPERATIONS MANUAL
ENC-EPX-G-1000
This manual has been designed and created for use as part of WinSystems Technical
NOTE:
Manuals CD and/or the WinSystems website. If this manual or any portion of the manual
is downloaded, copied or emailed, the links to additional information (i.e. software, cable
drawings) may be inoperable.
WinSystems reserves the right to make changes in the circuitry
and specifications at any time without notice.
Copyright 2009 by WinSystems. All Rights Reserved.
Advertisement
Table of Contents
Related Manuals for WinSystems ENC-EPX-G-1000
Summary of Contents for WinSystems ENC-EPX-G-1000
- Page 1 This manual has been designed and created for use as part of WinSystems Technical NOTE: Manuals CD and/or the WinSystems website. If this manual or any portion of the manual is downloaded, copied or emailed, the links to additional information (i.e. software, cable drawings) may be inoperable.
- Page 2 REVISION HISTORY ECO Number Date Code Rev Level ORIGINATED 080620 08-167, 08-171 090113...
-
Page 3: Table Of Contents
Table of Contents Introduction General Information Features Ordering Information Construction Cables Mechanical Drawing Three Dimensional Assembly Model 8” Extrusion End Plate-Power End Plate I/O EPX CPU Mount Plate Ethernet Connector Mount Plate Profile Data Specifications WARRANTY REPAIR INFORMATION... - Page 4 This page is intentionally left blank.
-
Page 5: Introduction
Introduction This manual is intended to provide the necessary information regarding configuration and usage of the ENC-EPX-G-1000 enclosure. WinSystems maintains a Technical Support Group to help answer questions regarding usage of the enclosure. For answers to questions not adequately addressed in this manual, contact Technical Support at (817) 274-7553, Monday through Friday, between 8 AM and 5 PM Central Standard Time (CST). -
Page 6: Ordering Information
Contact your WinSystems Applications Engineer for more information about custom units. Construction The ENC-EPX-G-1000 is made up of an extruded aluminum outer cover, two end plates and an EPIC computer module base plate, and can mount in a variety of configurations. The enclosure weighs 2.4 lbs and is RoHS compliant. -
Page 7: Cables
Cables Part Number Description CBL-SET-322-G-ENC-1 ENC-EPX-G-1000 complete cable set for the EPX-GX500 CBL-234-G-1-0.916 14-pin ribbon to 15-pin D-sub CRT adapter CBL-251-G-2-1.0 Multi-I/O Cable CBL-270-G-3-0.583 Audio Access Cable CBL-275-G-2-0.667 USB Cable CBL-316-G-1-0.5 Internal power supply cable CBL-317-G-2-1.5 External power supply cable w/o external termination CBL-327-G-1-1.08... -
Page 8: Mechanical Drawing
Mechanical Drawing Three Dimensional Assembly Model 090113 OPERATIONS MANUAL ENC-EPX-G-1000... -
Page 9: 8" Extrusion
8” Extrusion 090113 OPERATIONS MANUAL ENC-EPX-G-1000... -
Page 10: End Plate-Power
End Plate-Power 090113 OPERATIONS MANUAL ENC-EPX-G-1000... -
Page 11: End Plate I/O
End Plate I/O 090113 OPERATIONS MANUAL ENC-EPX-G-1000... -
Page 12: Epx Cpu Mount Plate
EPX CPU Mount Plate 090113 OPERATIONS MANUAL ENC-EPX-G-1000... -
Page 13: Ethernet Connector Mount Plate
Ethernet Connector Mount Plate 090113 OPERATIONS MANUAL ENC-EPX-G-1000... -
Page 14: Profile Data
A = 9.68" Mounting Flange - Overall B = 8.92" Mount Hole, 1/4", 4 Places C = 5.00" Mount Hole 1/4", 4 Places D = 6.00" Assembly - Overall E = 3.03" Height - Overall F = .08" Clearance 090113 OPERATIONS MANUAL ENC-EPX-G-1000... -
Page 15: Specifications
Specifications Materials Outer cover :Extruded aluminum End plates :0.080” aluminum Base plate :0.625” aluminum Finish :Black paint (except for the clear internal mouting plate) Mechanical Size :9.5”W x 6.0”D x 3.0”H Weight :2.4 lbs 090113 OPERATIONS MANUAL ENC-EPX-G-1000... -
Page 16: Warranty Repair Information
Notwithstanding anything herein to the contrary, this warranty granted by WinSystems to the Customer shall be for the sole benefit of the Customer, and may not be assigned, transferred or conveyed to any third party. The sole obligation of WinSystems for...
