Summary of Contents for WinSystems PCM-VDX-2-512

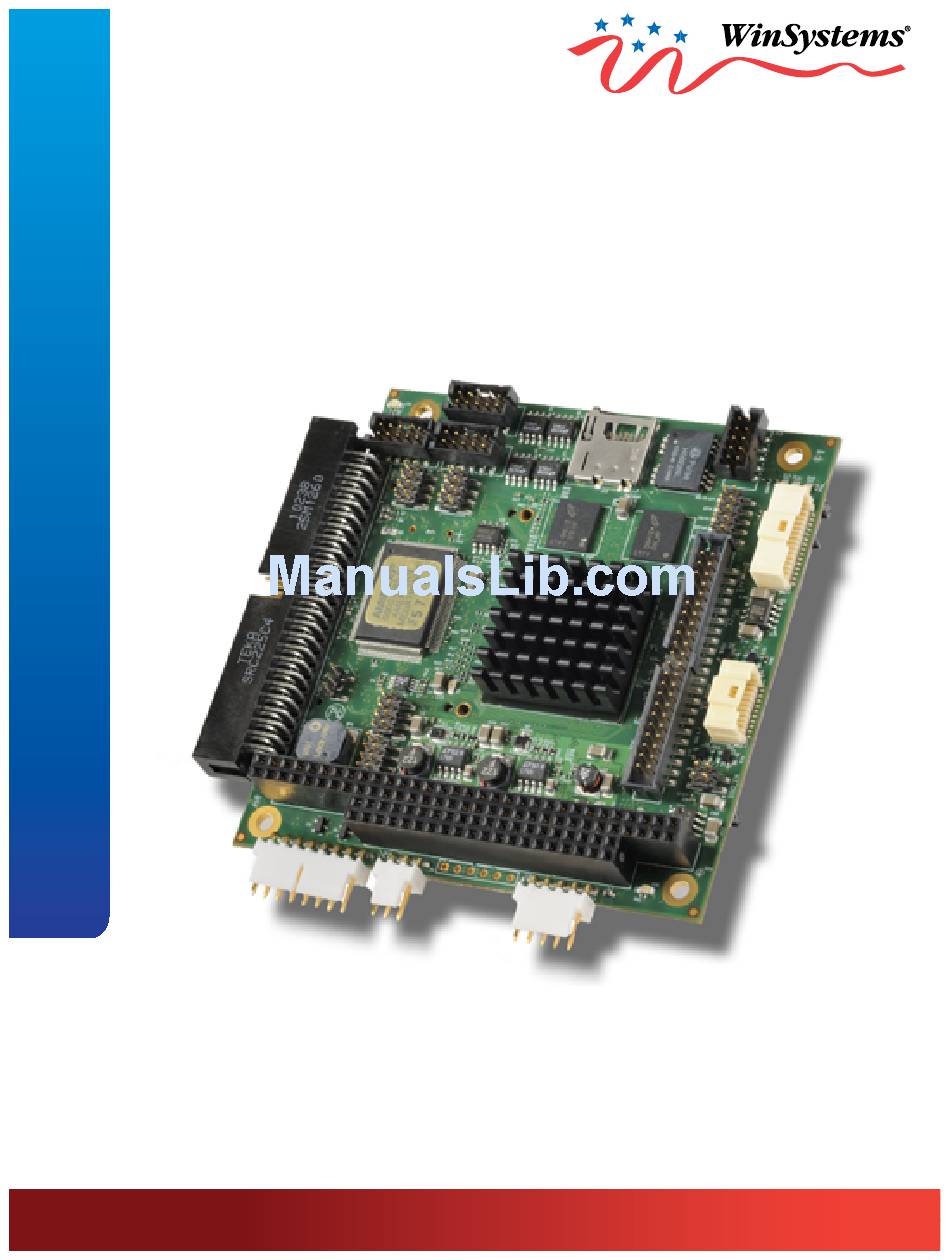

  • Page 1 PCM-VDX-2-512 PC/104 Single Board Computer with Vortex86DX Processor PRODUCT MANUAL WinSystems, Inc. 715 Stadium Drive Arlington, TX 76011 http://www.winsystems.com...

  • Page 2: Product Manual Pcm-Vdx-2-512

    MANUAL REVISION HISTORY P/N 400-0373-000 Revision Date Code ECO Number 110706 Initial Release 110708 110725 110727 110819 111117 120809 120921 12-107 140418 14-39 140703 140808 14-74 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 3: Table Of Contents

    JP7 - On-board Battery (Enable/Disable) SPEAKER SP1 - Speaker MOUSE J11 - Mouse MULTI-I/O J1 - Multi-I/O (COM1, COM2, Keyboard, LPT) SERIAL J5 (COM3), J6 (COM4) J15 - USB PARALLEL ATA J12 - PATA COMPACTFLASH J101 - COMPACTFLASH 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 4 D21 - Status LED DIGITAL I/O J14 - GPIO PC/104 BUS J3, J7 - PC/104 MiniPCI J102 - MiniPCI Socket BIOS SUPPLEMENTAL BIOS SETTINGS STORAGE OPTIONS CABLES SOFTWARE DRIVERS SPECIFICATIONS MECHANICAL DRAWING APPENDIX - A BEST PRACTICES WARRANTY INFORMATION 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 5 This page has been left intentionally blank. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 6: Before You Begin

    This product ships with a heat sink. Product warranty is void if the heat sink is removed from the product. For any questions you may have on WinSystems products, contact our Technical Support Group at (817) 274-7553, Monday through Friday, between 8 AM and 5 PM Central Standard Time (CST).

  • Page 7: Visual Index - Top View (Connectors)

    (COM1/2, Keyboard, LPT) PC/104 (A/B) Power and Reset PC/104 (C/D) External Battery Mouse NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 8: Visual Index - Top View (Jumpers & Leds)

    SSD Enable/ Disable COM2 RS-422/485 Termination PATA Activity COM1 RS-422/485 Termination Status LED NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 9: Visual Index - Bottom View

    Visual Index - Bottom View J103 Redundancy (BIOS-Selectable) J101 CompactFlash J102 MiniPCI 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 10: Jumper Reference

    □ □ □ Enables External Battery (default) 1 2 3 *Applicable to OEM models only. NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 11: Introduction

    INTRODUCTION This manual is intended to provide the necessary information regarding configuration and usage of the PCM-VDX-2-512 single board computer. WinSystems maintains a Technical Support Group to help answer questions not adequately addressed in this manual. Contact Technical Support at (817) 274-7553, Monday through Friday, between 8 AM and 5 PM Central Standard Time (CST).

  • Page 12: System

    Memory The PCM-VDX-2-512 board is built with 512 MB of SDRAM soldered directly to the PCB. Additionally, 512 MB of soldered-on flash SSD is optional for this board. 1 MB of SRAM is included for user data space. This RAM may be battery backed to maintain data integrity during power off conditions.

  • Page 13: Functionality

    Following is a list of I/O ports used on the PCM-VDX-2-512. I/O addresses marked with a ** are generally unused and should be the first choice in I/O address selection for external I/O boards. NOTE: The PCM-VDX-2-512 uses a PnP BIOS resource allocation. Care must be taken to avoid contention with resources allocated by the BIOS. HEX Range...
  • Page 14 DMA High page register 0490h-0499h Instruction counter register 04D0h-04D1h 8259 Edge/level control register 0564h-0568h Advanced Watchdog 0CF8h-0CFFh PCI configuration port D400h-D4FFh On-board LAN FC00h-FC05h SPI Flash BIOS control register FC08h-FC0Dh External SPI Bus control register (output pin configurable GPIO3[0-3]) 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 15: Memory Map

    B000:8000-B000:FFFF CGA display RAM C000:0000-C000:7FFF EGA/VGA BIOS ROM C000:8000-C000:FFFF Boot ROM enable. D000:0000-D700:FFFF Expansion ROM space. D800:0000-DB00:FFFF SPI FLASH Emulation Floppy A Enable DC00:0000-DF00:FFFF Expansion ROM space. E000:0000-E000:FFFF USB Legacy SCSI ROM space. F000:0000-F000:FFFF Motherboard BIOS 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 16: Interrupt Map

    Hardware Interrupts (IRQs) are supported for both PC/104 (ISA) and PCIe devices. The user must reserve IRQs in the BIOS CMOS configuration for use by legacy devices. The PCIe/PnP BIOS will use unreserved IRQs when allocating resources during the boot process. The table below lists IRQ resources as used by the PCM-VDX-2-512. IRQ0 18.2 Hz heartbeat...

  • Page 17: Watchdog Timer

    Watchdog Timer The PCM-VDX-2-512 features an advanced watchdog timer which can be used to guard against software lockups. Two interfaces are provided to the watchdog timer. The Advanced interface is the most flexible and recommended for new designs. The other interface option is provided for software compatibility with older WinSystems single board computers.

  • Page 18: Real-Time Clock/Calendar

    In addition to the time and date keeping functions, the system configuration is kept in CMOS RAM contained within the clock section. A battery must be installed for the real-time clock to retain time and date during a power down. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 19: Connector Reference

    MOLEX 10-11-2083 (Housing) MOLEX 08-55-0124 (Crimp) □ -12V □ +12V □ □ □ □ □ □ PBRESET CBL-174-G-1-1.5 Power is applied to the PCM-VDX-2-512 via the connector at J4. WinSystems offers the cable CBL-174-G-1-1.5 simplify this connection. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 20: Battery Backup

    □ +VBAT □ An optional external battery, connected at J8, supplies the PCM-VDX-2-512 board with standby power for the real-time clock and CMOS setup RAM. An extended temperature lithium battery is available from WinSystems, part number BAT-LTC-E-36-16-1 or BAT-LTC-E-36-27-1. A power supervisory circuit contains the voltage sensing circuit and an internal power switch to route the battery or standby voltage to the circuits selected for backup.

  • Page 21: Mouse

    A PS/2 mouse port provides connection for a compatible mouse and is terminated at J11. An adapter cable, CBL-343-G-1-1.375, is available from WinSystems to simplify the connection. Optionally, a USB mouse can be connected in addition to, or instead of the standard PS/2 mouse. The pinout for the cable is listed above.

  • Page 22: Multi-I/O

    The interface to two of the serial ports (COM1/COM2), the printer port and keyboard are all terminated via the connector at J1. A cable, part number CBL-247-G-1-1.0, is available from WinSystems to adapt to the conventional I/O connectors. The pinout definition for J1 is listed below.
  • Page 23 16-byte FIFO. All serial ports have 16C550-compatible UARTs. The RS-232 transceivers have charge pumps to generate the plus and minus voltages so the PCM-VDX-2-512 only requires +5V to operate. Each port is setup to provide internal diagnostics such as loopback and echo mode on the data stream. An independent, software programmable baud rate generator is selectable from 50 through 115.2 kbps.
  • Page 24 The other port is configured as five input and three output lines. PS/2 Keyboard [6-Position] Description KDATA KCLK This connector supports a PS/2 keyboard interface. The pinout for the cable is listed above. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 25: Serial

    16-byte FIFO. All serial ports have 16C550-compatible UARTs. The RS-232 has a charge pump to generate the plus and minus voltages so the PCM-VDX-2-512 only requires +5V to operate. An independent, software programmable baud rate generator is selectable from 50 through 115.2 kbps. Individual modem handshake control signals are supported for all ports.
  • Page 26 TX (100): Places a 100Ω Resistor across the TX/RX± pair Places a 100Ω Resistor from +5V to TX/RX+ TX/RX(300): Places a 100Ω Resistor between TX/RX± Revision prior to E products Places a 100Ω Resistor from Ground to TX/RX- require a wire-wrap jumper from 1-4. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 27: Usb

    1 3 5 7 9 11 13 15 17 19 CBL-USB4-000-14, CBL-USB4-001-12, CBL-USB4-002-12 A USB cable may be attached to the PCM-VDX-2-512 via the connector for a total of four USB 2.0 ports. Adapter cables CBL-USB4-000-14, CBL-USB4-001-12, and CBL-USB4-002-12 are available from WinSystems for connection.

  • Page 28: Parallel Ata J12 - Pata

    JP5 - SSD Options The PCM-VDX-2-512 can be populated with an optional MicroSD socket at J10. The bootable MicroSD socket shares some signals with the PATA controller and cannot be used in conjunction with other PATA devices. The PATA interface, CompactFlash and on-board Silicon-Disk cannot be used at the same time as the MicroSD card.

  • Page 29: Optional Ssd

    A jumper at JP5 5-6 write protects the on-board Flash disk. When JP5 pins 5 and 6 are open, read/write access is available to the on-board Flash disk. Please contact an Applications Engineer if you are interested in this optional feature. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 30: Mb Sram

    NOTE: SRAM is not applicable for model PCM-VDX-1-256. The PCM-VDX-2-512 board provides 1 MB of battery-backed user SRAM. The 1 MB SRAM is normally used as a solid state disk device by using the appropriate driver for your operating systems.
  • Page 31 (disabling writes) and must be explicitly enabled by writing a 1 to the I/O port at the BASE address +4. To re-enable the write protection, write a 0 at this register. The USSD.SYS device will enable writing only during that time when a sector is being transferred, which contributes greatly to data safety and integrity. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 32: Ethernet

    MOLEX 50394-8100 (Crimp) 10/100 Mbps Ethernet Controllers The PCM-VDX-2-512 is equipped with a Realtek 8100C Ethernet controller (J13) and a Vortex86DX LAN controller (J2). Each provides a standard IEEE 802.3 Ethernet interface for 100/10BASE-T networks. On-board Ethernet activity LEDs D1 and D2 are provided. See tables below for signal and pin definitions.

  • Page 33: Status Led

    1 to I/O port 1EDH. The LED can be turned off by writing a 0 to 1EDH. The Activity LED will turn on and off as packets are received and transmitted. GREEN STATUS 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 34: Digital I/O J14 - Gpio

    CBL-DIO16-001-12 CBL-DIO16-002-12 The PCM-VDX-2-512 Digital I/O consists of sixteen dedicated programmable I/O pins consisting of two individual 8-bit ports. Each port can be confugred as GPIO or Pulse Width Modulation (PWM) outputs. All GPIO pins are independent and can be configured as inputs or outputs. When configured as outputs, pins have 8 mA drive capability and are unterminated.
  • Page 35 3. Set period time that interrupt will be generated while the event loading time of any one of GPI[7-0] is longer than the time parameters. 4. Select IRQ. 5. Set interrupt trigger once or continuously. For more information on programming GPIO, see Software Drivers & Examples section on our website. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 36: Pc/104 Bus

    NOTES: 1. Rows C and D are not required on 8-bit modules. 2. B10 and C19 are key locations. WinSystems uses key pins as connections to GND. 3. Signal timing and function are as specified in ISA specification. 4. Signal source/sink current differ from ISA values.

  • Page 37: Minipci

    J102 - MiniPCI Socket Index The PCM-VDX-2-512 includes a MiniPCI socket at J102. Though the socket can support other devices, it is primarily intended for adding a video module. WinSystems offers MPCI-VGA-Z9S to simplify the connection. Additionally, wireless activity is optional via MiniPCI.

  • Page 38: Bios Supplemental

    Index General Information The PCM-VDX-2-512 includes an AMI BIOS to assure full compatibility with PC operating systems and software. The basic system configuration is stored in battery backed CMOS RAM within the clock/calendar. As an alternative, the BIOS configuration may be stored in internal Flash for operation without a battery. For more information on CMOS...
  • Page 39 System Memory 512MB Size: Speed: 333MHz [05:09:58] System Time System Date: [Tue 08/12/2010] Each available option is listed in detail in the following sections. Navigation to the screens is located at the top of each screen’s layout. 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 40 WARNING: Setting wrong values in below sections may cause system to malfunction. > CPU Configuration > IDE Configuration > Remote Access Configuration > USB Configuration SB LAN Enabled Options: Enabled Disabled [xx xx xx xx xx xx] MAC Address 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 41 Divide By 1 Options: Divide By 1 Divide By 2 Divide By 3 Divide By 4 Divide By 5 Divide By 8 Divide By 16 Divide By 32 Normal CPU Fast Decode Onboard Cycle Options: Normal Fast 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 42 Host & Device Host Device Hard Disk Delay 2 Second Options: Disabled 1 Second 2 Second 4 Second 8 Second OnBoard IDE Operate Mode Legacy Mode Options: Legacy Mode Native Mode Standard IDE Compatible Disabled Options: Disabled Enabled 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 43 Auto Options: Disabled Auto PIO Mode Auto Options: Auto DMA Mode Auto Options: Auto SWDMA0 SWDMA1 SWDMA2 MWDMA0 MWDMA1 MWDMA2 UDMA0 UDMA1 UDMA2 Auto S.M.A.R.T. Options: Auto Disabled Enabled 32Bit Data Transfer Enabled Options: Disabled Enabled 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 44 Auto Options: Disabled Auto PIO Mode Auto Options: Auto DMA Mode Auto Options: Auto SWDMA0 SWDMA1 SWDMA2 MWDMA0 MWDMA1 MWDMA2 UDMA0 UDMA1 UDMA2 S.M.A.R.T. Auto Options: Auto Disabled Enabled 32Bit Data Transfer Enabled Options: Disabled Enabled 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 45 Boot Loader Always ANSI Terminal Type Options: ANSI VT100 VT-UTF8 VT-UTF8 Combo Key Support Enabled Options: Disabled Enabled Sredir Memory Display Delay No Delay Options: No Delay Delay 1 Sec Delay 2 Sec Delay 4 Sec 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 46 USB Port 0,1 Enabled Options: Enabled Disabled Enabled USB Port 2,3 Options: Enabled Disabled USB 2.0 Controller Mode HiSpeed Options: FullSpeed HiSpeed BIOS EHCI Hand-Off Enabled Options: Disabled Enabled USB Beep Message Enabled Options: Disabled Enabled 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 47 Warning: Setting wrong values in below sections may cause system to malfunction. Plug & Play O/S Options: PCI Latency Timer Options: Allocate IRQ to PCI VGA Options: Palette Snooping Disabled Options: Disabled Enabled PCI IDE BusMaster Enabled Options: Disabled Enabled 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 48 Reserved IRQ6 Available Options: Available Reserved IRQ7 Available Options: Available Reserved IRQ9 Available Options: Available Reserved IRQ10 Available Options: Available Reserved IRQ11 Available Options: Available Reserved IRQ12 Available Options: Available Reserved IRQ15 Available Options: Available Reserved 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 49 Available Reserved DMA Channel 3 Available Options: Available Reserved Available DMA Channel 5 Options: Available Reserved DMA Channel 6 Available Options: Available Reserved Available DMA Channel 7 Options: Available Reserved Reserved Memory Size Disabled Options: Disabled 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 50 Disabled The PCM-VDX-2-512 BIOS will not display devices which are not connected, regardless of their location in the boot order. The boot order can be adjusted by connecting ALL the desired media devices, setting the boot order and then selecting Save Custom Defaults.
  • Page 51 Bootup Num-Lock Options: PS/2 Mouse Support Auto Options: Disabled Enabled Auto Interrupt 19 Capture Enabled Options: Disabled Enabled Disabled Boot From LAN Options: Disabled Used INT 18h Used INT 19h PnP/BEV(BBS) Beep Function Disabled Options: Enabled Disabled 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 52 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. Security Supervisor Password Is: Not Installed User Password Is: Not Installed Change Supervisor Password Change User Password Boot Sector Virus Protection Disabled Options: Disabled Enabled 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 53 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. Chipset Advanced Chipset Settings Warning: Setting wrong values in below sections may cause system to malfunction. > NorthBridge Configuration > SouthBridge Configuration 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 54 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. Chipset > NorthBridge Chipset Configuration DRAM Timing Setting By BIOS Options: Manual BIOS 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 55 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. Chipset > SouthBridge Chipset Configuration Disabled P.O.S.T. Forward To Options: Disabled COM1 > ISA Configuration > Serial/Parallel Port Configuration > WatchDog Configuration > Multi-Function Port Configuration > Redundancy Control Configuration 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 56 1 clock 2 clock 3 clock 4 clock 5 clock 6 clock 7 clock ISA 8bits Memory wait-state 4 clock Options: 1 clock 2 clock 3 clock 4 clock 5 clock 6 clock 7 clock 8 clock 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 57 Serial Port IRQ 2 IRQ3 Options: IRQ3 IRQ4 IRQ5 IRQ6 IRQ7 IRQ9 IRQ10 IRQ11 IRQ12 IRQ14 IRQ15 Serial Port Baud Rate 115200 BPS Options: 2400 BPS 4800 BPS 9600 BPS 19200 BPS 38400 BPS 57600 BPS 115200 BPS 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 58 Serial Port IRQ 4 Options: IRQ3 IRQ4 IRQ5 IRQ6 IRQ7 IRQ9 IRQ10 IRQ11 IRQ12 IRQ14 IRQ15 Serial Port Baud Rate 115200 BPS Options: 2400 BPS 4800 BPS 9600 BPS 19200 BPS 38400 BPS 57600 BPS 115200 BPS 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 59 SB Serial Port 3 Mode RS232 Options: RS232 RS422 RTS RS422 AUTO RS485 RTS RS485 RTS+ECHO RS485 AUTO RS485 AUTO+ECHO RS232 SB Serial Port 4 Mode Options: RS232 RS422 RTS RS422 AUTO RS485 RTS RS485 RTS+ECHO RS485 AUTO RS485 AUTO+ECHO 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 60 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. Chipset > SouthBridge Chipset Configuration > WatchDog Configuration Watchdog Timer Options: 2 Sec 20 Sec 200 Sec 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 61 GPIO 8051 P0 PWM00..PWM07 Port0 Bit0 Direction Options: Port0 Bit1 Direction Options: Port0 Bit2 Direction Options: Port0 Bit3 Direction Options: Port0 Bit4 Direction Options: Port0 Bit5 Direction Options: Port0 Bit6 Direction Options: Port0 Bit7 Direction Options: 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 62 GPIO 8051 P1 PWM08..PWM15 Port1 Bit0 Direction Options: Port1 Bit1 Direction Options: Port1 Bit2 Direction Options: Port1 Bit3 Direction Options: Port1 Bit4 Direction Options: Port1 Bit5 Direction Options: Port1 Bit6 Direction Options: Port1 Bit7 Direction Options: 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 63 LPT PORT System Fail Normal Options: Normal TRI-State UART1 System Fail Normal Options: Normal TRI-State UART2 System Fail Normal Options: Normal TRI-State UART3 System Fail Normal Options: Normal TRI-State UART4 System Fail Normal Options: Normal TRI-State 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 64 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. Exit Save Changes and Exit Discard Changes and Exit Discard Changes Load Factory Defaults Save Custom Defaults Load Custom Defaults 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 65: Bios Settings Storage Options

    BIOS SETTINGS STORAGE OPTIONS CMOS Storage Locations The PCM-VDX-2-512’s BIOS configuration is stored in three (3) locations: (1) CMOS RAM (nonvolatile if battery backed) (2) FLASH PROM (nonvolatile storage for factory defaults) (3) Internal Flash (for custom settings) Saving the CMOS Configuration The Real-Time Clock and the CMOS RAM settings can be maintained by an optional battery when the board is powered off.

  • Page 66: Cables

    2-mm 2x5 to 2-mm 2x6 connector (2 each) ADP-IO-G-EBC0364 2 Ethernet, 4 USB BAT-LTC-E-36-16-1 External 3.6V, 1600 mAH battery with plug-in connector CBL-SET-373-G-MIN Minimal Cable set for PCM-VDX-2-512 includes: CBL-174-G-1-1.5 18-in., 8-wire power cable CBL-247-G-1-1.0 1-ft., Multi-I/O adapter BAT-LTC-E-36-16-1 External 3.6V, 1600 mAH battery with plug-in connector Additional Cables CBL-174-G-1-1.5...

  • Page 67: Software Drivers

    SOFTWARE DRIVERS See the WinSystems website. 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 68: Specifications

    SPECIFICATIONS Electrical +5VDC ±5% Typical 1.2A MTBF 11.9 years Mechanical Dimensions 3.6” x 3.8” (90 mm x 96 mm) Weight 3.6 oz (102g) Environmental Operating Temperature -40°C to 85°C 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 69: Mechanical Drawing

    MECHANICAL DRAWING 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 70 140808 PRODUCT MANUAL PCM-VDX-2-512...

  • Page 71: Best Practices

    Use the largest gauge wire that you can. Most connector manufacturers have a maximum gauge wire they recommend for their pins. Try going one size larger; it usually works and the extra copper will help your system perform properly over time. 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 72 Contact Points WinSystems’ boards mostly use connectors with gold finish contacts. Gold finish contacts are used exclusively on high speed connections. Power and lower speed peripheral connectors may use a tin finish as an alternative contact surface. It is critical that the contact material in the mating connectors is matched properly (gold to gold and tin to tin).
  • Page 73 If power is applied with these pins misaligned, it will cause the I/O board to be damaged beyond repair. 140808 PRODUCT MANUAL PCM-VDX-2-512...
  • Page 74 Every single board computer has an Operations manual or Product manual. Manual Updates Operations/Product manuals are updated often. Periodicially check the WinSystems website (http://www.winsystems.com) for revisions. Check Pinouts Always check the pinout and connector locations in the manual before plugging in a cable. Many single board computers will have identical headers for different functions and plugging a cable into the wrong header can have disastrous results.

  • Page 75: Warranty Information

    WARRANTY INFORMATION (http://www.winsystems.com/warranty.cfm) WinSystems warrants to Customer that for a period of two (2) years from the date of shipment any Products and Software purchased or licensed hereunder which have been developed or manufactured by WinSystems shall be free of any material defects and shall perform substantially in accordance with WinSystems’...
