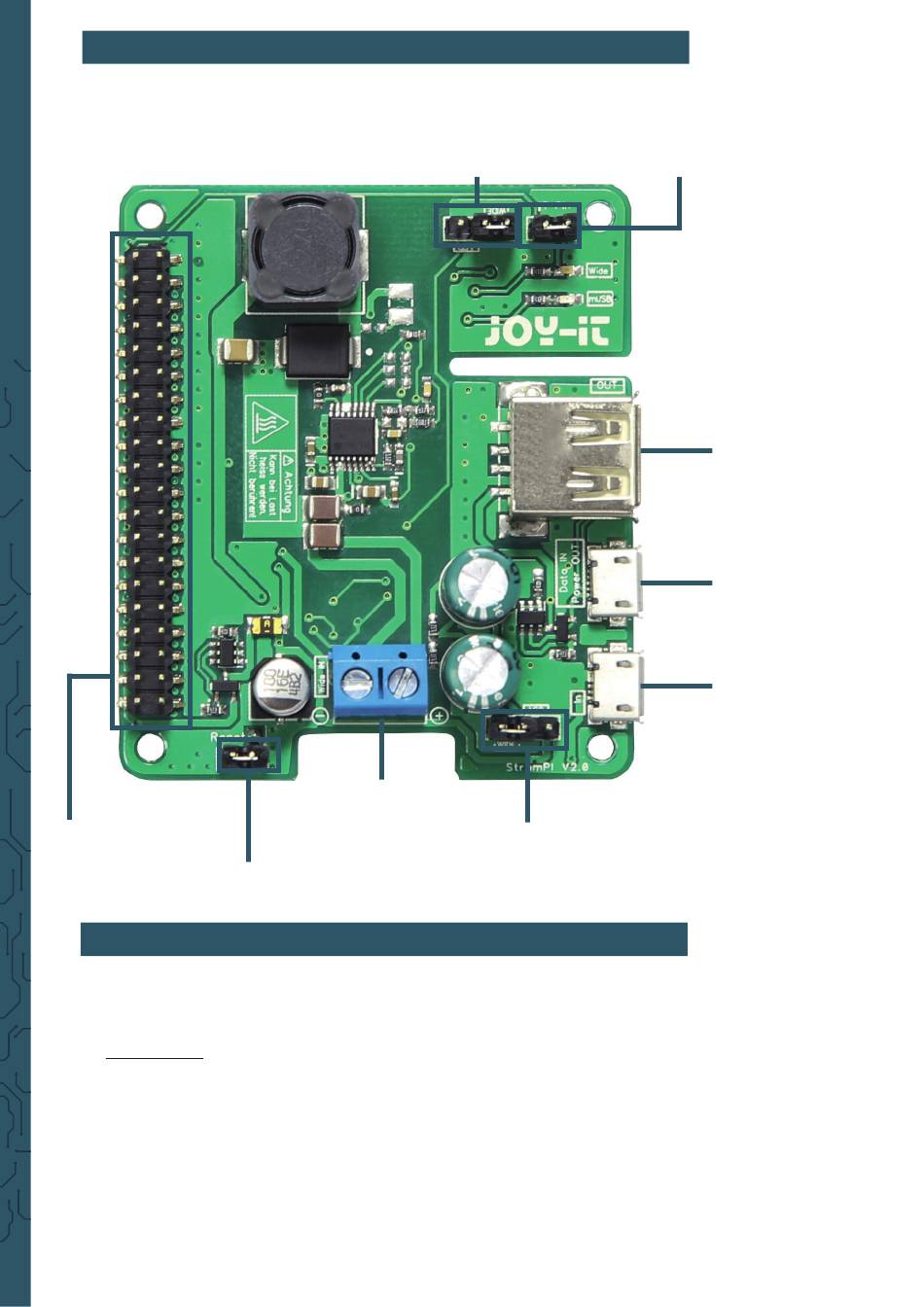

2. PIN ASSIGNMENT
GPIO - port
reset - switch
3. OPERATING MODES
The StromPi 2 has 2 operating modes UPS and Wide operation which are
explained in the following.
UPS-mode
The UPS-mode operates especially battery-saving. The wide range voltage
source is only charged in standby with 20 - 80 µA. This standby power
consumption is is very low so that the maintenance cycles of possible
bypass batteries / batteries can be accordingly long.
For one year of a standby operation, this circuit takes for example from
175 mAh to 700 mAh out of the wide range voltage source.
1. mode switch
(USV | Wide)
wide-range (6 - 61 V)
voltage input
(secondary)
T - PIN
2. mode
switch
high-power
USB output
Data input (for high-
power USB output)
and current output
microUSB (5 V)
voltage input
(primary)
