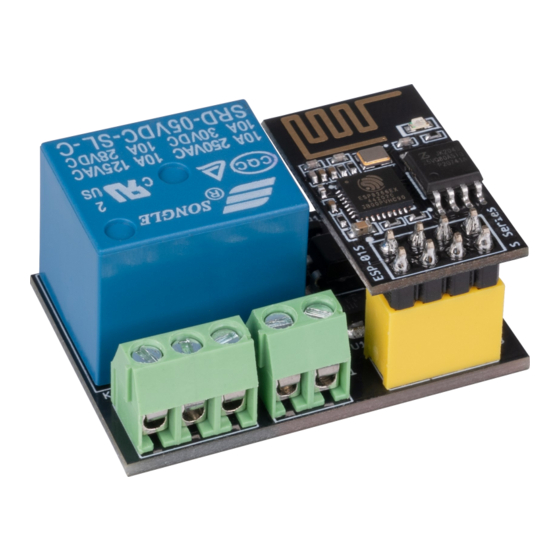

ESP-01S RELAY MODULE
Remotely controllable relay module
1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up
and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Joy-it ESP-01S
Summary of Contents for Joy-it ESP-01S
- Page 1 ESP-01S RELAY MODULE Remotely controllable relay module 1. GENERAL INFORMATION Dear customer, thank you very much for choosing our product. In following, we will introduce you to what to observe while starting up and using this product. Should you encounter any unexpected problems during use, please do...
- Page 2 2. PROGRAMMING THE ESP-01S RELAY MODULE To use the ESP-01S relay module, you must first program the ESP-01S supplied on the product. For this, we recommend programming the ESP-01S with the ESP8266 PROG from 3. First, the Arduino development environment must be prepared for use with the ESP8266.
- Page 3 Once you have successfully installed the board, you can select the Gene- ric ESP8266 Module from the list of available boards. Your Arduino development environment is now prepared for the use with an ESP8266.
- Page 4 3. CODE EXAMPLE Now you can simply copy the following code example into your Arduino IDE and upload it to your ESP-01S. #include <ESP8266WiFi.h> const char* ssid = "MeineWlanSSID"; // Enter your router or WiFi SSID here const char* password = "MeinWlanPasswort";...
- Page 5 ESP-01S programmer out of your PC and set the small switch on the side of PROG to UART so that you can see the serial output of the ESP-01S in your IDE. Once you have flipped the switch, you can put the programmer of your ESP-01S back into your PC and view the serial output of your ESP- 01S to see if the connection to your WiFi was successful.
- Page 6 After programming the ESP-01S, you can now unplug the ESP8266-PROG from your PC and remove the ESP-01S. In the next step, you have to make sure that you plug your ESP-01S cor- rectly on the relay module. In the following figure it is color-coded which pin of the ESP-01S belongs to which pin on the relay module.
- Page 7 SIMAC Electronics GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germa- Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by email at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
