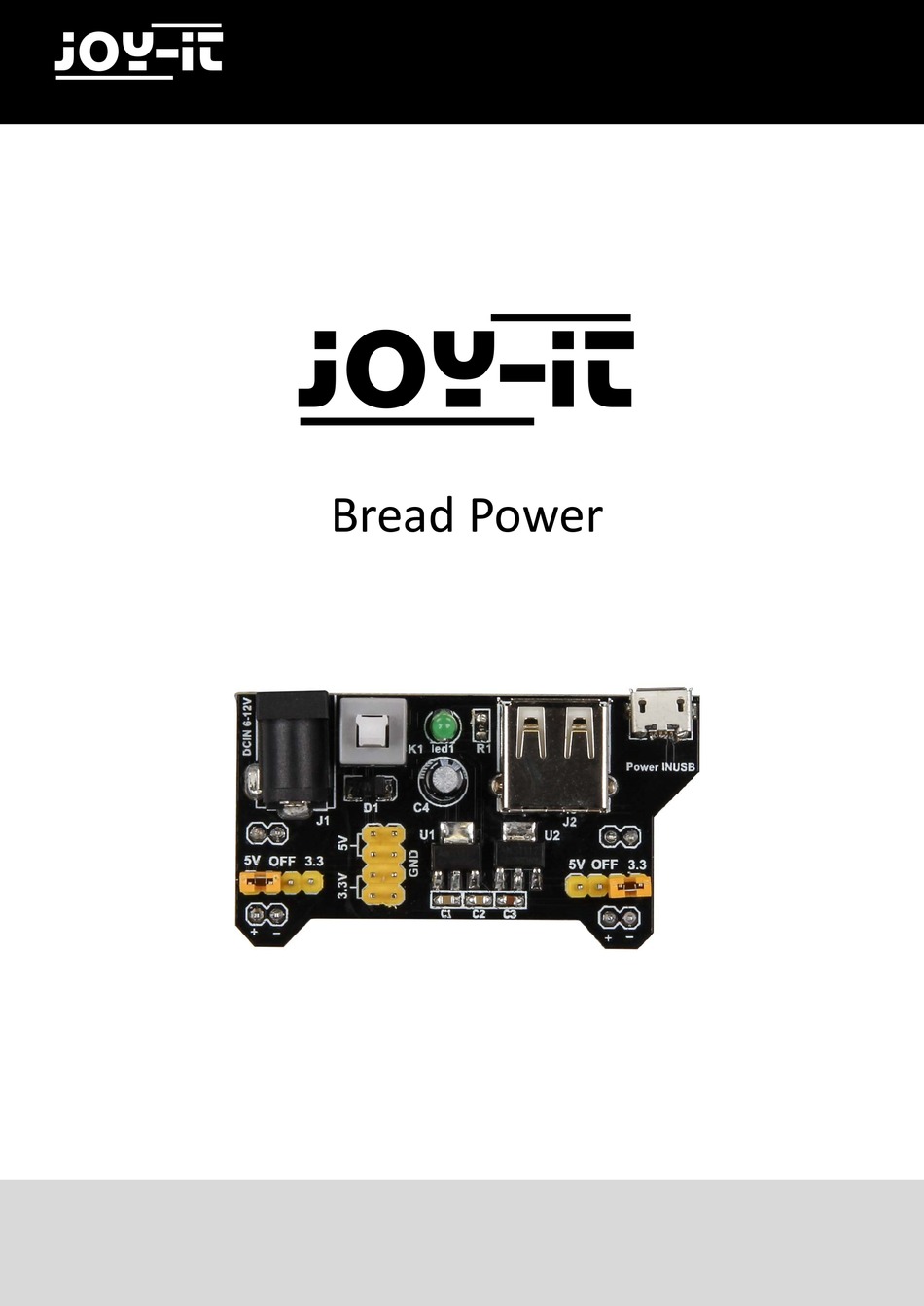

- Page 1 Bread Power Ausgabe 04.01.2017 Copyright by Joy-IT...
- Page 2 Bread Power Index Technical specification Installation Usage Security informations Ausgabe 04.01.2017 Copyright by Joy-IT...
-
Page 3: Technical Specification
Box contents 4250236814728 The Bread Power—extension-board can extend your breadboard with a power supply by simply attaching Attached to a breadboard, it can include a power supply between 6V and 12B, or an USB-connection. While using another power-supply, the USB-Port can also be used as output. -
Page 4: Installation
Installation Connect the Bread Power—extension board, as seen below, to your breadboard. The extension board is ready to use. Usage Ausgabe 04.01.2017 Copyright by Joy-IT... - Page 5 We can not ensure a perfect function by using third-party supplies. This especially counts for foreign power-adapters. The device can be damaged by higher voltage and could cause fire or lead to damage by an electric shock. Ausgabe 04.01.2017 Copyright by Joy-IT...
