Joy-it VAO10020 Manual

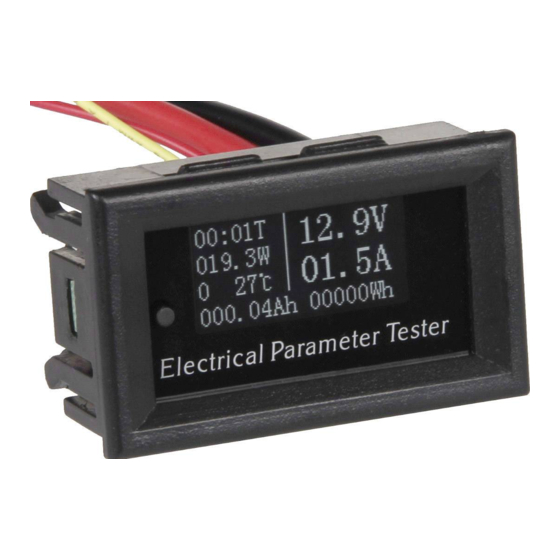

Oled multifunction meter

Download this manual

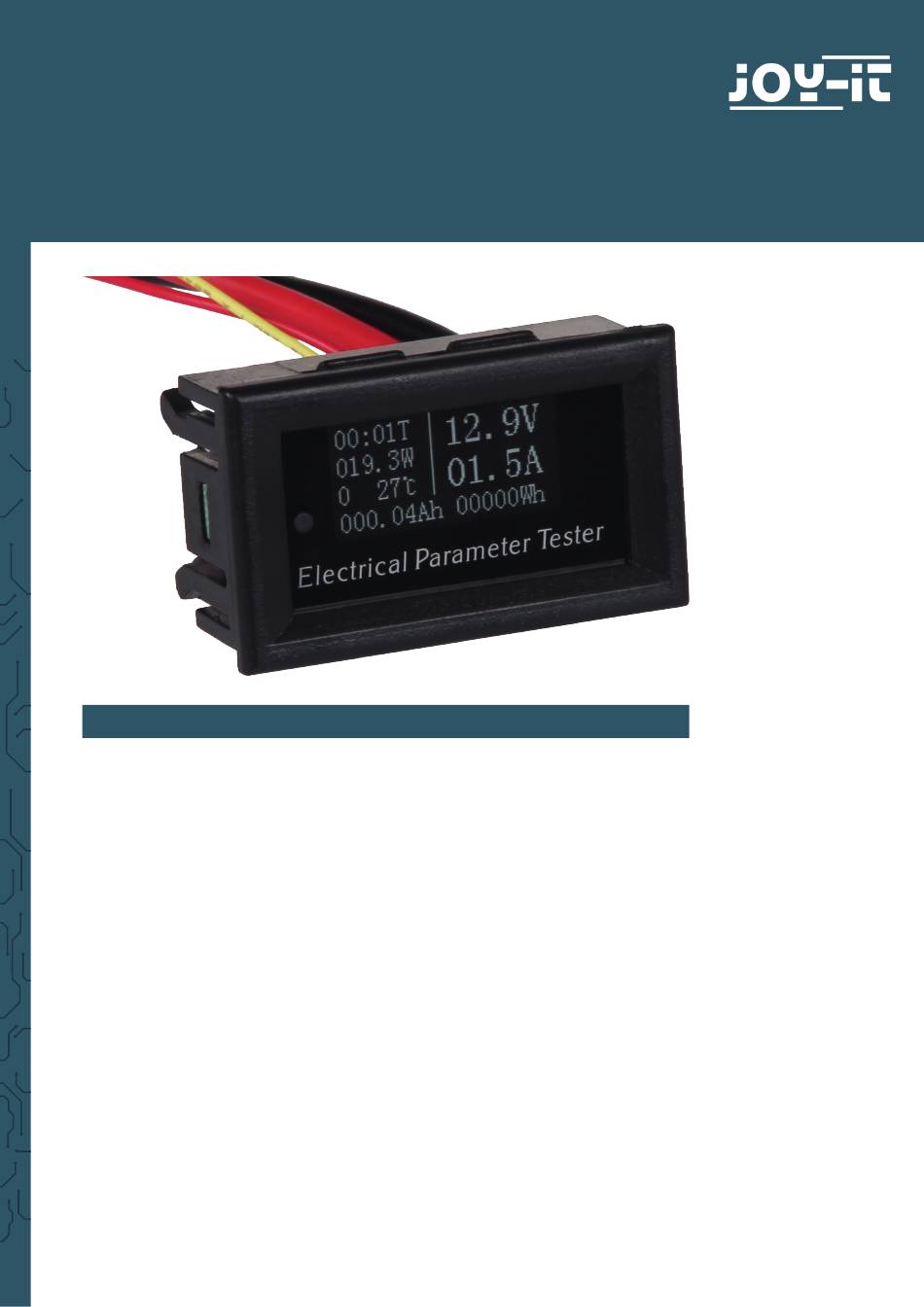

OLED MULTIFUNCTION METER

VAO10020

1. GENERAL INFORMATION

Dear customer,

thank you for choosing our product. In the following, we will show you how

to use this device.

Should you encounter any unexpected problems during use, please do not

hesitate to contact us.

Need help?

Do you have a question about the VAO10020 and is the answer not in the manual?

Page 1 OLED MULTIFUNCTION METER VAO10020 1. GENERAL INFORMATION Dear customer, thank you for choosing our product. In the following, we will show you how to use this device. Should you encounter any unexpected problems during use, please do not hesitate to contact us.
Page 2: Technical Specifications
2. TECHNICAL SPECIFICATIONS Operating voltage 5 - 60 V Current at 5 V approx. 15 mA Current at 12 V approx. 7 mA 0 - 99,9 V / 0 - 20 A / 0 - 2000 W / Measuring ranges 0 - 9999 kWh / 0 - 9999,9 Ah / 0 - 99 h 59 min / -10°...
Page 3 4. OPERTION This measuring instrument is capable of saving 2 data records (record 0, record 1). Through a short press on the button which is on the left side from the display, it is possible to retrieve the next record. In case of a failure of the power supply, data record 1 saves the last saved value and continues from this value after the restoring of the power supply.
Page 4 Usage of the voltage being measured “ground tester“ is not connected Usage with a DC - DC converter “ground tester“ is not connected...
Page 5: Technical Drawing
If any questions remained open or problems may arise after your purchase, we are available by e-mail, telephone and ticket support system to answer these. E-Mail: service@joy-it.net Ticket-System: http://support.joy-it.net Telephone: +49 (0)2845 98469 – 66 (10 - 17 o‘clock) For further information visit our website: www.joy-it.net...
