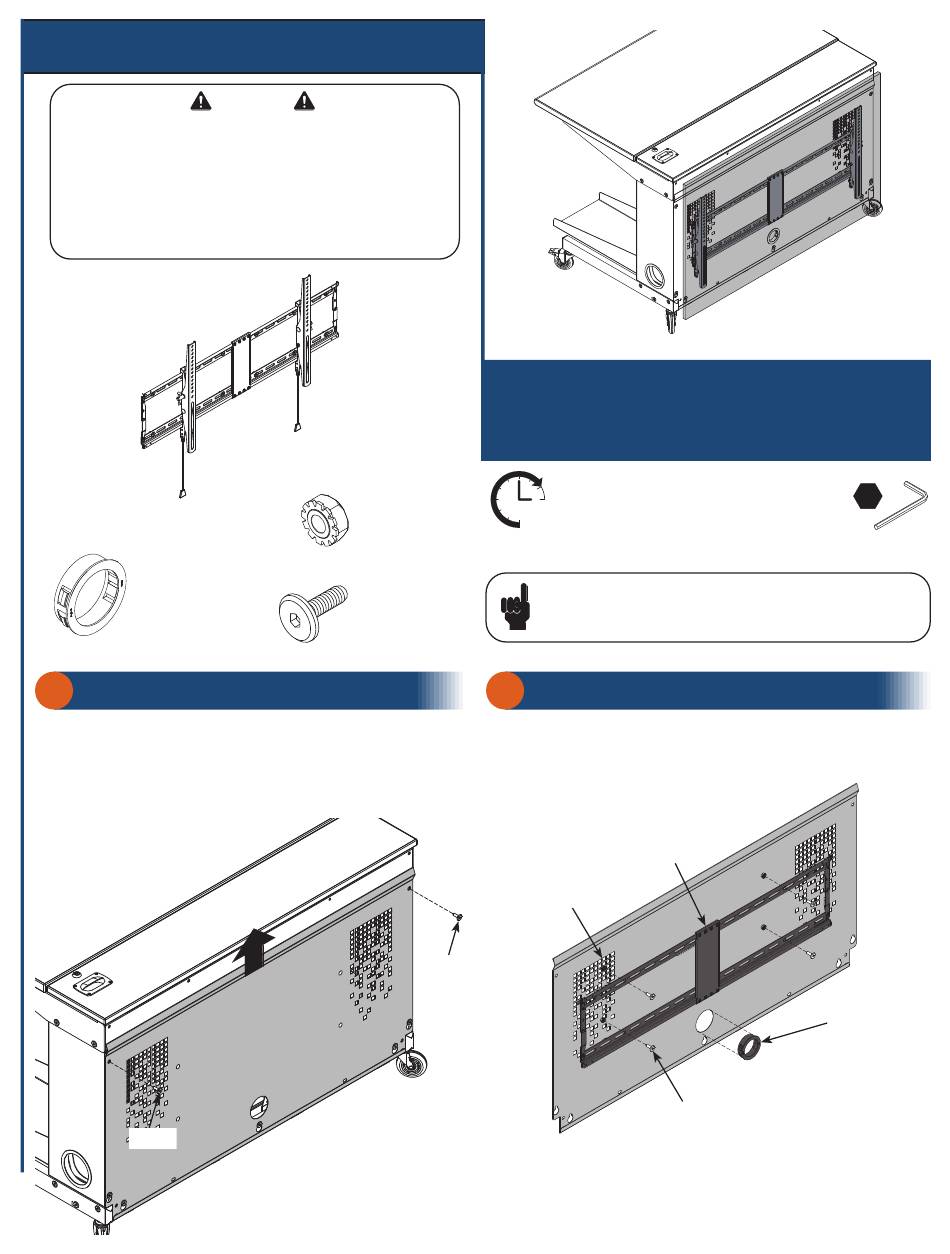

Spectrum Industries 95557 Assembly Instructions

Assembly Instructions
Assembly Instructions
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 059984
2" Grommet
1
Remove audience-side panel
1. Remove the (2) upper JC bolts on the audience-side panel.
2. Lift up the panel to release from the lower JC bolts. If necessary,
slightly loosen the lower JC bolts to remove panel.
d i e
A u
JC bolt
Important
(1) 0193628
Display mount
(4) 0106543
1/4-20 Keps nut
(4) 044541
1/4-20 x 20mm
JC bolt
l
a n e
e p
- s i d
n c e
Audience-side display mount
for Champions Desk
15-20
min
Assembly tip: Do not tighten component fasteners completely
until all have been installed. Keeping them loose will help with
alignment between parts during assembly.
2
Install display mount to panel
1. Center and install the display mount bracket on the panel.
2. Secure with (4) 1/4-20 x 20mm JC bolts and (4) 1/4-20 Keps nuts.
3. Install grommet in audience-side panel.
1/4-20 Keps nut
X4
(on back)
JC bolt
95557
Display mount
bracket
1/4-20 x 20mm
X4
JC bolt
0199829 Page 1 of 2
4mm
2" Grommet
