GROHE F-digital

.......4 DK .......8

Design & Quality Engineering GROHE Germany

99.766.031/ÄM 220954/09.12

For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk

36 293

36 290

36 296

.......5

.......9

.....13

.......6

.....10

.....14

FIN

.......7

.....11

.....15

.....12

.....16

UAE

.....17

.....21

.....18

.....22

EST

.....19

.....23

SLO

.....20

.....24

RUS

.....25

.....26

.....27

.....28

Need help?

Do you have a question about the F-digital 36 293 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grohe F-digital 36 293

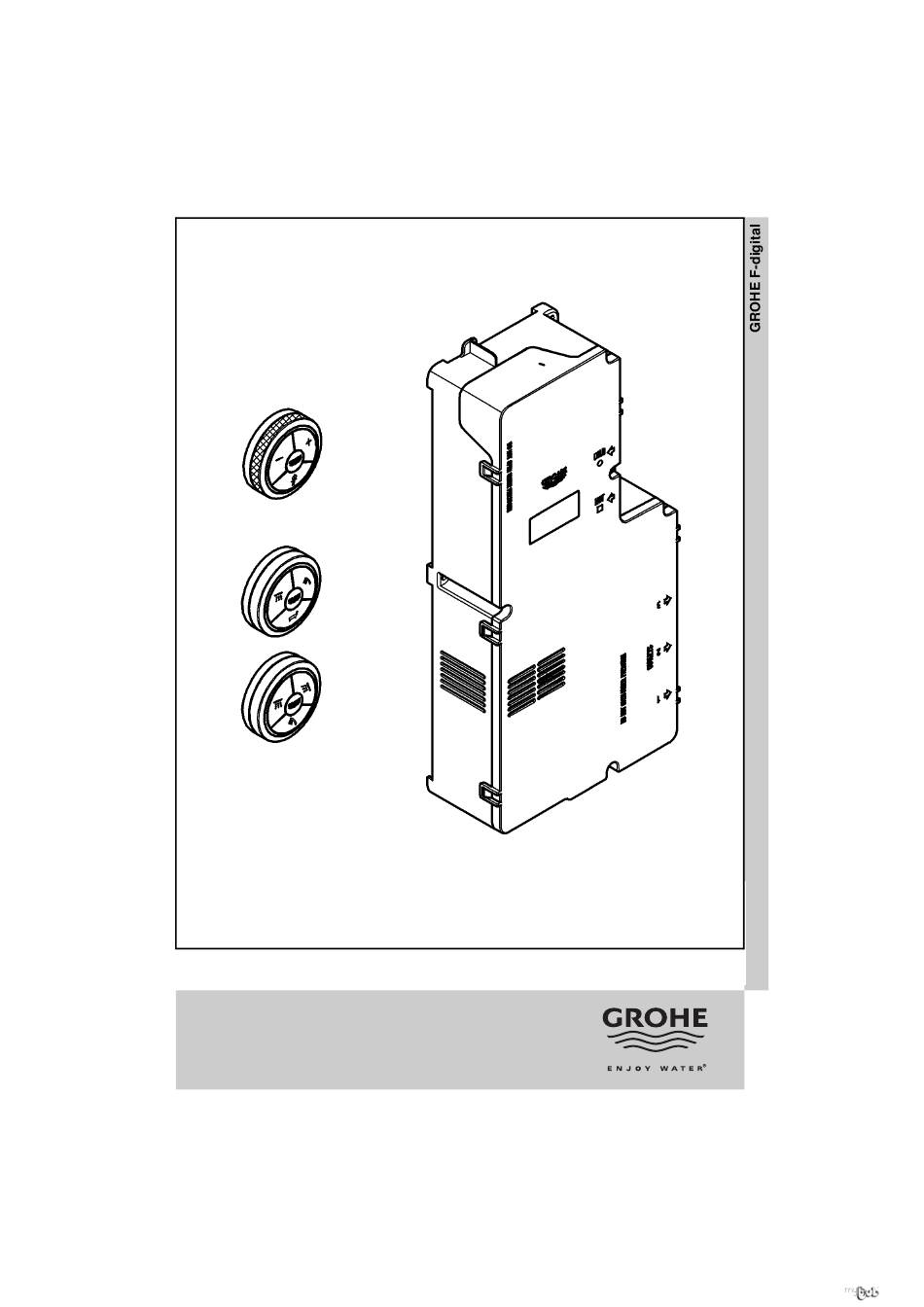

Page 1 ..3 ..7 ..11 ..15 ..19 ..23 ..27 GROHE F-digital ..4 DK ..8 ..12 ..16 ..20 ..24 ..28 Design & Quality Engineering GROHE Germany 99.766.031/ÄM 220954/09.12 For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
Page 2 Please pass these instructions on to the end user of the fitting! For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
Page 3 36 290 Ø25 0.75mm 27mm 36 293 36 296 For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
Page 4 - Functional unit IP 20 Functioning Principle - Digital controller/diverter IP X5 GROHE F-digital is a wireless controlled thermostatic mixer - Transceiver IP X5 with wax cartridge. Water flow and temperature can be - Switching power supply housing IP 65 changed and set using the Digital Controller and Diverter.
Page 5 • A vacant tube must be used to connect the functional unit to the power supply unit and to the transceiver. The vacant For installation without a distribution cabinet the GROHE tubes are not in the scope of delivery. special accessory switching power supply housing •...
Page 6 Operation of the digital controller, see fold-out page IV, Fig. [14]. Button Description Visualisation Start/Stop button Starts and stops the water flow at the saved water temperature and The temperature is represented by flow rate. the illuminated ring. Pause button Interrupts the flow of water.
Page 7 Digital controller selection menu , see fold-out page IV, Fig. [14]. Button Description Visualisation F1 - Automatic filling/safety shut-off Start the selection menu (only if there is no water flowing) - / + Illuminated ring flashes red 1x - Select by pressing and holding the buttons simultaneously: •...
Page 8 In the event of problems with installation, please switch off Fig. [4]. the voltage supply and consult a specialist installer or the GROHE Service Hotline via email at 2. Remove screw (L), see fold-out page IV, Fig. [16]. TechnicalSupport-HQ@grohe.com. 3. Detach plug (M1) and remove servo motor (M).
Page 9 - Calibrate functional unit, see section Selection menu • Software malfunction - Switch off the voltage supply and consult a specialist installer or the GROHE Service Hotline Lower segment flashes 1x Yellow • Hard- or software malfunction - Switch off the voltage supply and consult a...
Page 10 *36 369 For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
Page 11 99.729.X31 38 °C *19 001 34mm For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
Page 12 For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
