GROHE F-DIGITAL
DESIGN + ENGINEERING
GROHE GERMANY
99.766.231/ÄM 228115/05.15
www.grohe.com
36 290
36 296
...... 1
....21
NL
GB
...... 5
....25
GB
S
...... 9
....29
F
DK
.... 13
....33
E
N
.... 17
....37
I
FIN
36 293
.... 41
P
....62
PL
.... 45
....66
TR
UAE
.... 49
....70
GR
SK
.... 54
....74
CZ
SLO
.... 58
....78
H
HR
.... 82
..102
BG
CN
.... 86
..106
UA
EST
.... 90
.. 110
LV
RUS
.... 94
LT
.... 98
RO
Advertisement
Table of Contents
Related Manuals for Grohe 36 290
Summary of Contents for Grohe 36 290

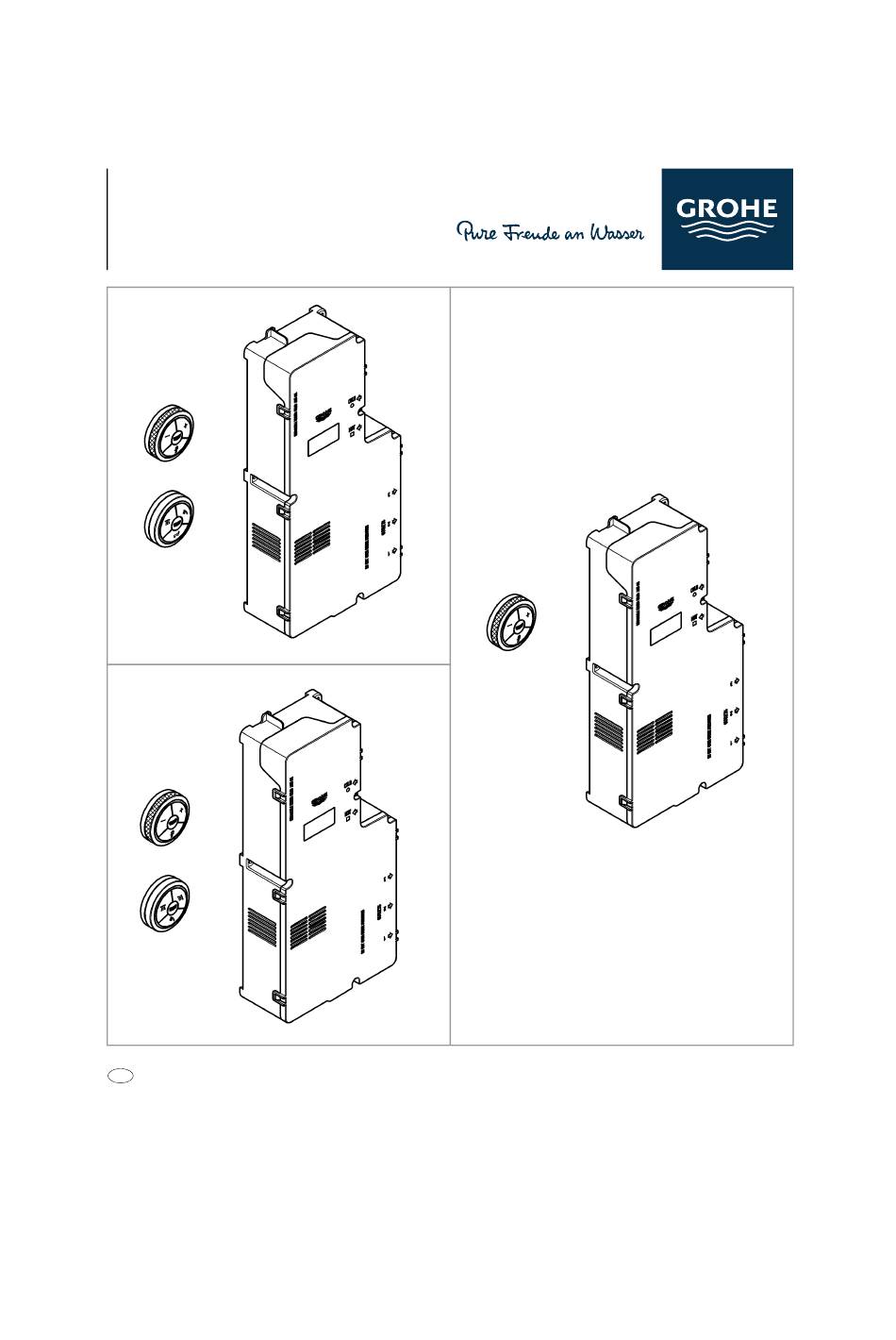

- Page 1 GROHE F-DIGITAL DESIGN + ENGINEERING GROHE GERMANY 99.766.231/ÄM 228115/05.15 www.grohe.com 36 293 36 290 36 296 ..1 ..21 ..41 ..62 ..82 ..102 ..5 ..25 ..45 ..66 ..86 ..106 ..9 ..29 ..49 ..70 ..
- Page 2 max. 5m min. max. min. max. max. min. min. 12mm min. min. max. max. max. 1x *65 815 0,75mm...
- Page 3 27mm 38 °C *19 001 *19 332 Ø5...
- Page 4 Functioning Principle • Operational rating: max. 70 minutes on, 30 minutes off GROHE F-digital is a wireless controlled thermostatic mixer with wax New Water Regulations cartridge. Water flow and temperature can be changed and set using the Please ensure plumbing installation complies with the requirements of UK Digital Controller and Diverter.
-
Page 5: Electrical Installation
The pump cannot be allowed to run dry and the functional unit will stop to [3]. this by switching off the functional unit and the lower segment of the digital To simplify the maintenance, GROHE recommends the installation of controller flashes green 4x. isolating valves and detachable connections in the inspection chamber. - Page 6 Operation of the digital controller, see fold-out page IV, Fig. [24] . Button Description Visualization Start/Stop button The temperature is represented by the illuminated ring. Starts and stops the water flow at the saved water temperature and flow rate. [from blue to orange (safety stop) to red]. Pause button Interrupts the water flow.
- Page 7 Function F2 - Setting mode (adaption to the local conditions), see f old-out page IV, Figs. [24] and [25]. Button Description Visualization Start the function menu - Select the function by simultaneously pressing and holding the - / + buttons. Illuminated ring flashes 1x red.
-
Page 8: Maintenance
In the event of problems with installation, please switch off the voltage Assemble in reverse order. supply and consult a specialist installer or the GROHE Service Hotline via Observe the correct installation position of the thermostatic compact email at TechnicalSupport-HQ@grohe.com. - Page 10 +49 571 3989 333 +372 6616354 +372 6616354 +420 277 004 190 impressum@grohe.de grohe@grohe.ee grohe@grohe.ee grohe-cz@grohe.com +43 1 68060 +33 1 49972900 +1 800 80 6570 +66 2610 3685 info-at@grohe.com marketing-fr@grohe.com info-singapore@grohe.com info-singapore@grohe.com Argent Sydney +358 10 8201100 +47 22 072070...
