ADTRAN NetVanta 1110 Quick Start Manual page 3

C
ONNECTING THE
1. With a Phillips head screwdriver, remove the cover plates from both the NetVanta 1110
RPS and the NetVanta 1238 PoE's RPS receptacles on the rear panels of the units.
2. Compare the TOP surfaces of the connectors on either end of the RPS cable. On one
connector, the right edge of the tab covering the pins is flush with the pins, while on the
other connector, the tab is offset to the right of the pins approximately 0.16 inch (see
Figure 3).
NetVanta 1238 PoE
3. With the TOP surface of the connector with the offset tab facing upward, insert it into the
receptacle labeled RPS OUTPUT located on the rear panel of the NetVanta 1110 RPS see
Figure 3). Press the connector until the pins are fully inserted and the base of the connector
is flush with the unit.
Important! Do not use excessive force. If the connector does not insert easily, check to
ensure you are inserting the correct connector into the unit.
4. Tighten the thumb screws located on either side of the connector.
5. With the TOP surface facing upward, insert the other RPS connector (with the flush tab)
into the receptacle labeled RPS located on the rear panel of the NetVanta 1238 PoE (see
Figure 3). Press the connector until the pins are fully inserted and the base of the connector
is flush with the unit.
6. Tighten the thumb screws located on either side of the connector.
7. Proceed to Powering the RPS and the NetVanta 1238
Quick Start Guide, 61700531G1-13A, November 2011
RPS
AND THE

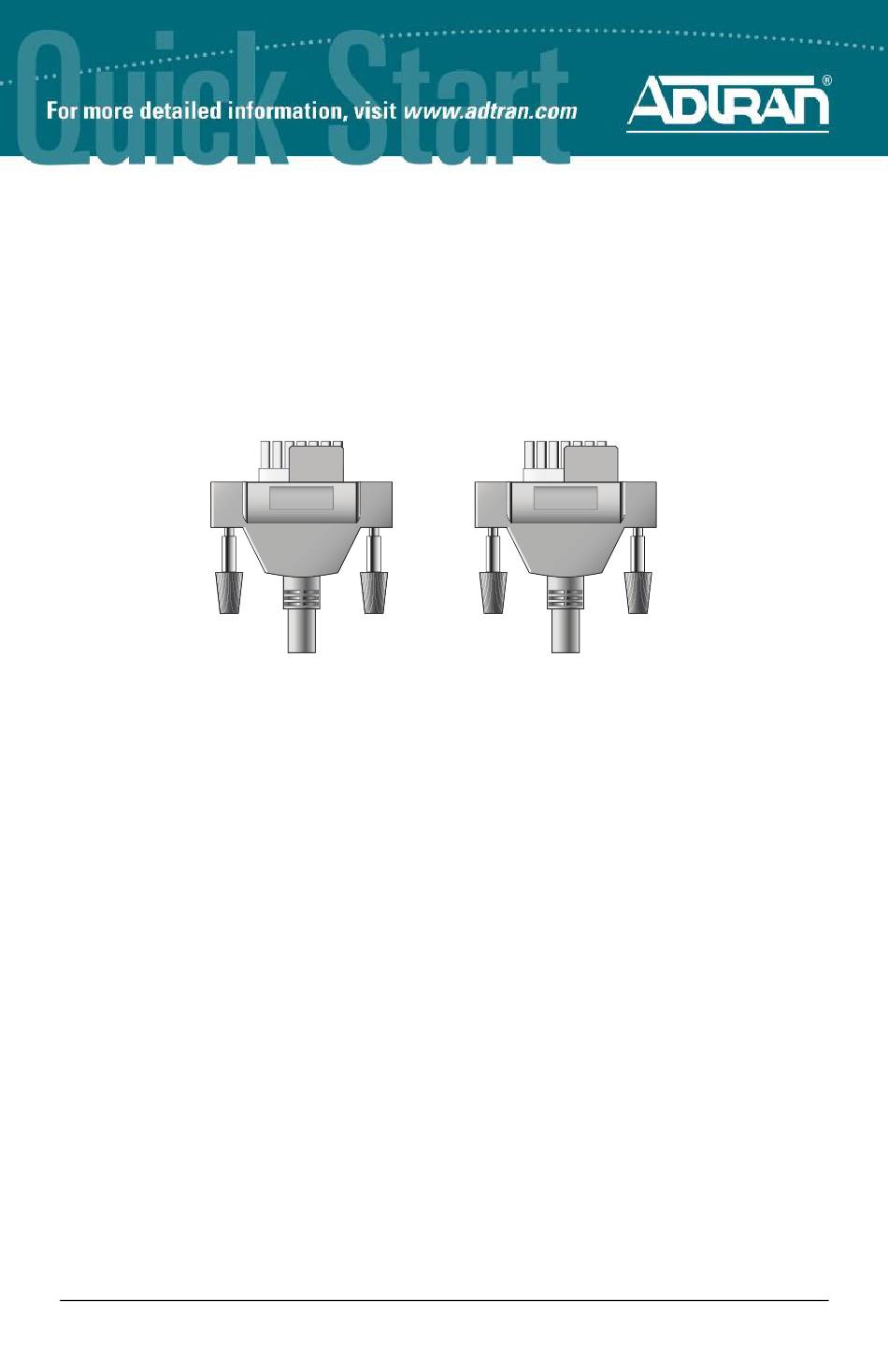

RPS Connector
Flush
Tab
TOP TOP TOP TOP
Figure 2. RPS Connectors
N V 1238 P
ET ANTA
NetVanta 1110 RPS
RPS Connector
TOP TOP TOP TOP
Thumb
Screws
PoE.
E
O
Offset
Tab
3
