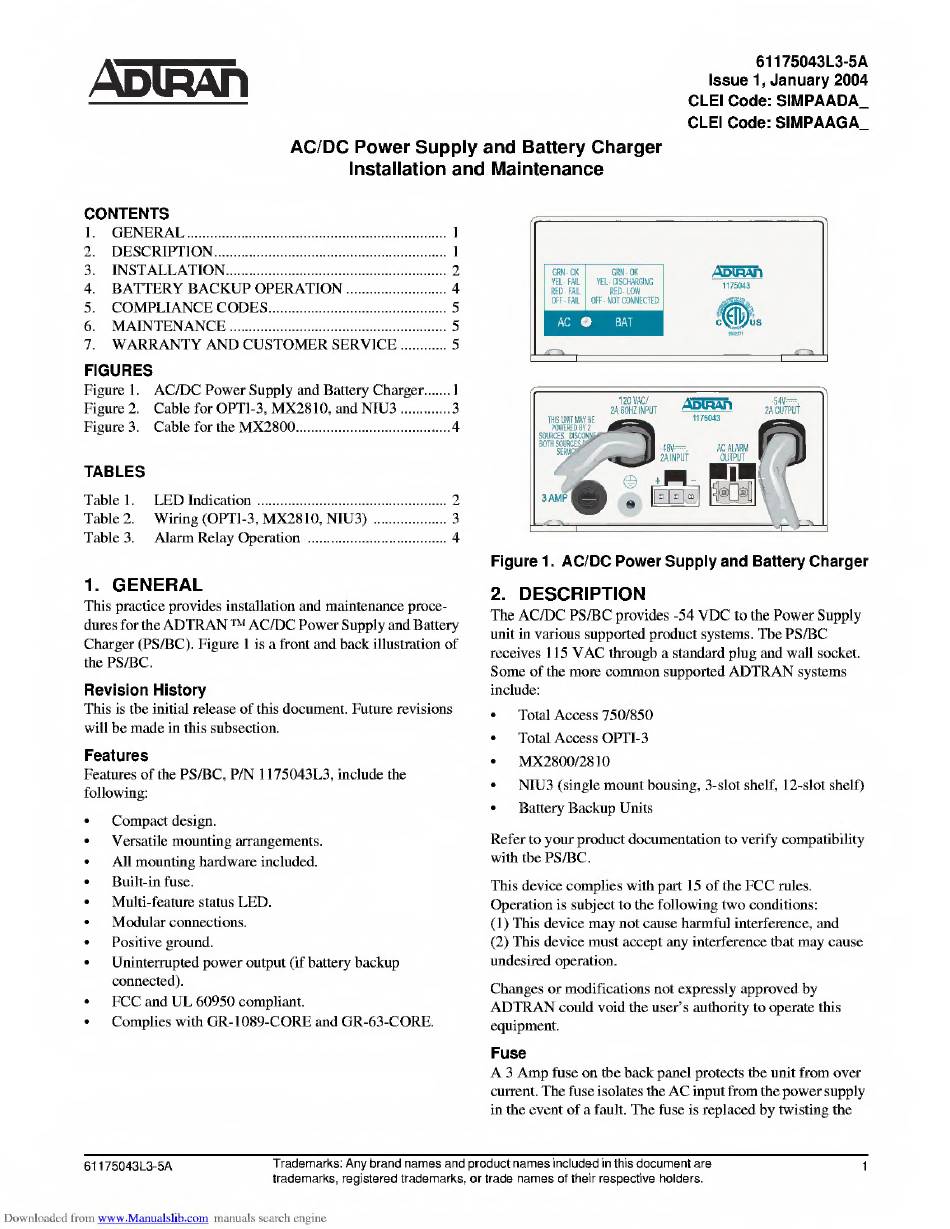

ADTRAN 1175043 Installation And Maintenance Manual

Adirati
61175043L3-5 A
Issue 1, January 2004
CLEI Code: SIMPAADA_
CLEI Code: SIMPAAGA_
AC/DC Power Supply and Battery Charger
Installation and Maintenance
CONTENTS
1. GENERA1. 1
2. DESCRIPTION. I
3. INSTALLATION.2
4. BATTERY BACKUP OPERATION..****... 4
5. COMPLIANCE CODES.5
6. MAINTENANCE.5
7. WARRANTY AND CUSTOMER SERVICE.5
FIGURES
Figure 1. AC/DC Power Supply and Battery Charger.1
Figure 2. Cable for OPTI-3, MX2810, and NIU3.....3
Figure 3. Cable for the MX2800.4
TABLES
Table 1. LED Indication .2
Tabic 2. Wiring (OPTI-3, MX2810, NIU3) .3
Tabic 3. Alarm Relay Operation .4
1. GENERAL
This practice provides installation and maintenance proce¬
dures for the ADTRAN ™ AC/DC Power Supply and Battery
Charger (PS/BC). Figure 1 is a front and back illustration of
the PS/BC.
Revision History
This is the initial release of this document. Future revisions
Features
Features of the PS/BC, P/N 1175043L3, include the
following:
• Compact design.
• Versatile mounting arrangements.
• All mounting hardware included.
• Built-in fuse.
• Multi-feature status LED.
• Modular connections.
• Positive ground.
• Uninterrupted power output (if battery backup
• FCC and UL 60950 compliant.
• Complies with GR- 1089-CORE and GR-63-CORE.

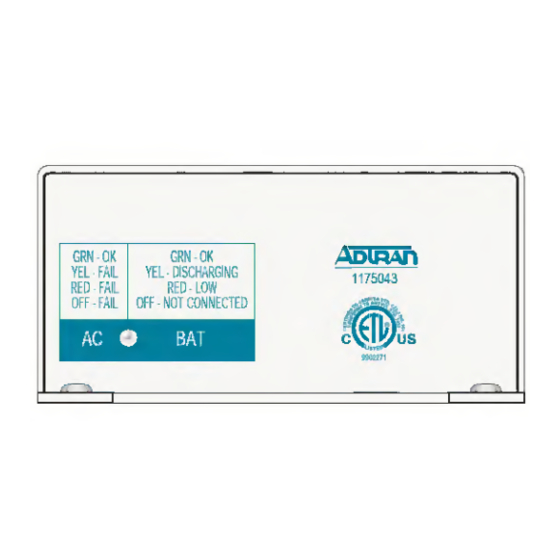

Figure 1. AC/DC Power Supply and Battery Charger
2. DESCRIPTION
The AC/DC PS/BC provides -54 VDC to the Power Supply
unit in various supported product systems. The PS/BC
receives 115 VAC through a standard plug and wall socket.
Some of the more common supported ADTRAN systems
include:
• Total Access 750/850
• Total Access OPTI-3
• MX2800/2810
• Battery Backup Units
Refer to your product documentation to verify compatibility
with the PS/BC.
This device complies with part 15 of the FCC rules.
(1) This device may not cause harmful interference, and
(2) This device must accept any interference that may cause
undesired operation.
Changes or modifications not expressly approved by
ADTRAN could void the user's authority to operate this
current. The fuse isolates the AC input from the power supply
