1. Securely fasten the mounting brackets to the NetVanta 1110 RPS using the screws provided
with the unit.
Important! To avoid damaging the unit when attaching the mounting brackets, use only the
screws supplied with the unit.
2. To allow proper grounding, scrape the paint from the rack around the mounting holes where
the RPS will be positioned.
3. Position the RPS in a stationary equipment rack either above or below the NetVanta 1238
PoE (see Figure
4. Have an assistant hold the RPS in position as you install two appropriate mounting bolts
through the unit's brackets and into the equipment rack.
5. Connect the NetVanta 1110 RPS to the NetVanta 1238 PoE following the steps in
Connecting the RPS and the NetVanta 1238
®
POWER
NetVanta 1110 RPS
1 2 3 4 5 6 7
1 3 5
LINK/ACT
PoE
STAT
2 4 6
NetVanta 1238
T I
ABLETOP NSTALLATION OF THE
1. Before installing the RPS on a horizontal surface, attach the rubber foot pads (included with
the unit) to the bottom of each corner of the unit. The rubber feet cushion the unit, protect the
casing from scratches and prevent it from scratching other surfaces.
2. Locate a sturdy, level tabletop or shelf that can support at least 30 pounds.
3. Place the RPS on the tabletop or shelf to the right of the NetVanta 1238 PoE with 2 inches of
space between the units.
Important! For adequate ventilation, the RPS should only mounted to the right of the
NetVanta 1238 PoE and 2 inches of space should be maintained between the units and
other objects in the vicinity. Do not place the units on top of each other or block ventilation
openings.
4. Proceed to the steps given in
2
1).
8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
7 9 11 13 15 17 19 21
8 10 12 14 16 18 20 22
Power over Ethernet

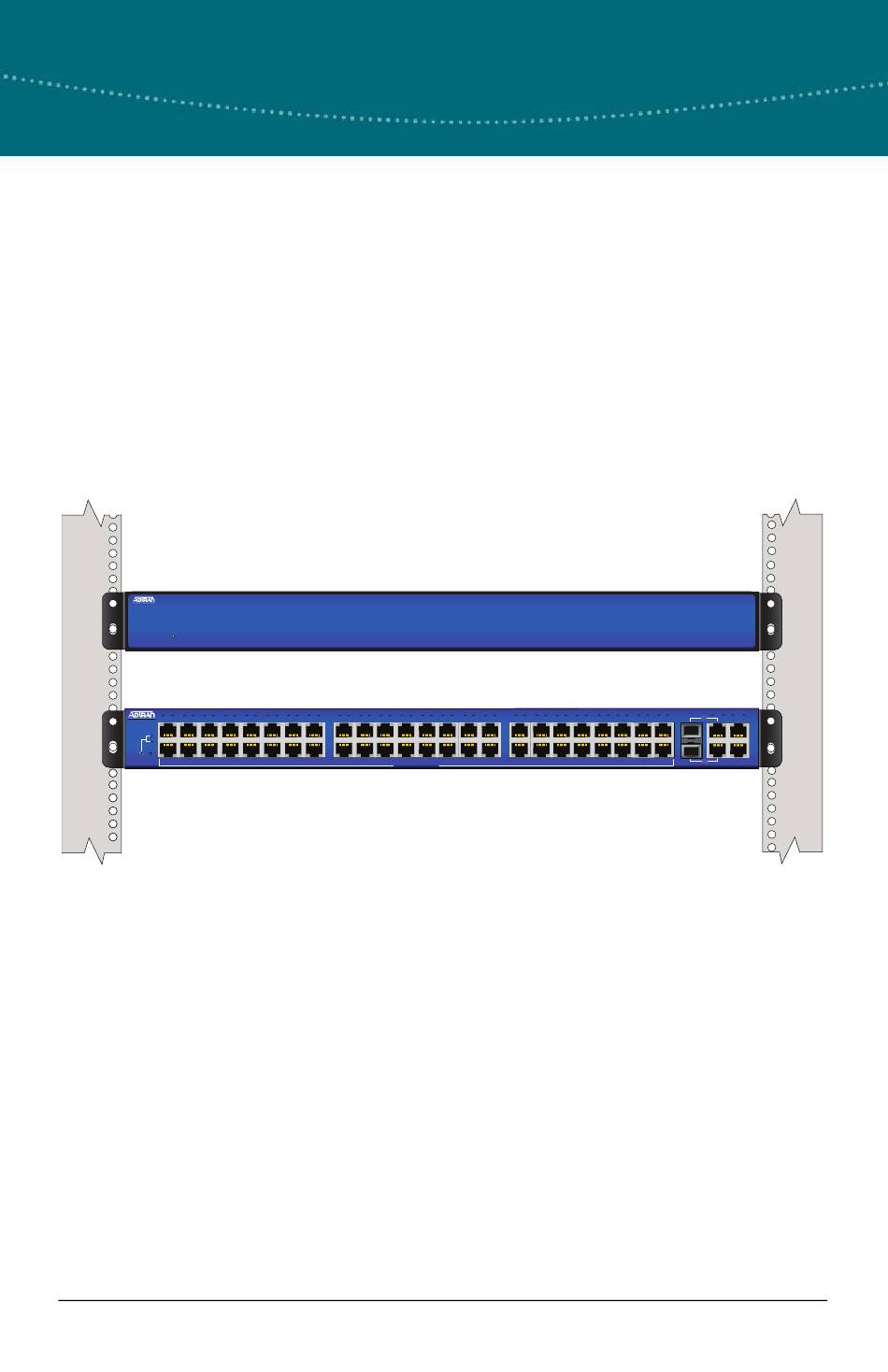

Figure 1. Rack Mounting the RPS

Connecting the RPS and the NetVanta 1238 PoE.

PoE.
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
23 25 27 29 31 33 35 37
24 26 28 32 34 36
30 38
RPS
