ADTRAN NetVanta 1110 Quick Start Manual

N V 1110 R
ET ANTA
P/N 1700531G1
G S
ETTING TARTED
The NetVanta 1110 RPS (P/N 1700531G1) is housed in a 1U-high rack mountable metal
enclosure and includes a universal AC power supply. The NetVanta 1110 RPS provides a
redundant +12 VDC source for powering the NetVanta 1238 PoE (P/N 1700599G2) switch
processor and hardware and -48 VDC for PoE backup. It ships with two mounting brackets and
screws, four rubber foot pads, power cord, and one-meter long RPS cable.
The NetVanta 1110 RPS can be installed in rackmount or tabletop configurations. The following
sections provide step-by-step instructions for rack mounting and tabletop installation.
The NetVanta 1110 RPS is intended
•
•
R M
ACK OUNTING THE

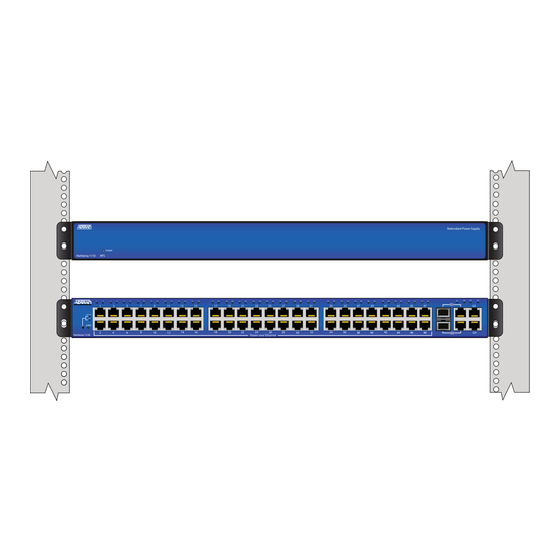

The NetVanta 1110 RPS can be installed into a 19-inch equipment rack. The following steps guide
you in mounting the RPS into a rack.
•
•
•
•
•
Quick Start Guide, 61700531G1-13A, November 2011
EDUNDANT
The NetVanta 1110 RPS and the NetVanta 1238 PoE RPS base unit
with which it is associated should be installed in a restricted
access location as described in UL 60950-1.
Under full load, the NetVanta 1110 RPS may be hot to the touch.
to be installed, maintained, and serviced by qualified service personnel
only.
for use with NetVanta 1238 PoE RPS (P/N 1700599G2) units only.
RPS
If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than room
ambient temperature. Therefore, consideration should be given to
installing the equipment in an environment compatible with the
maximum ambient temperature specified by the manufacturer.
Installation of the equipment in a rack should be such that the amount
of air flow required for safe operation of the equipment is not
compromised.
Be careful not to compromise the stability of the equipment mounting
rack when installing this product.
Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading the circuit might have on
overcurrent protection and supply wiring. Appropriate consideration
of equipment nameplate ratings should be used when addressing this
concern.
Reliable grounding of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than
direct connections to the branch circuit (e.g., use of power strips).
P S
OWER UPPLY
1
