Summary of Contents for jbc FAE2-5B

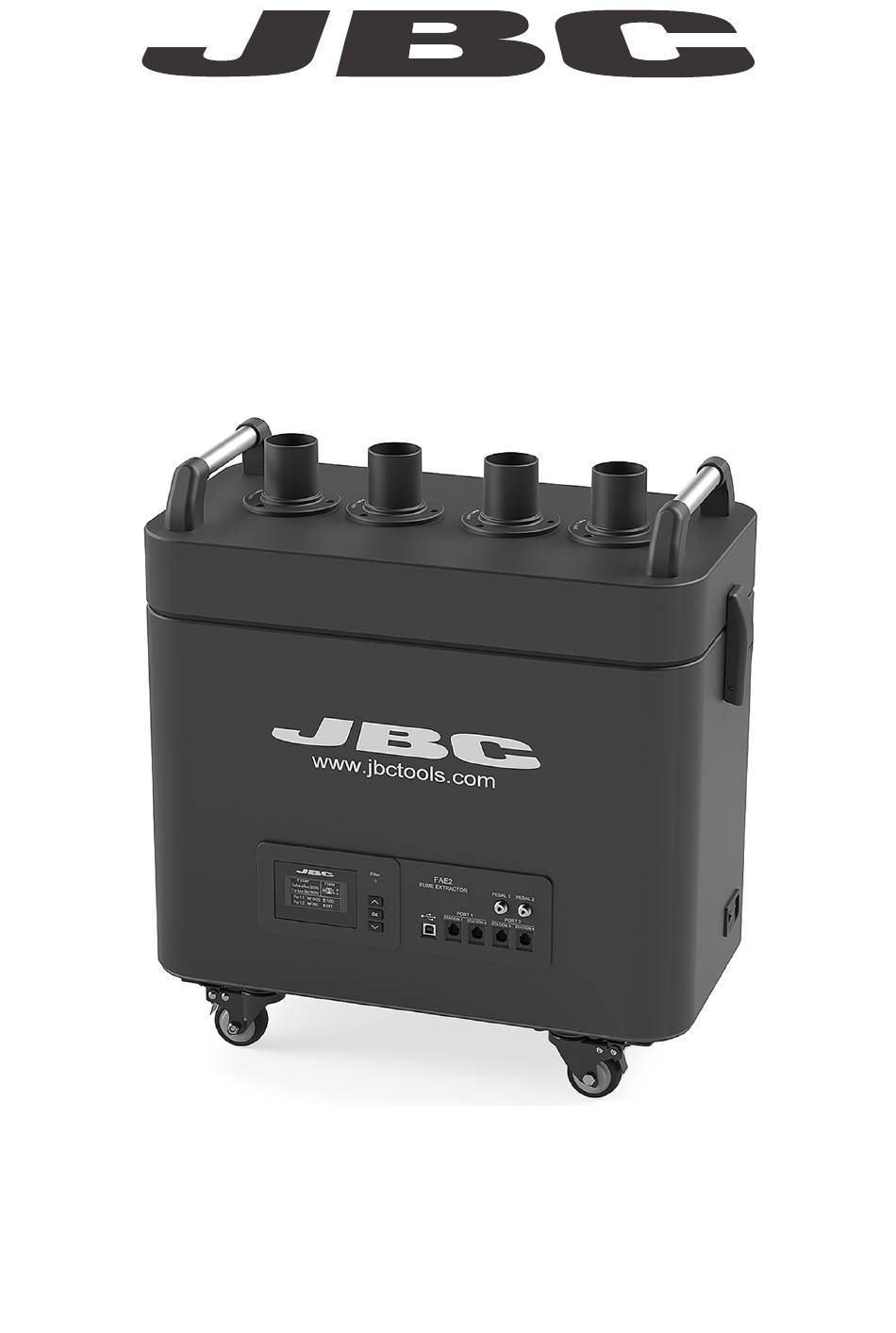

- Page 1 INSTRUCTION MANUAL Fume Extractor Ref. FAE2-5B...
- Page 2 Packing List The following items should be included: RJ12 direct cable ........ 2 units Ref. 0019751 Fume Extractor ........1 unit Ref. FAE2-5B RJ12-USB A adapter ......2 units Ref. 0023504 USB A/B cable ........2 units Ref. 0021042 Compact Filter + Pre-filter ....1 unit Ref.
- Page 3 www.jbctools.com Features Aspiration tube for up to 4 stands (2 work Aspiration intakes configuration) or for 1 workbench tubes for (4 work intakes configuration). workbenchs Quick release lever for filter change Wheels and brake system to move around easily Power socket Main switch Filter saturation indicator Green: Filter OK...
- Page 4 Ref. FAE060 For compact stations (From B versions Fume Extractor onwards) Ref. FAE2-5B Main screen Preset program screen Custom program screen High, medium F i l t e r F l o w F i l t e r...
- Page 5 To be assembled directly on your workbench (hole drilling required) Flexible Hoses Ø50 Ref. FAE010 Lenght: 1,5 m (59.05 in) Connect the Fume Extractor to the flexible arm Fume Extractor Ref. FAE2-5B Main screen Saturation Carbon life Work intakes status...
- Page 6 Turning on the fume extractor Once the fume extractor is turned on, the display shows a similar screen as the following one and the filter saturation indicator is green if the carbon lifetime is higher than 20%. F i l t e r F l o w Saturation Carbon life 100%...
- Page 7 www.jbctools.com Menu Interface Main menu parameters Original Pin: 0105 M a i n m e n u Exit 1 Reset 2 Unit U n i t 3 Port Continuous mode 2 Beep 4 Filter set 3 PIN 5 Counters 4 Change PIN 6 Program version 5 Work intakes B a c k...
- Page 8 Menu Interface Port menu 2 work intakes configuration P o r t 1 Program Ctm - 100% 2 Delay port 1 3 Delay port 2 4 Pedal port 1 5 Pedal port 2 B a c k D e l a y t o s t o p p o r t 1 P e d a l p o r t 1 P o r t 1 Program Ctm - 100%...
- Page 9 www.jbctools.com Parameters Important: Power off any Station or Device from the fume extractor before modifying any parameter. Unit Parameter Description Enable/disable continuous aspiration. When enabled the 4 aspiration intakes are opened and fume extractor suction is activated. Aspiration Continuous mode remains active until continuous mode is disabled or the equipment is powered off.
- Page 10 Port Parameter Description It sets the fume extractor aspiration flow. You can select between a Preset and Custom aspiration program. H (High), M (Medium) or L (Low) are the three Preset available options. Use Up and Down keys to switch between them while being on the main Program screen.
- Page 11 www.jbctools.com Filter set Parameter Description It shows remaining activated carbon lifetime expressed in %. It is also Carbon life displayed on the main screen. When 0% is reached the system will show pop-up message STOP#1 to replace the filter. It shows saturation status of HEPA + carbon filter set, expressed in %. It is Saturation also displayed on the main screen.
- Page 12 RJ12 station connections for Excellence range Allows connecting JBC Soldering Stations featuring a Robot port to the fume extractor in order to automatically activate the extraction when the tools are in use. An RJ12 direct cable is required (ref. 0019751).
- Page 13 RJ12 station connections for Advanced range Allows connecting JBC Soldering Stations featuring a USB-B port to the fume extractor in order to automatically activate the extraction when the tools are in use. An USB A/B cable (ref. 0021042) and RJ12-USB A adapter (ref.
- Page 14 Fume extractor configurations Some parameters, features and the performance vary depending on fume extractor configuration, see the following table: 2 work intakes 4 work intakes Work aspiration intakes Stand aspiration intakes Not available Flow per work intake 76 m3 / h (44.73 cfm) 52 m3 / h (30.6 cfm) Flow per stand intake 4 m3 / h (2.35 cfm)
- Page 15 www.jbctools.com Maintenance - Filter replacement - The unit notifies through both the display and the LED when filters need maintenance. - To replace the filters, first turn the fume extractor off. Then remove the cover by opening the quick release lever of the casing (image 1).
- Page 16 Maintenance - Valves - Check the status of the valves when replacing the pre-filter or the compact filter. - Use the cleaning stick if necessary and clean with alcohol to remove dirt residues. Clean the disc and the gasket on both sides Intake valve Ref.
- Page 17 www.jbctools.com Safety Follow safety guidelines to prevent electric shock, injury, fire or explosion. - The equipment is designed to filtrate only the fumes generated by soldering. - Do not use the units for the filtration of combustible, explosive or corrosive gasses. Incorrect use may cause fire.
- Page 18 Notes...
- Page 19 www.jbctools.com Notes...
- Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
