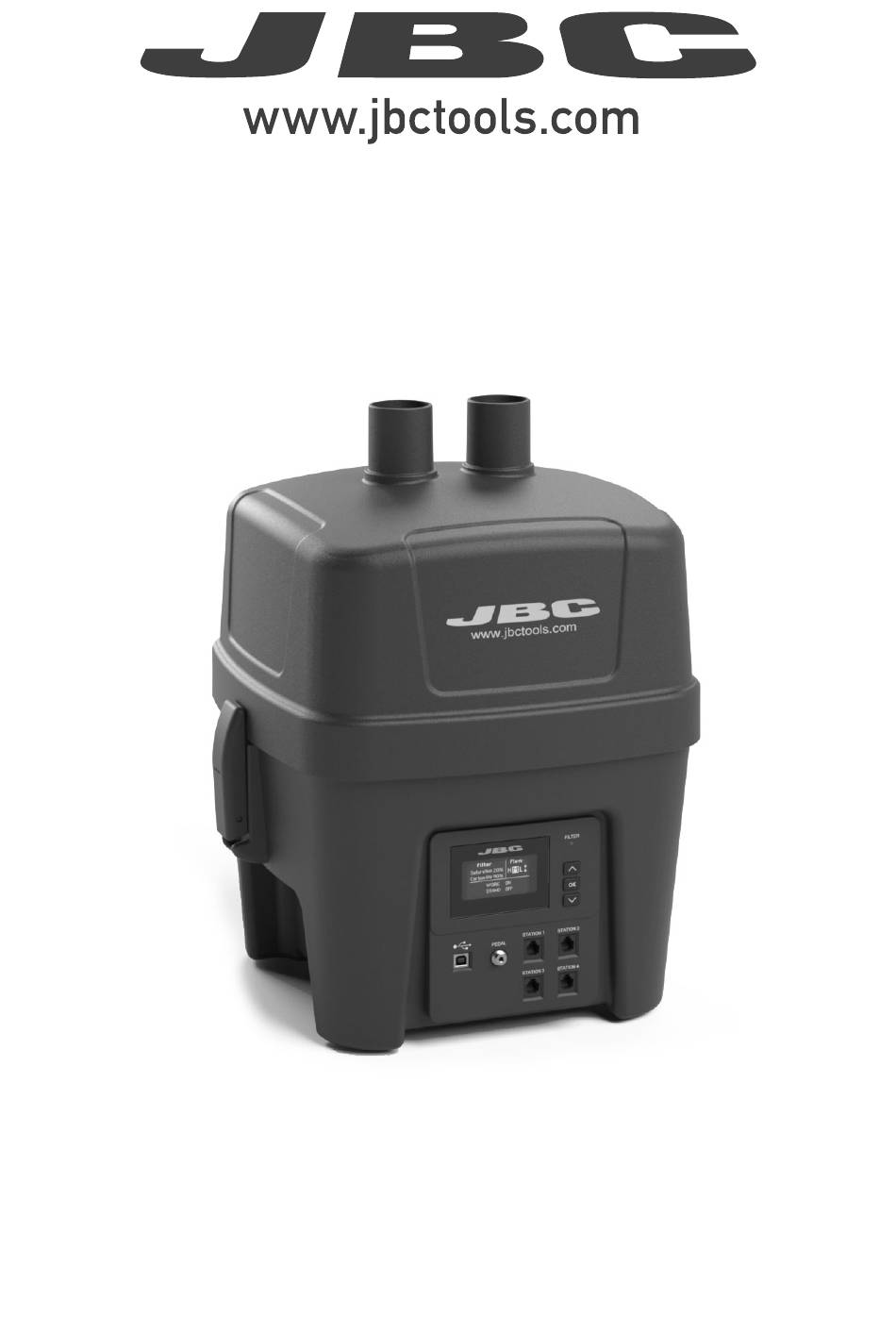

- Page 1 INSTRUCTION MANUAL FAE1H Fume Extractor for 1 Workbench (HEPA 14)
- Page 2 This manual corresponds to the following references: FAE1-1PB (100V / 120V) FAE1-2PB (230V) Packing List Unseal the filter The following items are included: before its first use FAE1110 Pre-Filter FAE1200 Filter includes: carbon and HEPA 14 filter Fume Extractor for 1 Workbench ..1 unit FAE1200 Filter for FAE1 ......
- Page 3 para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Aspiration Intakes 100 mm 80 mm 60 mm Quick Release Lever for Filter Replacement 50 mm 40 mm Filter Saturation Indicator -Green: Filter OK Dispaly -Yellow: ≤ 20% carbon lifetime or about to saturate -Red: End of carbon lifetime or filter saturated RJ12 Premium Station...
- Page 4 Standard Assembly Configuration for 1 Workbench FAE070 FAE050 FAE060 Flexible Arm with Fume Inlet Duct Fume Inlet Duct Clamp Ø50 for Compact for Modular - Lenght: 1 m / 39.37 in Stand Stations (stations (stands from - To be assembled onto from versions versions Ref.
- Page 5 para manuales - color gris 200 mm Alternative Assembly Option 130 mm 130 mm Configuration for 2 Workbenches This configuration is activated by setting Workbench option to “2” in the FAE1 main menu. 100 mm FAE070 FAE020 Flexible Arm with Flexible Arm Ø50 - Lenght: 1 m / 39.37 in Clamp Ø50...
- Page 6 Connection with Modular Stations JBC Soldering Stations feature a robot port to the fume extractor in order to automatically activate the extraction when the tools are in use. Use the Premium Station Cable (included) for the connection. Station Fume Extractor...
- Page 7 Equipment Software Update JBC Updater The fume extractor can be updated via the USB-B connection by means of JBC Updater software. Download software from: www.jbctools.com/software.html. Note: For the updating process the Premium Station Cable (RJ12) has to be disconnected. If a station is connected to RJ12 connector the update process will not start.
- Page 8 Menu Interface Main Menu (Original PIN: 0105) M a i n m e n u M a i n m e n u Exit 1 Reset 2 Unit 3 Port U n i t U n i t 4 Filter set Continuous mode see next page 5 Counters...
- Page 9 para manuales - color gris 200 mm Menu Interface 130 mm 130 mm Main Menu (Original PIN: 0105) M a i n m e n u M a i n m e n u 100 mm Exit 1 Reset 2 Unit see previous page 3 Port 80 mm...
- Page 10 Fume Extractor Activation Once the fume extractor is turned on, the display shows a similar screen as the following one and the filter saturation indicator is green if the carbon filter lifetime is higher than 20%. F i l t e r F i l t e r F l o w F l o w...
- Page 11 para manuales - color gris 200 mm Port 130 mm 130 mm Parameter Description It sets the fume extractor aspiration flow. You can select between preset 100 mm and custom aspiration programs. H (High), M (Medium) or L (Low) are the three available preset options. Use UP and DOWN keys to switch between them while being on the main Program screen.
- Page 12 Filter Set Parameter Description It shows remaining activated carbon lifetime expressed in %. It is also dis- Carbon life played on the main screen. When 0% is reached the system will show pop- up message STOP#1 to replace the filter. It shows saturation status of HEPA + carbon filter set, expressed in %.
- Page 13 para manuales - color gris 200 mm Fume Extractor Configurations 130 mm 130 mm Some parameters, features and the performance vary depending on fume extractor configuration, see the following table: 100 mm 230V - 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches Flexible Arm Aspiration Intake Stand Aspiration Intake Not available...
- Page 14 Maintenance and Filter Replacement Cover - The fume extractor unit indicates by means of display and LED’s that the filters need to be replaced. - To replace the filters remove the cover by opening the quick release levers, located on both sides of the casing. Pre-Filter - If the saturation indicator remains in red after replacing the pre-filter, it means that...
- Page 15 para manuales - color gris 200 mm Quick Release Lever Adjustment 130 mm 130 mm - Turn clockwise to loosen and counterclockwise to tighten, in order to adjust the filter airtightness. 100 mm 80 mm 60 mm 50 mm 40 mm Accessories FAE1110 Pre-Filter for FAE1...
- Page 16 Safety Follow safety guidelines to prevent electric shock, injury, fire or explosion. - The equipment is designed to filtrate only the fumes generated by soldering. - Do not use the units for the filtration of combustible, explosive or corrosive gasses. Incorrect use may cause fire.
- Page 17 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 18 Notes...
- Page 19 - color gris 200 mm Specifications 130 mm 130 mm FAE1H Fume Extractor for 1 Workbench (HEPA 14) Ref.: FAE1-1PB 100V 50/60Hz. Input power: 95W. Fuse 2A 120V 50/60Hz. Input power: 110W. Fuse 2A 100 mm Ref.: FAE1-2PB 230V 50/60Hz. Input power: 110W. Fuse 1.25A...
- Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
