Summary of Contents for jbc FAE2

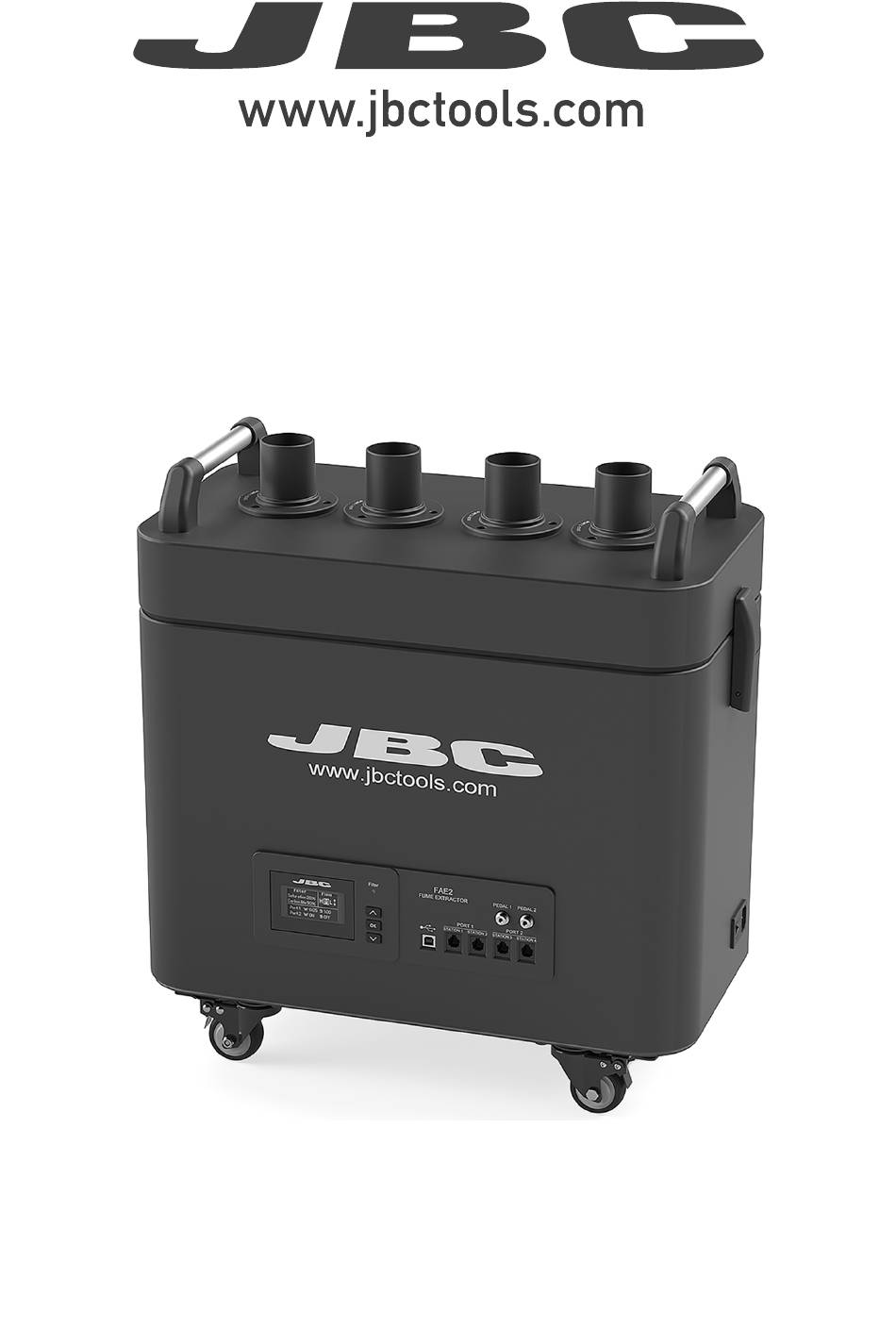

- Page 1 INSTRUCTION MANUAL FAE2 Fume Extractor for 2 Workbenches...
-
Page 2: Packing List
Unseal the filter and remove its bottom protection before its first use Pre-Filter Compact Filter Fume Extractor for 2 Workbenches ...1 unit Filter for FAE2 ........1 unit Ref. FAE2-100 (already assembled) Power Cable ....1 unit Compact Station Cable Compact Station Adapter Ref. -
Page 3: Features And Connections
para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Intakes for: -Stand aspiraction (default) or -Flexible Arm aspiration (4 Workbenches Mode) 100 mm Intakes for: -Flexible arm aspiration 80 mm 60 mm Quick Release Lever for Filter Replacement 50 mm Wheels and Brake... -
Page 4: Assembly Options
(From SD versions for stand aspiration onwards) Ref. FAE060 For compact stations (From B versions Fume Extractor onwards) Ref. FAE2-5B Main Screen Access by to change the aspiration program. Preset program screen Custom program screen High, medium and low preset... - Page 5 “2 workbenches configuration“ Flexible Hoses Ø50 (see page 14). 40 mm Ref. FAE010 Lenght: 1,5 m (59.05 in) Connect the Fume Extractor to the flexible arm Fume Extractor Ref. FAE2-5B Main Screen Saturation Carbon life Aspiration intake status (work intake)
- Page 6 Station Connections for Premium Range JBC Soldering Stations feature a robot port to the fume extractor in order to automatically activate the extraction when the tools are in use. Use the Premium Station Cable (included) for the connection. Premium Station Cable Connect up to 4 stations directly to a fume extractor through the soldering station robot port.
- Page 7 Equipment Software Update JBC Updater The fume extractor can be updated via the USB-B connection by means of JBC Updater software. Download software from: www.jbctools.com/software.html. Note: For the updating process the Premium Station Cable (RJ12) has to be disconnected. If a station is connected to RJ12 connector the update process will not start.
-
Page 8: Menu Interface
Menu Interface Main Menu Parameters Original Pin: 0105 M a i n m e n u M a i n m e n u Exit 1 Reset 2 Unit U n i t U n i t 3 Port Continuous mode 2 Beep 4 Filter set 3 PIN... - Page 9 para manuales - color gris 200 mm Menu Interface 130 mm 130 mm Port Menu for 2 Workbenches Configuration P o r t P o r t Program Ctm - 100% 100 mm 2 Delay port 1 3 Delay port 2 4 Pedal port 1 80 mm 5 Pedal port 2...
- Page 10 Fume Extractor Activation Once the fume extractor is switched on, the display shows a similar screen as the following one and the filter saturation indicator is green if the carbon lifetime is higher than 20%. F i l t e r F i l t e r F l o w F l o w...
- Page 11 para manuales - color gris 200 mm Parameters 130 mm 130 mm Important: Power off any station or device connected to the fume extractor before modifying any parameter. 100 mm Unit 80 mm Parameter Description Enable/disable continuous aspiration. When enabled the 4 aspiration in- takes are opened and fume extractor suction is activated.
- Page 12 Port Parameter Description It sets the fume extractor aspiration flow. You can select between preset and custom aspiration programs. H (High), M (Medium) or L (Low) are the three preset options available.Use up and down keys to switch between them while being on the main screen. Program Up to ten aspiration levels between H (High) and L (Low) can be select for custom program (range 10-100%).
- Page 13 para manuales - color gris 200 mm Filter Set 130 mm 130 mm Parameter Description It shows remaining activated carbon lifetime expressed in %. It is also dis- 100 mm Carbon life played on the main screen. When 0% is reached the system will show pop- up message STOP#1 to replace the filter.
- Page 14 Fume Extractor Configurations Some parameters, features and the performance vary depending on fume extractor working mode, see the following table: Mode: 2 Workbenches Mode: 4 Workbenches Flexible Arm Aspiration Intakes Stand Aspiration Intakes Not available Flow per Flexible Arm Intake 76 m3 / h (44.73 cfm) 52 m3 / h (30.6 cfm) Flow per Stand Intake...
-
Page 15: Maintenance - Filter Replacement
- The unit notifies through both display and the LED when filters need Pre-Filter for FAE2 maintenance. Ref. FAE2-110 100 mm - To replace the filters, first turn the fume extractor off. Then remove the cover by opening the quick release lever of the casing (image 1). - Page 16 Maintenance - Valves - Check the status of the valves when replacing the pre-filter or the compact filter. - Use the cleaning stick if necessary and clean with alcohol to remove dirt residues. Clean the disc and the gasket on both sides Intake Valve Ref.
- Page 17 para manuales - color gris 200 mm Safety 130 mm 130 mm Follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - The equipment is designed to filtrate only the fumes generated by soldering. - Do not use the units for the filtration of combustible, explosive or corrosive gasses. Incorrect use may cause fire.
- Page 18 Notes...
-
Page 19: Specifications
Specifications 130 mm 130 mm FEA2 Fume Extractor for 2 Workbenches Ref.: FAE2-5B 120V 50/60Hz. Input power: 500W 100 mm Ref.: FAE2-5B 230V 50/60Hz. Input power: 500W Ref.: FAE2-5B 100V 50/60Hz. Input power: 320W - Max. Flow Rate: 290 m³/h / 10241.25 f³/h - Max. - Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
