INSTRUCTION MANUAL

FAE1

Fume Extractor for 1 Workbench

Need help?

Do you have a question about the FAE1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for jbc FAE1 Series

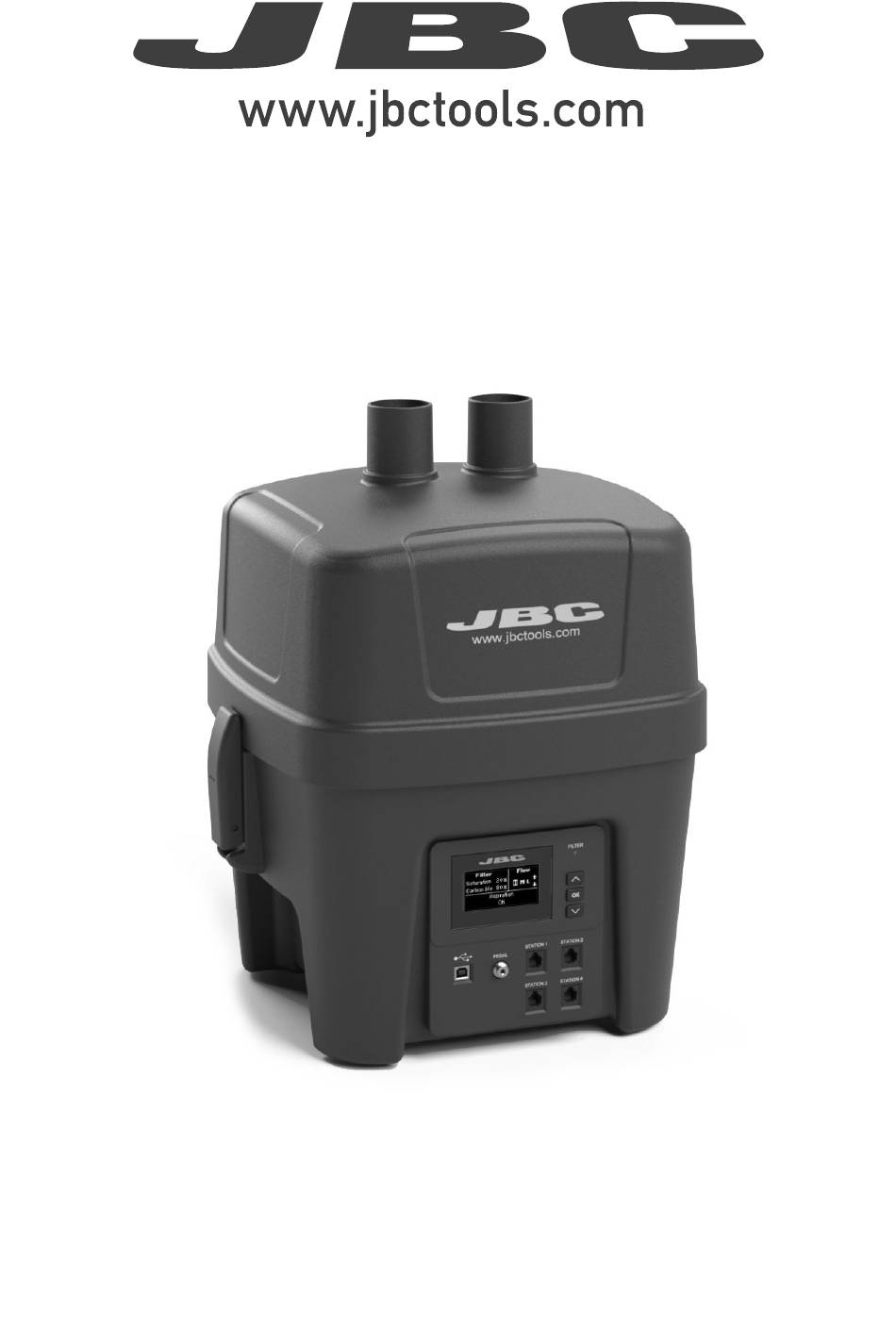

Page 1 INSTRUCTION MANUAL FAE1 Fume Extractor for 1 Workbench...
Page 2 This manual corresponds to the following references: FAE1-1B (100V/120V)) FAE1-2B (230V) Packing List The following items are included: Unseal the filter before its first use Fume Extractor for 1 Workbench ..1 unit Filter for FAE1 ..........1 unit Ref. FAE1-100 (already assembled) Premium Station Cable (RJ12) ....
Page 3 w w w.jbctools.com Features and Connections Aspiration Intakes Quick Release Lever for Filter Replacement Filter Saturation Indicator -Green: Filter OK Process Screen -Yellow: ≤ 20% carbon lifetime or about to saturate -Red: End of carbon lifetime or filter saturated RJ12 Premium Station Connections Main Switch...
Page 4 Assembly Options 1 Workbench Configuration (default) Flexible Arm Ø50 Stand Ref. FAE070 Aspiration Duct Ref. FAE060 Lenght: 1 m / 39.37 in Ref. FAE050 For compact stations To be assembled on For modular stands your workbench with (from SD versions (from B versions onwards) the included clamp...
Page 5 w w w.jbctools.com 2 Workbenches Configuration (optional) This configuration is activated by setting Workbench option to “2” in the FAE1 main menu. Flexible Arms Ø50 Ref. FAE070 Ref. FAE020 Lenght: 1 m / 39.37 in Lenght: 1 m / 39.37 in To be assembled on To be assembled directly your workbench with...
Page 6 Station Connections for Premium Range JBC Soldering Stations feature a robot port to the fume extractor in order to automatically activate the extraction when the tools are in use. Use the Premium Station Cable (included) for the connection. Station Fume Extractor...
Page 7 Equipment Software Update JBC Updater The fume extractor can be updated via the USB-B connection by means of JBC Updater software. Download software from: www.jbctools.com/software.html. Note: For the updating process the Premium Station Cable (RJ12) has to be disconnected. If a station is connected to RJ12 connector the update process will not start.
Page 8 Menu Interface Main Menu Parameters Original PIN: 0105 M a i n m e n u M a i n m e n u Exit 1 Reset 2 Unit U n i t U n i t 3 Port Continuous mode 2 Beep 4 Filter set 3 PIN...
Page 9 w w w.jbctools.com Menu Interface M a i n m e n u M a i n m e n u Exit 1 Reset 2 Unit 3 Port 4 Filter set 5 Counters 6 Program version C o u n t e r s C o u n t e r s F i l t e r s e t F i l t e r s e t...
Page 10 Fume Extractor Activation Once the fume extractor is turned on, the display shows a similar screen as the following one and the filter saturation indicator is green if the carbon filter lifetime is higher than 20%. F i l t e r F i l t e r F l o w F l o w...
Page 11 w w w.jbctools.com Port Parameter Description It sets the fume extractor aspiration flow. You can select between preset and custom aspiration programs. H (High), M (Medium) or L (Low) are the three available preset options. Use UP and DOWN keys to switch between them while being on the main Program screen.
Page 12 Filter Set Parameter Description It shows remaining activated carbon lifetime expressed in %. It is also dis- Carbon life played on the main screen. When 0% is reached the system will show pop- up message STOP#1 to replace the filter. It shows saturation status of HEPA + carbon filter set, expressed in Saturation %.
Page 13 w w w.jbctools.com Fume Extractor Configurations Some parameters, features and the performance vary depending on fume extractor configuration, see the following table: 230V 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches Flexible Arm Aspiration Intake Stand Aspiration Intake Not available Flow per Flexible Arm Intake 80 m3 / h (47.08 cfm) 60 m3 / h (35.31 cfm) Preset Aspiration Programs...
Page 14 Maintenance and Filter Replacement - The unit notifies through both the display and the LED when filters need maintenance. Cover - To replace the filters remove the cover by opening the quick release levers of the casing. - If the saturation indicator remains in red after changing the pre-filter, it means that HEPA filter is already saturated and must be replaced Pre-Filter...
Page 15 w w w.jbctools.com Quick Release Lever Adjustment - Turn clockwise to loosen and counterclockwise to tighten, in order to adjust the filter airtightness. Accessories Pre-Filter for FAE1 Ref. FAE1-110 Filter for FAE1 Ref. FAE1-100 Compact Filter (includes: HEPA and Carbon Filter) Read the safety guidelines to do the equipment maintenance safely.
Page 16 Safety Follow safety guidelines to prevent electric shock, injury, fire or explosion. - The equipment is only designed to filtrate the fumes generated by soldering. - Do not use the units for the filtration of combustible, explosive or corrosive gasses. Incorrect use may cause fire.
Page 17 w w w.jbctools.com Notes...
Page 18 Notes...
Page 19 w w w.jbctools.com Specifications FAE1 Fume Extractor for 1 Workbench Ref.: FAE1-1B 100V 50/60Hz. Input power: 105W. Fuse 2A 120V 50/60Hz. Input power: 135W. Fuse 2A Ref.: FAE1-2B 230V 50/60Hz. Input power: 115W. Fuse 1.25A - Blower Type: Brushless - Blower max. Flow Rate: 180 m³/h (106 CFM) - Blower max.
Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
