jbc FAE1 Instruction Manual

Fume extractor for 1 workbench
Hide thumbs Also See for FAE1:

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
FAE1
Fume Extractor for 1 Workbench

Advertisement

loading
Need help?

Need help?

Do you have a question about the FAE1 and is the answer not in the manual?

Questions and answers

Related Manuals for jbc FAE1

Summary of Contents for jbc FAE1

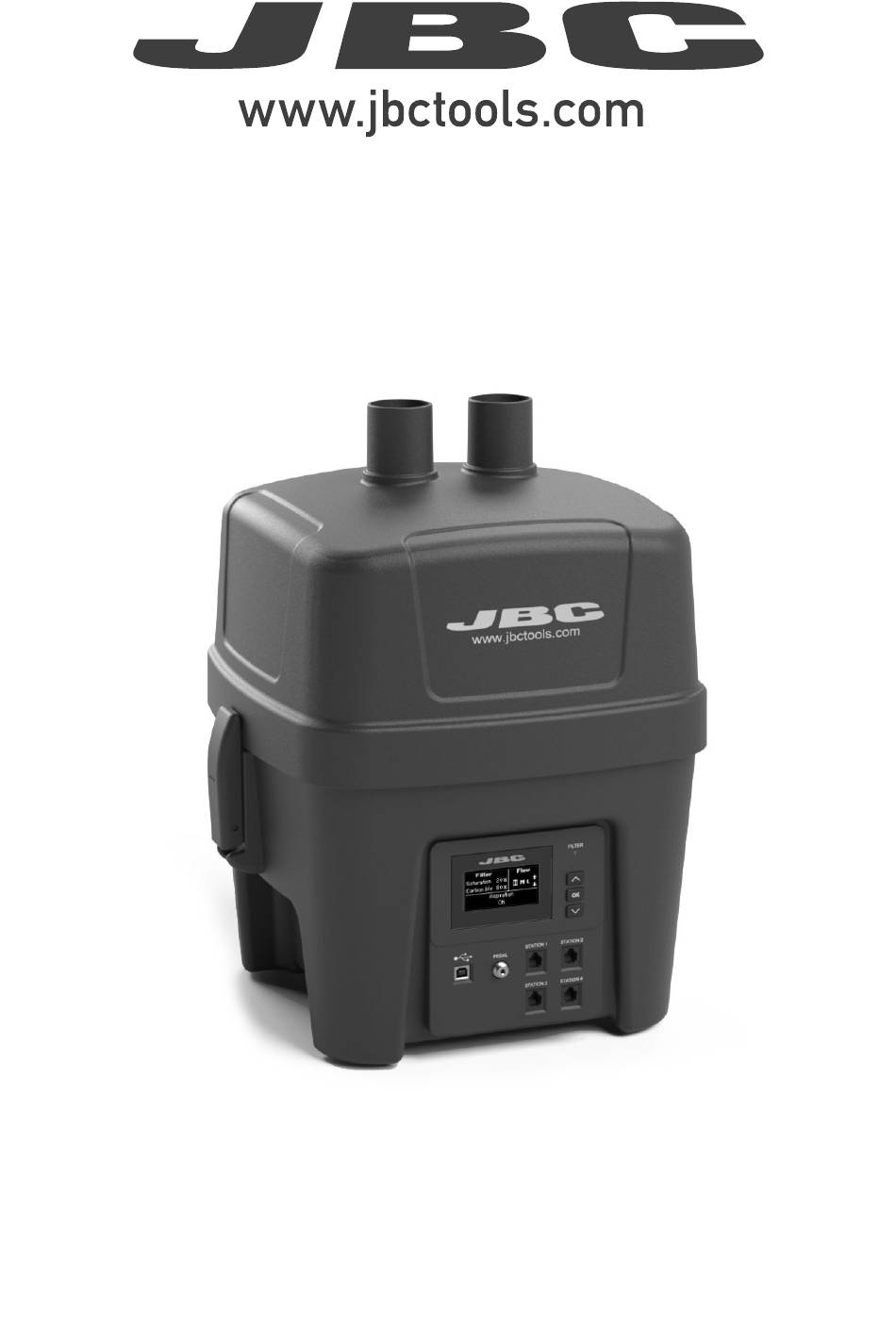

  • Page 1 INSTRUCTION MANUAL FAE1 Fume Extractor for 1 Workbench...
  • Page 2 Filter includes: carbon and HEPA 13 filter Fume Extractor for 1 Workbench ..1 unit FAE1100 Filter for FAE1 ......1 unit Ref. FAE1-100 (already assembled inside the Fume Extractor) RJ12 Connection Cable ..2 units Power Cable ........... 1 unit Ref.
  • Page 3 para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Aspiration Intakes 100 mm 80 mm 60 mm Quick Release Lever for Filter Replacement 50 mm 40 mm Display Filter Saturation Indicator -Green: Filter OK -Yellow: ≤ 20% carbon lifetime or about to saturate -Red: End of carbon lifetime or filter saturated RJ12 Connector (Control unit and...
  • Page 4 Flexible Hose Ø50 - Length: 1,5 m / 59.05 in - For connecting either to a flexible arm or to a accessory for the stand FAE1 aspiration. - Attention: Avoid Fume Extractor for 1 Workbench awkward positions in order to minimize pressure losses.
  • Page 5 - color gris 200 mm Alternative Assembly Option 130 mm 130 mm Configuration for 2 Workbenches This configuration is activated by setting Workbench option to “2” in the FAE1 main menu. 100 mm FAE070 FAE020 Flexible Arm with Flexible Arm Ø50 - Length: 1 m / 39.37 in...
  • Page 6 Connection with Modular Stations JBC Soldering Stations feature a robot port to the fume extractor in order to automatically activate the extraction when the tools are in use. Use the Premium Station Cable (included) for the connection. Fume Extractor Modular Station...
  • Page 7 Connection with Compact Stations 130 mm 130 mm Use the Compact Station Cable and the Adapter cable to connect JBC Soldering Stations. They CD-S feature a USB-B port to the fume extractor in order to automatically activate the extraction when the CD-B tools are in use.
  • Page 8 Menu Interface Main Menu (Original PIN: 0105) M a i n m e n u M a i n m e n u Exit 1 Reset 2 Unit 3 Port U n i t U n i t 4 Filter set Continuous mode see next page 5 Counters...
  • Page 9 para manuales - color gris 200 mm Menu Interface 130 mm 130 mm Main Menu (Original PIN: 0105) M a i n m e n u M a i n m e n u 100 mm Exit 1 Reset 2 Unit see previous page 3 Port 80 mm...
  • Page 10 Fume Extractor Activation Once the fume extractor is turned on, the display shows a similar screen as the following one and the filter saturation indicator is green if the carbon filter lifetime is higher than 20%. F i l t e r F i l t e r F l o w F l o w...
  • Page 11 para manuales - color gris 200 mm Port 130 mm 130 mm Parameter Description It sets the fume extractor aspiration flow. You can select between preset 100 mm and custom aspiration programs. H (High), M (Medium) or L (Low) are the three available preset options. Use UP and DOWN keys to switch between them while being on the main Program screen.
  • Page 12 100%. Extraction Control via the Pedal The fume extractor aspiration can be activated/deactivated by using JBC’s pedal P405 or P005. Pedal Connection Connect the pedal to the pedal connector and read the description for “Pedal  /  Activation” and “Pedal / Mode”...
  • Page 13 para manuales - color gris 200 mm Fume Extractor Configurations 130 mm 130 mm Some parameters, features and the performance vary depending on fume extractor configuration, see the following table: 100 mm 230V - 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches Flexible Arm Aspiration Intake Stand Aspiration Intake Not available...
  • Page 14 Maintenance and Filter Replacement Cover - The fume extractor unit indicates by means of display and LED’s that the filters need to be replaced. - To replace the filters remove the cover by opening the quick release levers, located on both sides of the casing. Pre-Filter - If the saturation indicator remains in red after replacing the pre-filter, it means that...
  • Page 15 - Turn clockwise to loosen and counterclockwise to tighten, in order to adjust the filter airtightness. 100 mm 80 mm 60 mm 50 mm 40 mm Accessories FAE1110 Pre-Filter for FAE1 includes medium dust filter M5 (EN 779) FAE1100 Filter for FAE1 Compact Filter includes activated carbon filter and particle filter HEPA 13 filter (EN 1822) Read the safety guidelines to do the equipment maintenance safely.
  • Page 16 Safety Follow safety guidelines to prevent electric shock, injury, fire or explosion. - The equipment is designed to filtrate only the fumes generated by soldering. - Do not use the units for the filtration of combustible, explosive or corrosive gases. Incorrect use may cause fire.
  • Page 17 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 18 Notes...
  • Page 19 130 mm 130 mm FAE1 Fume Extractor for 1 Workbench Ref.: FAE1-1C 120V 50/60Hz. Input power: 270W. Fuse 4A FAE1-2C 230V 50/60Hz. Input power: 300W. Fuse 2.5A 100 mm FAE1-9C 100V 50/60Hz. Input power: 200W. Fuse 4A - Blower Type:...
  • Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. If you register, you will receive e-mail notifications about new software updates for your registered product.

This manual is also suitable for:

Fae1100Fae1-1cFae1-2cFae1-9c
