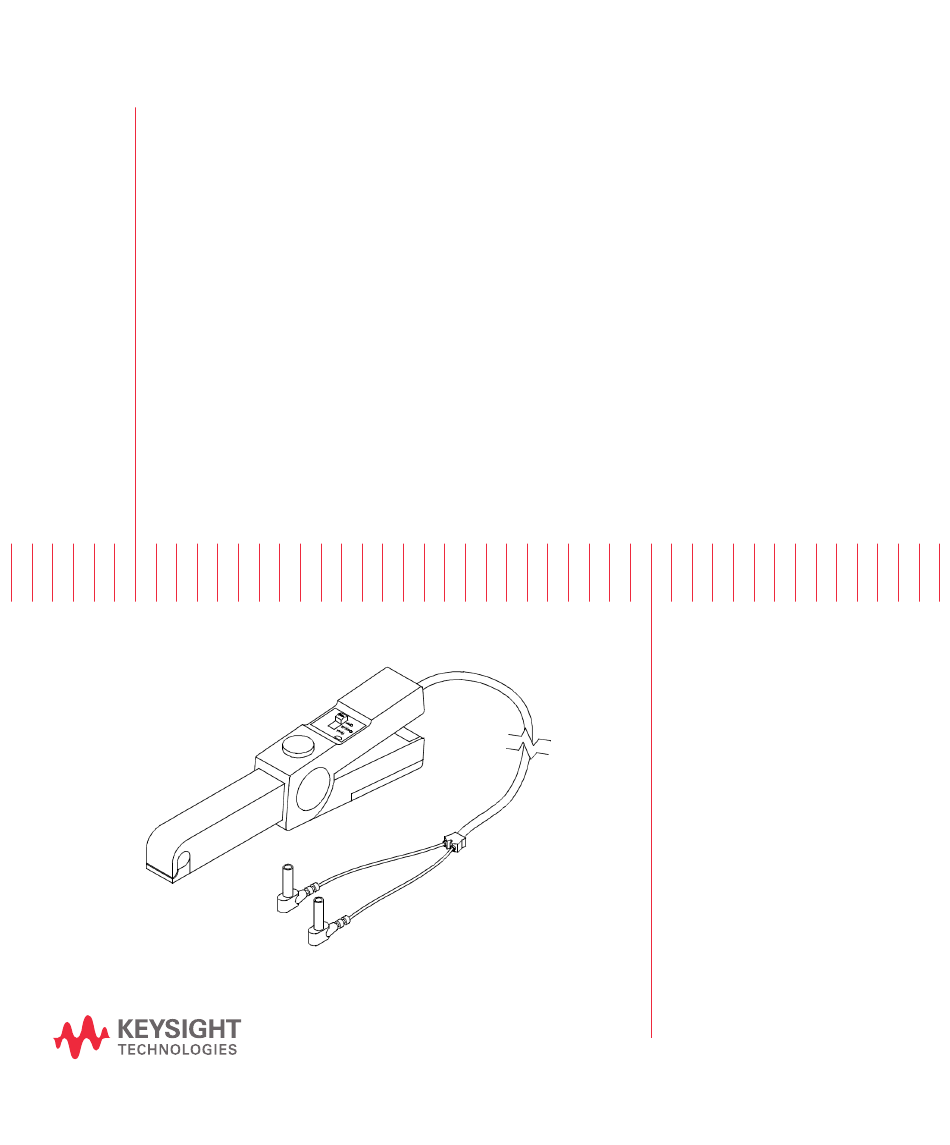

- Page 1 Keysight 34134A AC/DC DMM Current Probe User’s Guide...
- Page 2 27.401 or DFAR 227.7103-5 (c), as could result in personal injury or death. applicable in any technical data. Do not proceed beyond a WARNING notice until the indicated conditions are fully understood and met. Keysight 34134A User’s Guide...
-
Page 3: Safety Symbols
The following symbols on the instrument and in the documentation indicate precautions which must be taken to maintain safe operation of the instrument. Equipment protected throughout by Caution, risk of electric shock double insulation or reinforced insulation Protective earth (ground) terminal Keysight 34134A User’s Guide... -
Page 4: Safety Information
– Check the magnetic mating surfaces of the probe jaws; these should be free of dirt, rust, or other foreign matter. – Do not use a probe which is cracked, damaged or has defective leads. Keysight 34134A User’s Guide... -
Page 5: Table Of Contents
......... .4 Getting Started 34134A AC/DC DMM Current Probe ......8 Compatibility . - Page 6 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 34134A User’s Guide...
- Page 7 Keysight 34134A AC/DC DMM Current Probe User’s Guide Getting Started 34134A AC/DC DMM Current Probe Inspect the Probe Specifications and Characteristics Operation Repair...
-
Page 8: Getting Started
Getting Started 34134A AC/DC DMM Current Probe The 34134A Current Probe measures low DC or AC from 10 mA to 50 A DC, 40 A AC. This battery-powered clamp-on probe may be used with digital multimeters, voltmeters, or other voltage-measuring instruments. The probe jaws clamp round the conductor under test, allowing current measurements without breaking the circuit. -
Page 9: Inspect The Probe
Keysight Sales Office. Keep the shipping materials for the carrier’s inspection. The Keysight office will arrange for repair or replacement at Keysight’s option without waiting for claim settlement. Keysight 34134A User’s Guide... -
Page 10: Specifications And Characteristics
Getting Started Specifications and Characteristics Operating and environmental characteristics of the 34134A Current Probes are shown below. Specifications 1 V/A Range (1 mV/mA) 10 mV/A Range DC: 10 mA to 2 A DC: 100 mA to 80 A Current Range AC: 10 mA to 1.5 A... - Page 11 Operating: 0 to 2000 m Altitude Non-operating: 0 to 12,000 m Mechanical Characteristics Zero adjustment 20 turn potentiometer Maximum cable diameter 11.8 mm Dimensions 67 x 231 x 36 mm Weight 330g with battery Color Grey Keysight 34134A User’s Guide...
-
Page 12: Operation
Vibration amplitude: 0.15mm This symbol signifies that the 34134A AC/DC DMM Current Probe is protected by double or reinforced insulation. Only use specified replacement parts when servicing the instrument. This symbol signifies CAUTION! and requests that the user refer to the user manual before using the instrument. - Page 13 3 Zero the probe in DC and in DC coupled AC measurements. When the 34134A Current Probe has been used for a current measurement and then removed from the conductor, a small amount of residual magnetism often remains in the core. This residual magnetism will cause the voltmeter to show a small DC reading even though there is no current passing through the jaws of the probe.
-
Page 14: Calibration
Getting Started Calibration To guarantee that your instrument complies with the factory specifications, we recommend that the 34134A Current Probe be submitted to your local Keysight Service Center at one year intervals for recalibration, or as required by other standards. - Page 15 This information is subject to change without notice. Always refer to the English version at the Keysight website for the latest revision. © Keysight Technologies 1999-2020 Edition 3, May 2020 Printed in Malaysia 34134-90001 www.keysight.com...
