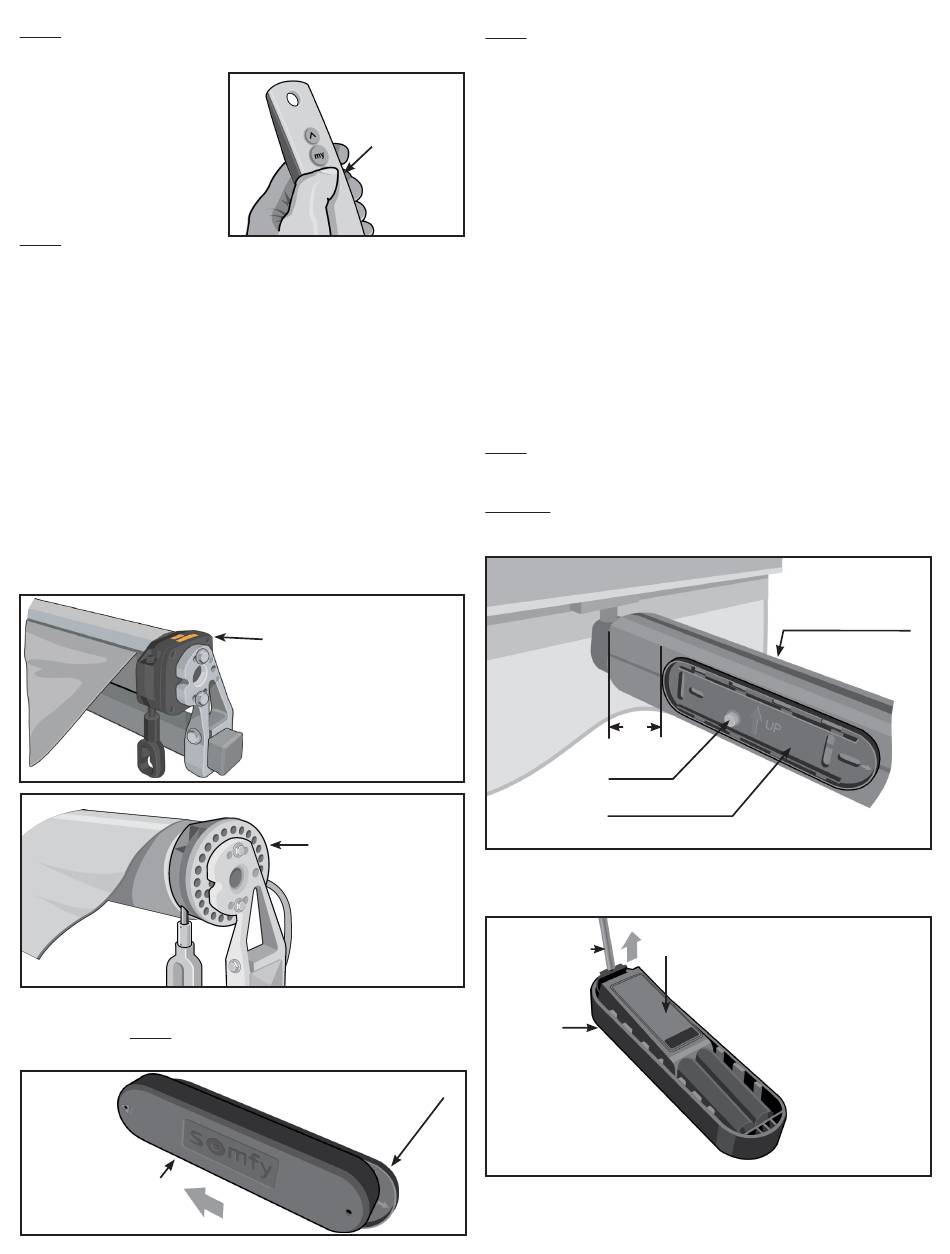

SunSetter Wireless Wind Sensor Installation And Operation Instructions Manual page 2

Note: If you have a MultiChannel Remote, ensure
the correct Channel is selected.
1. Make sure that the
Lower Button on the
Remote Transmitter
is the button that
OPENS your Awning.
See Figure 2.
Note: If the Lower
Button does not OPEN your Awning but, instead
CLOSES your Awning, you will need to complete the
steps for Changing the Direction of Motor Rotation.
• If your Motor has a Square, Black Housing
(See Figure 2a), follow Appendix A on Page 6,
"Changing the Direction of Motor Rotation for the
RTS Motor Only."
• If your Motor has a Round, Silver Housing
(See Figure 2b), follow Appendix B on Page 7,
"Changing the Direction of Motor Rotation for the
Sunea Motor Only"
Once you have verified that the lower button on the
Remote OPENS your Awning, continue with Step 2.
RTS Motor
Sunea Motor
2. Slide the Mounting Plate off of the Sensor Housing.
See Figure 3. Note: Verify that the Magnet is affixed
to the inside of the Mounting Plate. See Figure 1.
Figure 3
Sensor Housing
Lower Button
must OPEN
the Awning
Figure 2
Figure 2a
For this type motor,
use Appendix A to
change direction of
motor rotation.
Figure 2b
For this type
motor, use
Appendix B to
change direction
of motor rotation.
Mounting Plate
Note: All left and right references are as you are
facing the house with the Awning fully opened.
3. With the Awning fully open, install the Mounting
Plate on the inside of the Lateral Arm, on the Motor
side of the Awning, as follows.
3a. Clean the Lateral Arm with a cloth and an
alcohol based solvent. (Preferred installation
temperature of 70 degrees).
3b. Attach one side of the double-sided foam tape
to the base of the Mounting Plate.
3c. Attach the Mounting Plate to the Lateral Arm
approximately 4 inches from the end of the Lateral
Arm, where the Arm connects to the Front Bar.
Make sure the Arrow on the Mounting Plate is
facing UP. See Figure 4.
Note: The Mounting Plate when installed will face
toward the inside of the Awning.
CAUTION: Incorrect placement of the Mounting Plate
may damage the SENSOR when the Awning closes.
Front Bar
Valance
4"
Magnet
Mounting Plate
Figure 4
4. Remove the Sensor from the Housing using a small
flat blade screwdriver. See Figure 5.
Screwdriver
Housing
Figure 5
2
Lateral Arm
Closest to Motor
Sensor
