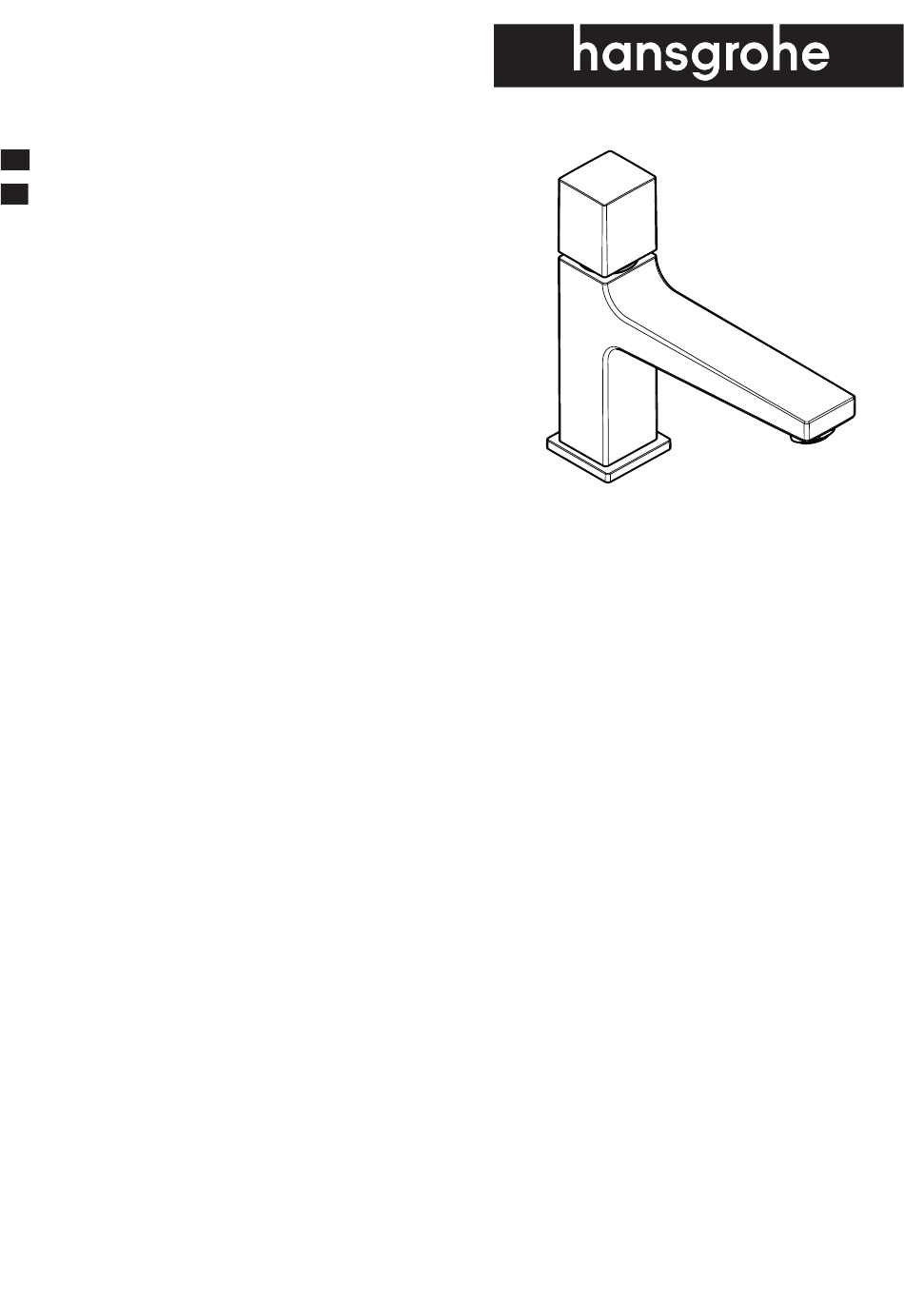

- Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / assembly instructions Metropol Select 110 32571007 I N S T A L L A T I O N...
- Page 2 中文 大小 (参见第页 8) 安全技巧 装配时为避免挤压和切割受伤，必须戴上手 流量示意图 (参见第页 8) 套。 ® 带有 EcoSmart 本产品只允许作为洗浴、卫生和洁身之用。 ® 无 EcoSmart 冷热水管间过大的压力差必须予以平衡。 备用零件 (参见第页 12) 安装提示 保养 (参见第页 9) • 安装前必须检查产品是否受到运输损害。 安装 后将不认可运输损害或表面损伤。 单向阀必须在符合国家或当地的法律的情况下按 • 管道和阀门必须根据通用标准进行安装、冲洗 照EN 806-5定期检查 (至少一年一次) 。 和检查。 清洗 (参见第页 10) • 请遵守当地国家现行的安装规定。 • 只能按规定使用溢流阀。禁止将半露柱及其他 操作 (参见第页 5) 部件固定到溢流阀上。 • 如果使用即热式热水器时出现问题，或要求更 • 汉斯格雅建议，清晨或在水流长时间停滞后， 大的水流量，可以把位于水波器后面的 前半升水不作饮用水使用。 EcoSmart ® (流量限制器) 拆除。...
-
Page 3: Safety Notes
English Recommended hot water temp.: 65°C Safety Notes Thermal disinfection: max. 70°C / 4 min Gloves should be worn during installation to prevent The product is exclusively designed for drinking water! crushing and cutting injuries. Symbol description The product may only be used for bathing, hygienic Do not use silicone containing acetic acid! and body cleaning purposes. The hot and cold supplies must be of equal Adjustment (see page 6) pressures. To adjust the hot water limiter. Using a hot water limiter Installation Instructions in combination with a continuous flow water heater is • Prior to installation, inspect the product for transport not recommended. damages. After it has been installed, no transport or Dimensions (see page 8) surface damage will be honoured. • The pipes and the fixture must be installed, flushed Flow diagram (see page 8) and tested as per the applicable standards. with EcoSmart ® • The plumbing codes applicable in the respective without EcoSmart ®... - Page 4 (3 Nm) SW 10 mm SW 19 mm SW 24 mm (4 Nm) (4 Nm)
- Page 5 > 2 min 开 / open 关 / close 热 / hot 冷 / cold...
- Page 6 60 °C 10 °C 0,3 MPa 35°C 39°C 43°C 47°C 57°C 60°C...
- Page 7 最大 / 至少/ min. max. (0,5 Nm)
- Page 8 Metropol Select 110 32571007 15 0 13 6 4 8 / 4 8 Ø 3 2 Push-Open 50100007 G 3 / 8 G 3 / 8 G 1 / 2 0,50 0,45 0,40 EcoSmart ® 0,35 0,30 0,25 0,20 0,15...
- Page 9 SW 19 mm SW 10 mm SW 10 mm SW 19 mm (4 Nm)
- Page 10 ⁄ • ⁄ • ⁄ • ⁄ • ⁄ Hansgrohe Hansgrohe • Hansgrohe Hansgrohe ⁄ • www.hansgrohe-int.com/guarantee ⁄ www.hansgrohe-int.com/guarantee • ⁄ • ⁄ QuickClean Q U I C K C L E A N • QuickClean QuickClean ⁄ • ⁄ •...
-
Page 11: Warranty
English Cleaning Recommendation for Hans- • After cleaning rinse thoroughly with clean water to C L E A N I N G R E C O M M E N D A T I O N F O R ⁄ After cleaning rinse thoroughly with clean water to remove any cleaner residue. - Page 12 Metropol Select 110 32571007 93070000 92526000 92528000 92527000 (27x1,5) 92529000 98398000 98866000 (23x2) 98422000 EcoSmart (7x1,5) 95661000 92996000 92936000 (32x1,5) 92531000 (450 mm) 92629000 (600 mm) 93048000 98749000 97548000 13961000 96456000 95291000 50100007 93395000 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
