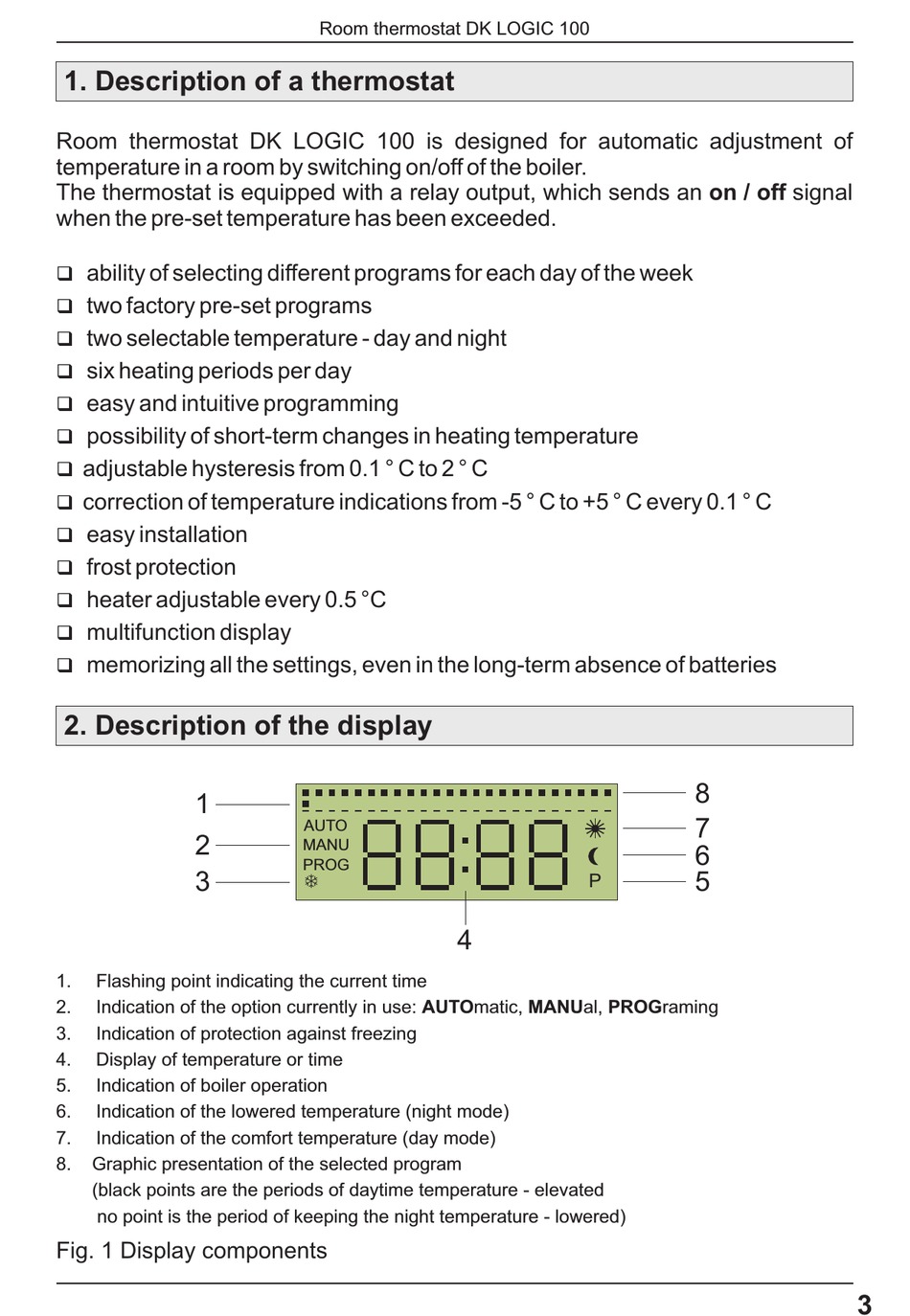

1. Description of a thermostat

Room thermostat DK LOGIC 100 is designed for automatic adjustment of
temperature in a room by switching on/off of the boiler.
The thermostat is equipped with a relay output, which sends an on / off signal
when the pre-set temperature has been exceeded.
ability of selecting different programs for each day of the week
q
two factory pre-set programs
q
two selectable temperature - day and night
q
six heating periods per day
q
easy and intuitive programming
q
possibility of short-term changes in heating temperature
q
adjustable hysteresis from 0.1 ° C to 2 ° C
q
correction of temperature indications from -5 ° C to +5 ° C every 0.1 ° C
q
easy installation
q
frost protection
q
heater adjustable every 0.5 °C
q
multifunction display
q
memorizing all the settings, even in the long-term absence of batteries
q

2. Description of the display

1
2
3
1. Flashing point indicating the current time
2. Indication of the option currently in use: AUTOmatic, MANUal, PROGraming
3. Indication of protection against freezing
4. Display of temperature or time
5. Indication of boiler operation
6. Indication of the lowered temperature (night mode)
7. Indication of the comfort temperature (day mode)
8. Graphic presentation of the selected program
(black points are the periods of daytime temperature - elevated
no point is the period of keeping the night temperature - lowered)
Fig. 1 Display components
Room thermostat DK LOGIC 100
AUTO
MANU
PROG
T
4
8
7
6
5
P
3
