DK System DK LOGIC 200 Manual

Wireless room thermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WIRELESS
ROOM
THERMOSTAT
DK LOGIC 200
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DK LOGIC 200 and is the answer not in the manual?

Questions and answers

Related Manuals for DK System DK LOGIC 200

Summary of Contents for DK System DK LOGIC 200

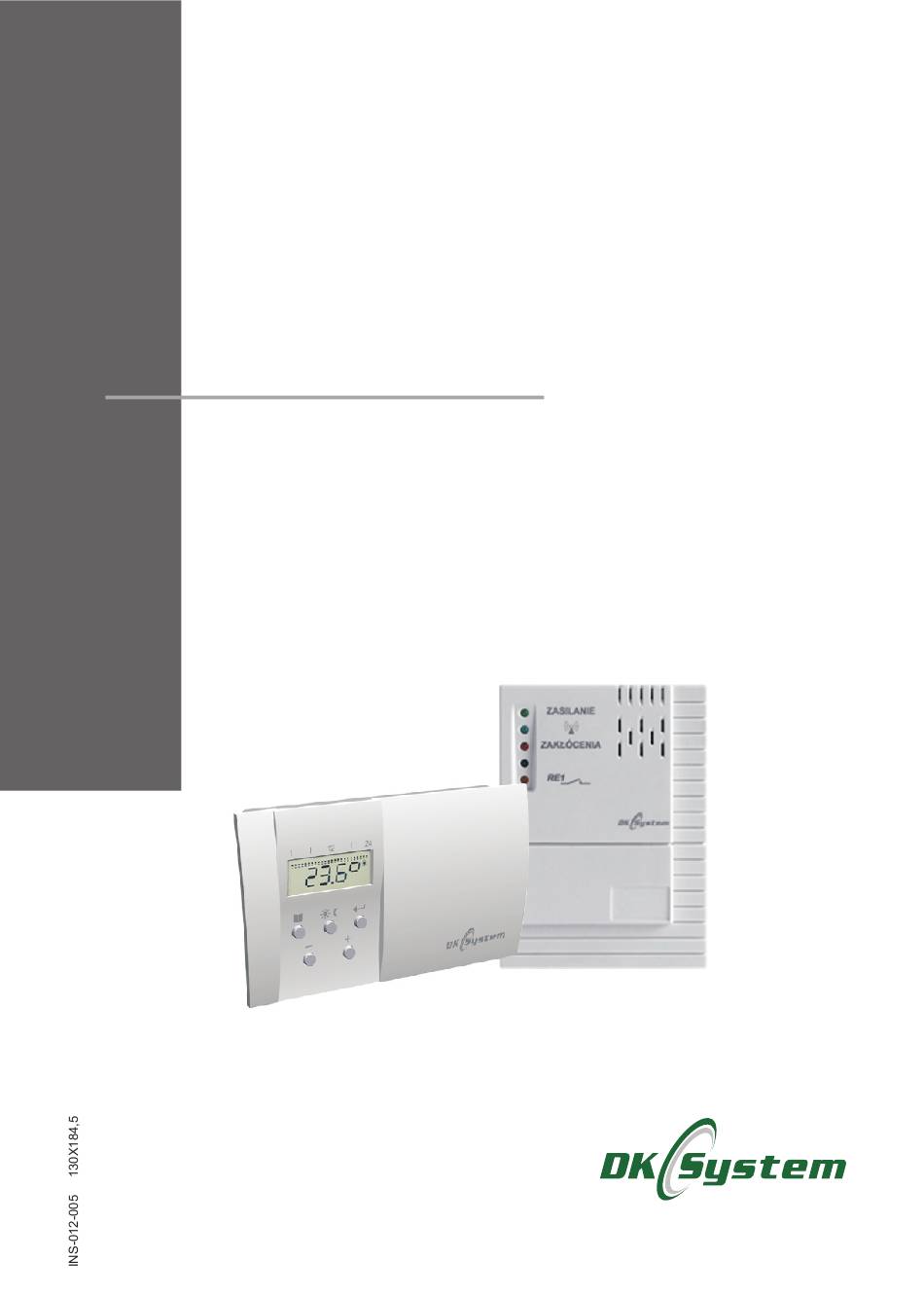

  • Page 1 WIRELESS ROOM THERMOSTAT DK LOGIC 200 Manual...

  • Page 2: Table Of Contents

    Wireless room thermostat DK LOGIC 200 Table of Contents 1. Description of a thermostat..............2. Notes on installation................3. Description of the transmitter components - display......4. Description of the transmitter components - buttons......5. Thermostat installation - transmitter............. 6. Description of the receiver components..........

  • Page 3: Description Of A Thermostat

    Wireless room thermostat DK LOGIC 200 1. Description of a thermostat A wireless room thermostat DK LOGIC 200 is designed for automatic adjustment of temperature in a room by switching on/off of the boiler. The thermostat is equipped with a relay output, which sends an on / off signal when the pre-set temperature has been exceeded.

  • Page 4: Description Of The Transmitter Components - Display

    Wireless room thermostat DK LOGIC 200 2. Notes on installation (cont.) Before starting the transmitter and receiver, you should check the electrical connections. Connection of the power cord should be made with the device powered off (a power plug must be disconnected from the mains). Connection of the devices with the mains plug of the controller plugged in creates an electric shock.

  • Page 5: Description Of The Transmitter Components - Buttons

    Fig. 2 Description of the transmitter's buttons 5. Thermostat installation - transmitter Thermostat DK LOGIC 200 should be located in a place not exposed to other sources of heat (radiator, fireplace, etc.), affecting the accuracy of the temperature readout in the room. The device consists of two parts: front - a microprocessor and rear - connector.

  • Page 6: Description Of The Receiver Components

    Wireless room thermostat DK LOGIC 200 6. Description of the receiver components POWER SUPPLY INTERFERENCES 1. Green diode - POWER SUPPLY 2. Blue diode - COMMUNICATION 3. Red diode - INTERFERENCES 4. Orange diode - RE1 boiler relay 5. Installation slots 6.

  • Page 7: Installation And Connection Of The Receiver To Electrical System

    Wireless room thermostat DK LOGIC 200 7. Installation and connection of the receiver to electrical system 1. Open the front part of the receiver housing. 2. Using two screws and dowels attach the receiver to the wall. 3. Turn off the voltage on a wire feeding the receiver.

  • Page 8: Receiver Encoding

    - a blue and red diodes will be flashing alternately. 3. At that time, a TEST function must be called on the DK LOGIC 200 transmitter. A code will be directed to a receiver: two diodes blue and red will blink twice at the same time.

  • Page 9: Description Of Leds Singalling System

    Wireless room thermostat DK LOGIC 200 10. Description of LEDs singalling system GREEN diode is on receiver well connected to the grid BLUE diode blinks sending or receiving the signal RED diode blinks no encoding - memory is empty RED diode is on...

  • Page 10: First Start

    Wireless room thermostat DK LOGIC 200 12. First start 1. When the batteries are in, the display will show AUTO 0:00 hours, and the thermostat will work in P1 mode - see point 13 “PROG mode - program- ming the automatic operation mode”.

  • Page 11: Program Pr. 1 And Pr. 2

    Wireless room thermostat DK LOGIC 200 13.1 Program Pr. 1 and Pr. 2 The Pr. 1 program carries out the heating process AUTO between 6.00 and 23.00 hrs. in all days of the week. The Pr. 2 program carries out the heating process AUTO between 6.00 and 8.00 and from 16.00 to 23.00 by...

  • Page 12: Example - Programming The Automatic Operation Mode

    Wireless room thermostat DK LOGIC 200 13.2 Programme Pr.3 - user settings (cont.) 2. Use the “-/+” to choose a day (range of days) to be programmed (acc. to the matching above) and confirm with . For d:1, 1:U1 will be...
  • Page 13 Wireless room thermostat DK LOGIC 200 13.3 Example - programming the automatic operation mode (cont.) 1. Set the values of a day and night temperature as described in point 21 “Setting the default day and night temperature”. PROG 2. Press...
  • Page 14 Wireless room thermostat DK LOGIC 200 13.3 Example - programming the automatic operation mode (cont.) PROG 7. Use the “-/+”buttons to set the hour to 16:00; and the button to set the symbol confirm by pressing . A symbol of the next...

  • Page 15: Momentary Temp. Change In Automatic Mode

    Wireless room thermostat DK LOGIC 200 13.3 Example - programming the automatic operation mode (cont.) 10. Without making any changes, press for a AUTO few times until the main screen is shown. Note: If no changes are made for three minutes in the PROG mode, the controller will automatically go to the AUTO mode.

  • Page 16: Protection Against Freezing Function

    Wireless room thermostat DK LOGIC 200 17. Protection against freezing function This function allows protecting the installation against freezing and turns the boiler on when the room temperature drops below 3 °C. 1. Press the button for a few times till a temperature of 3 °C appears on the screen...

  • Page 17: Par2 Mode - Program Version And Reset

    Wireless room thermostat DK LOGIC 200 19. PAr1 mode - a parameter visible on a main screen (cont.) 2. One of the following symbols will appear on the screen: C - means that the time will be seen on a main screen; t - means that the temperature will be seen on a main screen.

  • Page 18: Setting A Default Day And Night Temperature

    Wireless room thermostat DK LOGIC 200 21. Setting a default day and night temperature 1. Press the button ; currently set default comfortable temperature (day) will appear on the screen - the factory pre-set temperature is 21°C. Use the “-/+” buttons to set the parame- ters as per the user’s request;...

  • Page 19: Faults

    Wireless room thermostat DK LOGIC 200 23. Battery replacement (cont.) Note: After replacing the batteries, a BATT symbol may appear on the screen until the data and readings are reloaded in the controller. Also, after replacing the batteries, please check and adjust the time setting.

  • Page 20: Technical Data - Transmitter

    Wireless room thermostat DK LOGIC 200 25. Technical data - transmitter Power alkaline batteries 2 x 1.5 V type AA / LR6 Number of programs 6 per day Hysteresis 0.5°C Min. programmable time 10 min. Heating range from 5°C to 39°C Temperature setting accuracy 0.5°C...

  • Page 21: Table Of Programs

    Wireless room thermostat DK LOGIC 200 27. Table of programs start temp. start temp. start temp. start temp. start temp. start temp.
  • Page 22 Wireless room thermostat DK LOGIC 200 27. Table of programs start temp. start temp. start temp. start temp. start temp. start temp.

  • Page 23: Rules Of Conduct With Waste Electrical And Electronic Equipment

    Wireless room thermostat DK LOGIC 200 28. Rules of conduct with waste electrical and electronic equipment Utilization of Waste Electrical and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems). This symbol on the product or its packaging (according to the Act...
  • Page 24 ul. Przyjaźni 141 53-030 Wrocław tel. 71 333 73 88 tel. 71 333 74 36 fax 71 333 73 31 e-mail: biuro@dksystem.pl www.dksystem.pl...
