- Page 1 ROOM THERMOSTAT DK LOGIC 100 V. D1 Manual...
-
Page 2: Table Of Contents
Room thermostat DK LOGIC 100 Table of Contents 1. Description of a thermostat..............2. Description of the display..............3. Description of the keys................4. Thermostat installation................5. Options of the thermostat..............6. First start....................7. PROG mode - programming for automatic operation...... -
Page 3: Description Of A Thermostat

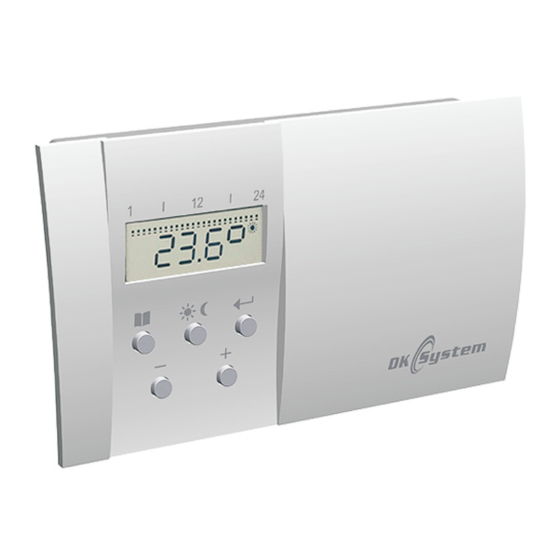

Room thermostat DK LOGIC 100 1. Description of a thermostat Room thermostat DK LOGIC 100 is designed for automatic adjustment of temperature in a room by switching on/off of the boiler. The thermostat is equipped with a relay output, which sends an on / off signal when the pre-set temperature has been exceeded. -
Page 4: Description Of The Keys
Fig. 2 Description of the keys 4. Thermostat installation Thermostat DK LOGIC 100 should be located in a place not exposed to other sources of heat (radiator, fireplace, etc.), affecting the accuracy of the temperature readout in the room. The device consists of two parts: front - a microprocessor and rear - connector. -
Page 5: Options Of The Thermostat
Room thermostat DK LOGIC 100 Thermostat installation (cont.) Boiler or programmer Room thermostat DK LOGIC 100 1. NO 2. COM 3. NC NO / COM CONTACT - Normally open: used in heating systems NC / COM CONTACT - Normally closed: used in refrigeration systems Fig. -
Page 6: First Start
Room thermostat DK LOGIC 100 5. Options of the thermostat (cont.) PAr2 Program # and RESET. PAr3 Room temperature correction. Allows you to correct the room temperature display (for value -5 ° C to + 5 ° C). PAr4 Hysteresis.This parameter specifies the... -
Page 7: Program Pr. 1 And Pr. 2
Room thermostat DK LOGIC 100 7. PROG mode - programming for automatic operation 1. Press twice until the PROG appears on the screen. Confirm by pressing PROG 2. Use “-/+” to select one of the programmes (Pr. 1, Pr. 2 or Pr. 3) and confirm by pressing For Pr. - Page 8 Room thermostat DK LOGIC 100 Program Pr.3 - user settings (cont.) Note: For each day of the week it is possible to set max. three day and night temperature periods, and its change is possible after at least 10 minutes (which is the minimum programmable time). They...
-
Page 9: Example - Programming Work In Program Pr.3
Room thermostat DK LOGIC 100 7.2 Programme Pr.3 - user settings (cont.) 6. Once the settings are done, press twice AUTO until the main scree is shown. 7.3 Example - programming the automatic operation mode °C A thermostat will be programmed for the entire week between 6 - 9 and 16 - 21 and a daily tempe- rature of 22°C will be set;... - Page 10 Room thermostat DK LOGIC 100 7.3 Example - programming the automatic operation mode (cont.) 5. Use the “-/+” buttons to set the hour to 6:00; and the buttom to set the symbol confirm by pressing . A symbol of the next...
-
Page 11: Momentary Temp. Change In Automatic Mode
Room thermostat DK LOGIC 100 7.3 Example - programming the automatic operation mode (cont.) 8. Use the “-/+” buttons to set the hour to 21:00; and the button to set the symbol confirm by pressing . A symbol of the next... -
Page 12: Manu Mode - Manual Operation Mode
Room thermostat DK LOGIC 100 9. MANU mode - manual operation mode The MANU mode allows changing the heating temperature without interfering with the set program. 1. Press the button for a few Times till the MANU symbol and temperature appears. -
Page 13: Clo Mode - Setting The Current Hour And Day
Room thermostat DK LOGIC 100 12. CLO mode - setting the current hour and day 1. Press the button for a few times till CLO symbol appears on the screen. Confirm by pressing 2. An indication of hour is blinking on a screen - this can be set by using the “-/+”... -
Page 14: Par3 Mode - Temperature Correction
Room thermostat DK LOGIC 100 14. PAr2 mode - program version and RESET (cont.) 1. Press the button for a few times till the PAr2 symbol appears. Confirm by pressing 2. A number of the installed program, e.g. 10.04 will appear on the screen. Pressing the button will cause the controller to switch to the main screen view. -
Page 15: Par4 Mode - Hysteresis
Room thermostat DK LOGIC 100 16. Tryb PAr4 - hysteresis Par4 Hysteresis.This parameter specifies the number of degrees C by which the temperature in the room below the preset temperature must fall in order for the thermostat to switch on the relay. -
Page 16: Off Function
Room thermostat DK LOGIC 100 18. OFF function OFF function allows turning the thermostat off. Press the button for a few times till OFF appears on the screen and confirm by pressing ; the current measured temperature or time will appear on the screen (depending on setting the... -
Page 17: Technical Data
Room thermostat DK LOGIC 100 21. Technical data Power alkaline batteries 2 x 1.5 V type AA / LR6 Number of programs 6 per day Hysteresis 0.5°C Min. programmable time 10 min. Heating range from 5°C to 39°C Temperature setting accuracy 0.5°C... -
Page 18: Table Of Programs
Room thermostat DK LOGIC 100 22. Program table Pr.3 - notes d.1÷d.7 Separate settings for each day of the week from an h. from an h. od godz. od godz. from an h. from an h. PROGRAM temp. temp. temp. -
Page 19: Rules Of Conduct With Waste Electrical And Electronic Equipment
Room thermostat DK LOGIC 100 23. Rules of conduct with waste electrical and electronic equipment Utilization of Waste Electrical and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems). This symbol on the product or its packaging (according to the Act... - Page 20 ul. Przyjaźni 141 53-030 Wrocław tel. 71 333 73 88 tel. 71 333 74 36 fax 71 333 73 31 e-mail: biuro@dksystem.pl www.dksystem.pl...
