- Page 1 IR608A Infrared Thermometer Users Manual • Mode d’emploi • Bedienungshandbuch • Manual d’uso • Manual de uso • Anvandärhanbok 1.800.561.8187 information@itm.com www. .com...

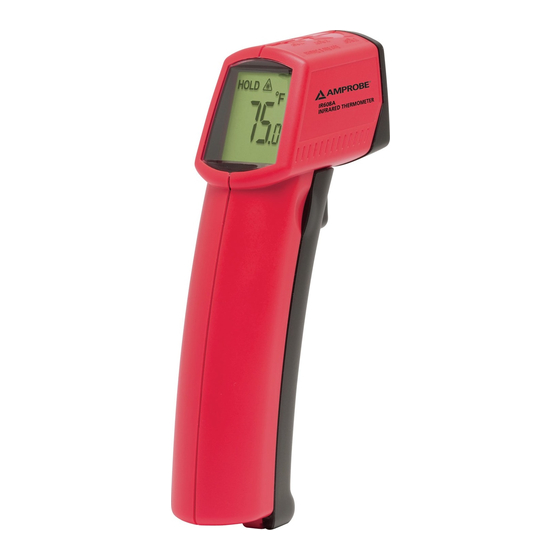

- Page 2 IR608A Infrared Thermometer • Display • Laser • Anzeige • Laser • Affichage • Laser • Pantalla • Láser • Display • Laser • Trigger • Messtaste • °C/°F Switch • Gâchette • °C/°F-Schalter • Gatillo • Commutateur °C/°F • Gatilho •...
- Page 3 IR608A Infrared Thermometer Users Manual • Battery Compartment • Batteriefach • Boîtier piles • Compartimento de las pilas • Compartimento de bateria 1.800.561.8187 information@itm.com www. .com...
- Page 4 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
- Page 5 Non-Warranty Repairs and Replacement – US and Canada Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and replacement rates.
-
Page 6: Table Of Contents
IR608A Infrared Thermometer CONTENTS SYMBOLS ..............1 INTRODUCTION ............2 SPECIFICATION ............2 HOW IT WORKS ............3 HOW TO OPERATE THE UNIT ........3 C/F and Battery ............3 Operating the Unit ..........3 Display ..............3 HOW TO ACCURATELY MEASURE TEMPERATURE ..3 Locating a Hot Spot ..........3 Field of View............4... -
Page 7: Symbols
SYMBOLS Caution! � Refer to the explanation in this Manual � Complies with European Directives Battery Warning � • Do not point laser directly at eye or indirectly off reflective surfaces. Cautions � All models should be protected from the following, •... -
Page 8: Introduction
INTRODUCTION We are confident you will find many uses for your handheld noncontact thermometer. Compact, rugged, and easy to use - just aim, pull the trigger, and read current surface temperatures in less than a second. You can safely measure surface temperatures of hot, hazardous, or hard-to-reach objects without contact. -
Page 9: How It Works
HOW IT WORKS Infrared thermometers measure the surface temperature of an object. The unit’s optics sense emitted (E), reflected (R), and transmitted (T) energy, which is collected and focused onto a detector. The unit’s electronics translate the information into a temperature reading which is displayed on the unit. -
Page 10: Field Of View
Field of View Make sure that the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size. Distance and Spot Size As the distance (D) from the object increases, the spot size (S) of the area measured by the unit... -
Page 11: Trouble Shooting
Note: • DO NOT use solvents to clean the plastic lens. Case Cleaning: Use soap and water on a damp sponge or soft cloth. • DO NOT submerge the unit in water. TROUBLE SHOOTING Code Problem Action --- (on display) Target Select target temperature is within...
