Page 1: Users Manual
TMD-55 / TMD-55W Multilogger Thermometer / Wireless Download TMD-56 Multilogger Thermometer with USB Download Users Manual For detailed specifications and ordering info go to www.TestEquipmentDepot.com... - Page 2 TMD-55 / TMD-55W Multilogger Thermometer / Wireless Download TMD-56 Multilogger Thermometer with USB Download Users Manual June 2010, Rev.1 ©2010 Amprobe Test Tools. All rights reserved. Printed in Taiwan...
- Page 3 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
- Page 4 Non-Warranty Repairs and Replacement – US and Canada Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and...

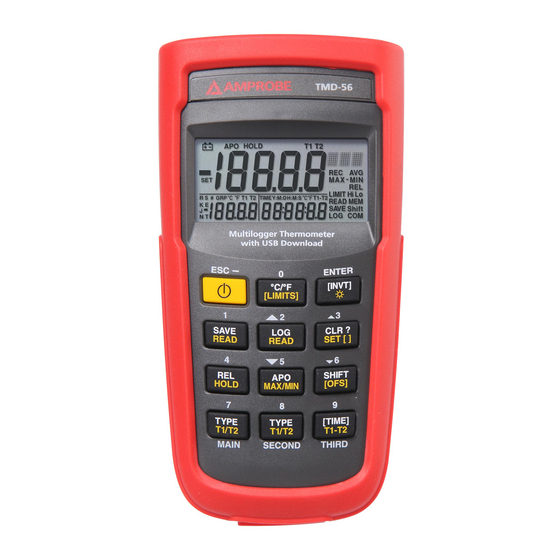

- Page 5 TMD-55 / TMD-55W / TMD-56 T1 T2 TMD-55W Multilogger Thermometer with Wireless Download TMD-55 Main Display Second Display Third Display Multilogger Thermometer 8) “APO/MAX/MIN”Button 1) “ ” Power Button 9) “SHIFT/[OFS]” Button 2) “°C /°F/[LIMITS]”Button 10) “TYPE/T1/T2” Button 3) “[INVT]/ ”Button...
-
Page 6: Screen Display
Screen Display 1)Main display 4)MAX/MIN reading 1.1)Degrees °C / °F 5)Relative mode 1.2)Type of T/C 6)Hi/Lo Limits thermocouple comparative mode 1.3)T1 or T2 7)Data SAVE/LOG and READ temperature mode 2)Second display 8)Shift mode 2.1)Degrees °C / °F 9)Low BATT display 2.2)Type of T/C 10)Auto power off thermocouple... -
Page 7: Table Of Contents
CONTENTS SYMBOLS ................3 UNPACKING AND INSPECTION ........5 INTRODUCTION ..............5 Features ................ 5 OPERATION INSTRUCTIONS ..........7 Operational Mode ............7 Normal Mode ............. 7 Shift Mode ..............7 Setup Mode ............... 8 Wireless Mode (For TMD-55W) ......... 8 To check the channel and ID of the mete .... - Page 8 “SAVE” Button ............12 “LOG” Button ............12 “CLR ?” Button ............13 “REL” Button ............. 13 “APO” Button ............13 “TYPE” Button (Main display) ........13 “TYPE” Button (Second display) ....... 14 Setup Mode ............... 14 “[LIMITS]” Button ............14 “[INVT]”...
-
Page 9: Symbols
SYMBOLS � Caution! Refer to the explanation in this Manual � Complies with European Directives Tested Comply With FCC Standards Do not dispose of this product as unsorted municipal waste. WARNING and PRECAUTIONS � • To avoid electrical shock, do not use this instrument when working voltages at the measurement surface over 24V AC or DC. - Page 10 and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
-
Page 11: Unpacking And Inspection
90 standard reference temperature/voltage tables. The thermometer features a dual thermocouple input and an adjustable T/C offset. Features TMD-55 and TMD-55W • Wireless two ways transmission. (TMD-55W only) • Dual input function. • Basic accuracy: 0.05% • 2 Channel Temperature Measuring: T1, T2 for various thermocouples. - Page 12 THIRD display for T1- T2, TIME. DATA LOGGER function • Data logger capacity: Save data: 128 samples with read-time data. Data logger: 16 sets, Maximum 1024 data capacity. Easy Reads Data with down and up key on meter. • T/C Offset Adjust. •...
-
Page 13: Operation Instructions
• MAIN display for T1/T2. • SECOND display for T1/T2. • THIRD display for T1-T2, with real time clock and calendar. Model Difference: Model Memories Wireless DC IN TMD-55 Save 128, Log 1024 TMD-56 Save 256, Log 16000 TMD-55W Save 128, Log 1024... -
Page 14: Setup Mode
Setup Mode Press the “SET[ ]” button in normal mode to switch to setup mode, the indicator “SET” is shown on the left side of the display. To switch back to normal mode, press “SET[ ]” button. Wireless Mode Press the “ ” key for more than two seconds to start wireless function. -
Page 15: Button
When the value of the main display exceeds the Hi limit, the word “Hi” will be displayed and the thermometer will beep in a pulsed tone. If the value of the main display is lower then the Lo limit, the word “Lo” will be displayed and the thermometer will beep in a continuous tone. -
Page 16: Hold" Mode
Displays the current location of the read pointer within a selected group. The arrow buttons on the overlay are used for scrolling through the data and groups. Press the smaller arrows “p” or “q” to step through the logged data or groups one at a time. Press the larger arrows “p” or “q”... -
Page 17: T1/T2" Button (Main Display)
erased). Press “HOLD” key again to resume recording and measurements. To prevent accidental loss of MIN, MAX and AVG data, the MAX/MIN function can only be cancelled by pressing and holding down the “MAX/MIN” key for more then 2 seconds. The automatic power-off feature, and the power, “°C/°F”, “REL”, “SET”, “Hi/Lo LIMITS”, “TYPE”, “T1/T2”... -
Page 18: Save" Button
“SAVE” Button (TMD-56 except) The save function stores the T1, T2 data in a nonvolatile memory. Press the “SAVE” button to save the current data, the word SAVE is displayed to indicate the data has been saved. The built in memory can store up to 128 data. -
Page 19: Clr ?" Button
point can be saved in one log session. Press the “LOG” button again to exit the data log function. “CLR ?” Button The CLR function clears all the saved and logged data in memory. When the “CLR” button is pressed, indicator “MEM”... -
Page 20: Type" Button (Second Display)
“TYPE” Button (Second display) Press this key to change the type of thermocouple in the second display (K/J/T/E/R/S/N). If the inputs of the main and second display are the same, then pressing this key will change the thermocouple type for both displays. Setup Mode The following functions can only be use in the setup mode. -
Page 21: Apo" Button
“APO” Button (Auto power off time setting, min. 1 minute) Use this function to change the time for the auto power off (APO) function. Press the “APO” button in setup mode, and the indicator “APO” and the current time will flash on the LCD. -
Page 22: Specification
Err-01: In the “SAVE” mode, if memory is full, the lower right display will show Err-01. If you would like to record the new value. Please clear all old records. Err-02: In the “LOG” mode, if memory is full, the lower right display will show Err-02. - Page 23 Accuracy: K/J/T/E-TYPE ±(0.05% rdg + 0.3°C) -50°C to 1372°C ±(0.05% rdg + 0.7°C) -50°C to -210°C ±(0.05% rdg + 0.6°F) -58°F to 2501°F ±(0.05% rdg + 1.4°F) -58°F to -346°F N-TYPE ±(0.05% rdg + 0.8°C) -50°C to 0°C ±(0.05% rdg + 0.4°C) 0°C to 1300°C ±(0.05% rdg + 1.6°F) -58°F to 32°F...
- Page 24 General Display Main, Second, Third: The Main and Second display panels are 4 ½ digit liquid crystal display (LCD) with maximum reading of 19999, these panels are used for is playing the value of T1 or T2. The Third panel displays the date, time, or the difference value of T1 to T2.
-
Page 25: Maintenance
Wire 19200 baud rate. (TMD-56) Communication Protocol Wireless Features Frequency range 910~920MHz (TMD-55W) Low current consumption less than 1mA. The transmitting distance can reach 25M without magnetic interference. � - EMC: Conforms to EN61326-1. This product complies with requirements of the following European Community Directives: 89/ 336/ EEC (Electromagnetic Compatibility) and 73/ 23/ EEC (Low Voltage) as amended by 93/ 68/ EEC (CE Marking). - Page 26 1. Power is supplied by 4pcs 1.5V (SIZE AAA) UM-4 R03. 2. The “ ” appears on the LCD display when replacement is needed. To replace battery remove screw from back of meter and lift off the battery cover. 3. Remove the batteries from the battery compartment and replace them with new ones.
