Summary of Contents for Kramer FC-42
- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: FC-42 Component To HD-SDI Converter...
-
Page 2: Table Of Contents
Figure 3: Connecting a PC without using a Null-modem Adapter Tables Table 1: FC-42 Component To HD-SDI Converter Features Table 2: The Converter Menu Items Table 3: Technical Specifications of the FC-42 Component To HD-SDI Converter Table 4: Local Parameter Data Table 5: Global Parameter Data... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
A lockable front panel to prevent unintentional tampering with the unit The FC-42 can be controlled via its front panel with a user-friendly LCD, and also has an RS-232 interface. It is housed in a 19” 1U rack mountable enclosure, and is fed from a 100-240 VAC universal switching power supply. -

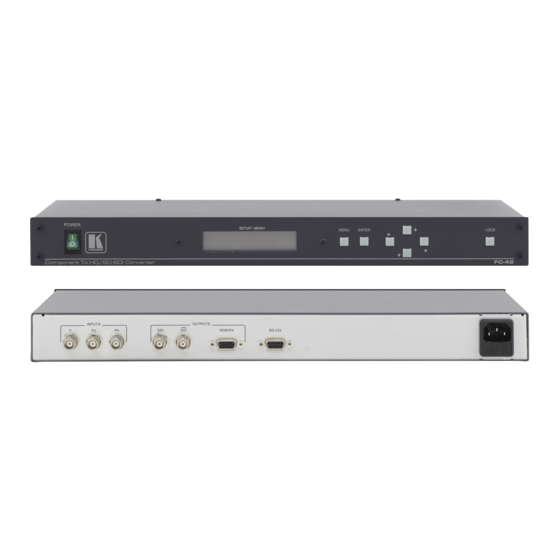

Page 6: Figure 1: Fc-42 Component To Hd-Sdi Converter
Your FC-42 Component To HD-SDI Converter Figure 1: FC-42 Component To HD-SDI Converter KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Table 1: Fc-42 Component To Hd-Sdi Converter Features
Your FC-42 Component To HD-SDI Converter Table 1: FC-42 Component To HD-SDI Converter Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF SETUP / MENU LCD Display Displays the setup and the menu MENU Button Press to open the menu (see section 7.1) -
Page 8: Installing The Fc-42 In A Rack
Installing the FC-42 in a Rack Installing the FC-42 in a Rack This section describes what to do before installing in a rack and how to rack mount. Before Installing in a Rack How to Rack Mount Before installing in a rack, be sure that the environment is... -
Page 9: Connecting The Fc-42 Component To Hd-Sdi Converter
4. Connect the power cord (not shown in Figure 2). 1 Switch OFF the power on each device before connecting it to your FC-42. After connecting your FC-42, switch on its power and then switch on the power on each device. -
Page 10: Figure 2: Connecting The Fc-42 Component To Hd-Sdi Converter
Connecting the FC-42 Component To HD-SDI Converter Figure 2: Connecting the FC-42 Component To HD-SDI Converter KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Connecting A Pc
Connecting the FC-42 Component To HD-SDI Converter 6.1 Connecting a PC To connect a PC to the FC-42, using the Null-modem adapter provided with the machine (recommended): Connect the RS-232 9-pin D-sub rear panel port on the FC-42unit to the... -
Page 12: Using The Fc-42 Component To Hd-Sdi Converter
Press the illuminated LOCK button for more than three seconds, until the LOCK button is no longer illuminated The front panel unlocks 7.2 Operating the FC-42 Component To HD-SDI Converter The converter can save and load up to 16 setups via the converter menu. To use the menu, press the:... -
Page 13: Table 2: The Converter Menu Items
Using the FC-42 Component To HD-SDI Converter Table 2: The Converter Menu Items Menu Item Submenu Select Notes LOAD … SETUP From 1 to 16 SAVE SETTING AS From 1 to 16 SET … STANDARD SELECT MODE AUTO, FORCED SET … STANDARD... -
Page 14: Technical Specifications
Technical Specifications Technical Specifications Table 3 includes the technical specifications for the FC-42. Table 3: Technical Specifications of the FC-42 Component To HD-SDI Converter INPUT: 1 component video - Y, PB, PR, on 3 BNC connectors OUTPUTS: 2 SDI on BNC connectors... -
Page 15: Communication Protocol
Communication Protocol Communication Protocol The FC-42 is compatible with the protocol described below. For RS-232, a null-modem connection between the FC-42 and controller is used. The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit. All the values shown are hexadecimal. -
Page 16: Table 4: Local Parameter Data
-32% - +31% (1% step) Y-gain -64% - +63% (1% step) Gain -64% - +63% (1% step) Color -64% - +63% (1% step) -64% - +63% (1% step) -64% - +63% (1% step) Sharpness 0% - +150% (10% step) KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 17: Table 5: Global Parameter Data
- 1st byte: 0x7d - 2nd byte: 0x80 + 0x00 (0 dec) - 3rd byte: 0x80 + 0x29 (42 dec) - for the unit FC-42 - 4th byte: 0x98 NOTE 4: The reply to the Identify Firmware command shows the firmware version as... - Page 18 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 19 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
