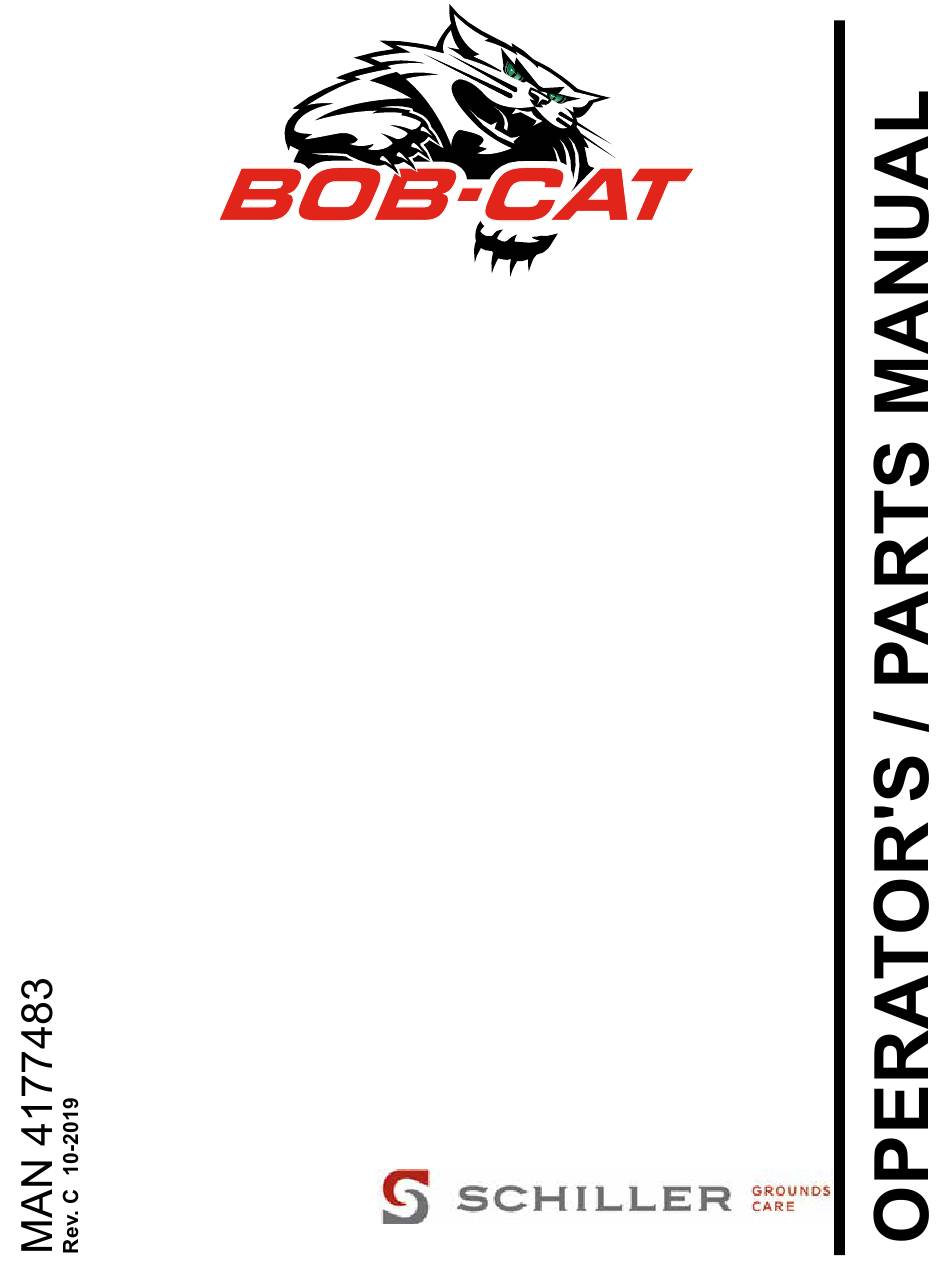

  • Page 1 9995010 BC PROCAT 5000 B&S VAN 24HP W/48 SIDE DISCHARGE TA (S/N 0142 thru Present) 9995011 BC PROCAT 5000 B&S VAN 24HP W/52 SIDE DISCHARGE TA (S/N 0196 thru Present) 9995012 BC PROCAT 5000 B&S VAN 26HP W/61 SIDE DISCHARGE TA (S/N 0173 thru Present) www.bobcatturf.com...

  • Page 2: California Proposition

    WARNING ADVERTENCIA The engine exhaust from this product El estado de California hace saber contains chemicals known to the State que los gases de escape de este of California to cause cancer, birth producto contienen productos quÍmi- defects or other reproductive harm. cos que producen cáncer, defectos de nacimiento y otros daños en el proceso de reproducción humana.
  • Page 3 Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation.
  • Page 4 Schiller of hazard seriousness. These words appear in this Grounds Care, Inc. Engineering Department. Any manual and on the safety labels attached to Schiller Schiller Grounds Care, Inc. product that is altered, Grounds Care, Inc. machines. For your safety and...
  • Page 5 SAFETY PREPARING FOR SAFE OPERATION mower safely enough to protect themselves and others from injury. Operator preparation and training – Read, understand, and follow instructions and – Do not carry passengers, especially small children. warnings in the manual and on the machine, They may fall off and be seriously injured.

  • Page 6: Machine Preparation

    SAFETY MACHINE PREPARATION – Do not tamper with or defeat safety devices. Keep WARNING guards, shields and interlock safety devices in place Under certain conditions, static electric- and in proper working condition. They are for your ity can cause sparks during fueling and protection.

  • Page 7: Operating Safely

    SAFETY – Use care when approaching blind corners, shrubs, OPERATING SAFELY WARNING threes, or other objects that may obscure vision. Operating engine parts, especially the muffler, become – Do not direct discharge towards others. extremely hot. Sever burn can result from contact. –...
  • Page 8 SAFETY MOWING SLOPES attachments. These can change the stability of the machine. WARNING – Remove obstacles such as rocks, tree limbs, etc. Operating on wet grass or steep from the grass cutting area. slopes can cause sliding and loss of control. Wheels dropping over –...
  • Page 9 SAFETY TRANSPORTING – Know the conditions such as wet grass/ground, slopes, lose gravel, etc., as these factors will WARNING affect the traction and handling characteristics of Loading a machine onto a trailer or truck increases the mower and towed equipment. For example, the possibility of tip-over and could cause serious wet grass reduces traction and control of the injury or death.

  • Page 10: Maintenance Safety

    SAFETY MAINTENANCE SAFETY HYDRAULIC SYSTEM In General – Keep the machine in good working order. – Maintain machine according to manufacturer's Hydraulic fluid escaping under pressure can pene- schedule and instructions for maximum safety trate skin and cause injury. Fluid accidentally inject- and best mowing results.

  • Page 11: Storage Safety

    SAFETY BLADES Jump starting 1. Be sure the jumper cables are in good condition. Turn off the ignition and all electrical accessories on both machines. 2. Position the machine with a good (charged) bat- – Mower blades are sharp and can cut. Use extra tery next to but not touching the machine with the caution when handling.
  • Page 12 LABELS BEFORE STARTING OR SERVICING: Read and understand the Operator's Manual & labels. • Be sure machine is in safe operating condition. Use 1/2” drive to • Move traction levers to neutral lock, parking brake to ON. • Set PTO switch to OFF. back tensioning idler off to remove belt BEFORE LEAVING SEAT:...
  • Page 13 LABELS OPERATOR'S MANUAL IS LOCATED UNDER THE FOOT PLATE. 4167202 TO CHECK OR ADD FUEL USED ON 61" MODELS -Do it outdoors. -Stop engine. Allow to cool. -Do not smoke. -Clean up spilled fuel. -Do not overfill. -Fill to one inch below bottom of filler neck.

  • Page 14: Pinch Point

    LABELS 4175470 4175471 4176221 WARNING SPARKS OR FLAME CAN START EXPLOSION. DISCONNECT (-) NEGATIVE TERMINAL FIRST. RECONNECT (-) NEGATIVE TERMINAL LAST. 4175963 4175482 PINCH POINT California Proposition 65 - Keep hands clear. 4176392 WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov. WA R N I N G ADVERTENCIA: Cãncer and Daño Reproductivo- www.P65Warnings.ca.gov.

  • Page 15: Right Side Control Panel

    CONTROLS RIGHT SIDE CONTROL PANEL THROTTLE (T) - Move the throttle lever forward to POWER TAKE OFF (PTO) SWITCH (P) - The increase engine speed until the maximum governed operator must be in the seat when engaging the PTO engine RPM is reached. Move the lever rearward to or the engine will kill.
  • Page 16 CONTROLS FUEL VALVE (U) - DECK LIFT & A fuel tank selector valve is TRANSPORT LATCH LEVER (D & T) provided. The fuel tank selector valve has three posi- - Pull tions: back on the deck lift lever D to raise the deck . When the deck is completely raised, the transport latch T Off: The tank selector is off when the lever points down.
  • Page 17 CONTROLS FOOT LIFT PEDAL (F) The foot lift pedal F, allows the operator to raise the mower deck to clear an object without removing his/ her hands from the traction controls. The foot pedal may also be used to assist lifting the deck by hand. Press on foot pedal F to raise the deck.

  • Page 18: Pushing The Machine

    PUSHING THE MACHINE PUSHING THE MACHINE The machine may be pushed with the engine off, the parking brake off, and the bypass valves open. To open the bypass valves, move the parking brake to the OFF position, then lift and pull bypass control rod C through the large opening D, until the control rod stop is past the opening.

  • Page 19: Pre-Operation Checklist

    PRE-OPERATION CHECKLIST PRE-OPERATION CHECK LIST (OWNER’S RESPONSIBILITY) ___ Never allow riders. ___ Review and follow all safety rules and safety ___ Inspect area and remove stones, branches or decal instructions. other hard objects that might be thrown, ___ Check that all safety decals are installed and in causing injury or damage.

  • Page 20: Operation

    OPERATION FUELING OPERATOR PRESENCE INTERLOCK SYSTEM – Fill fuel tanks with good quality, clean, unleaded gasoline. To start the engine: – Use a funnel to avoid spillage. – The PTO switch must be OFF. – Both traction levers must be in the neutral lock position.

  • Page 21: Operating Notes

    OPERATION OPERATING NOTES - Practice at slow engine and travel speeds with the PTO off until fully familiar with the controls. - For normal cutting the throttle should be set at the full open position. By using the traction levers to speed up or slow down the machine during use, maximum control and cutting efficiency can be maintained.
  • Page 22 OPERATION Use caution when making turns. Slow down before making sharp turns to help maintain control and to prevent torn turf from skidding or spinning tires. To help prevent turf damage, keep both drive tires moving whenever a turn is made. TIP: The best way to make a sharp "zero"...

  • Page 23: Cutting Tips

    OPERATION CUTTING 1. Place the discharge chute in the down position or correctly fit a grass collector or mulcher plate. DANGER 2. Sit in the seat. 3. Start the engine. 4. Turn the blades on by pulling up on the PTO ROTATING BLADES switch.

  • Page 24: Maintenance Chart

    MAINTENANCE CHART Maintenance is an ongoing job. These intervals are maximum times between mainte- nance operations. Perform more often under severe conditions. MAINTENANCE OPERATION EVERY EVERY EVERY EVERY EVERY FIRST 5 DAILY HOURS HOURS HOURS HOURS HOURS HOURS ENGINE Consult the engine manual for additional information and instructions Check/Top Off Oil Levels Check For Leaks...

  • Page 25: Maintenance Record

    MAINTENANCE RECORD NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ & & r i f , l i t l i...

  • Page 26: Maintenance

    MAINTENANCE CHECK DAILY Operator Presence Interlock System - Start Operation For the engine to crank, the parking brake must be on, the PTO (blades) off and traction levers in the neutral lock position. Sit in the seat and check, one by one, if the engine will crank with the parking brake off, the blades on, and either traction lever out of neutral lock.
  • Page 27 MAINTENANCE LUBRICATION Every 50 hours of operation, lubricate the following points (1-4) with grease: 1. Deck lift rockshaft (1 point-lift seat to access) 2. Deck lift pivots (4 points) 3. Caster wheel pivots (2 points) (Lubricate every 500 hours or once a year) 4.

  • Page 28: Engine Oil

    MAINTENANCE ENGINE OIL Do not perform engine maintenance without the engine off, spark plug wires disconnected and PTO disengaged. AFTER FIRST FIVE (5) HOURS While the engine is warm: 1. Release the oil drain hose assembly from the engine clip J. Route hose assembly through bumper.
  • Page 29 MAINTENANCE HEAVY DUTY CYCLONIC AIR CLEANER Clean and replace the air cleaner element as specified in the service chart. Uneven running, lack of power or black exhaust fumes may indicate a dirty air cleaner. To replace air cleaner elements: 1. Unclamp end cover X and remove existing cleaner elements.

  • Page 30: Transaxle Fluid Change

    TRANSAXLES Inattention to proper safety, operation, or maintenance procedures could result in personal injury, or damage to the equipment. Schiller Grounds Care, Inc. recommends returning the machine to your authorized Schiller Grounds Care, Inc. dealer for service or repair. Check and change oil after inital 75-100 hours.
  • Page 31 MAINTENANCE PURGING TRANSAXLES 1. Check the transaxle fluid, fill to proper level, if required. Due to the effects air has on efficiency in hydrostatic 2. Raise the drive wheels off the ground. Support drive applications, it is critical that it be purged from unit with jack stands or other suitable means.
  • Page 32 MAINTENANCE BLADE BALANCE BLADE REMOVAL Follow these instructions to prevent injury during Blade balance must be maintained at 5/8 oz-in blade removal: (19.4 g-cm) or less. Failure to keep blades balanced 1. Loosen with a box wrench or a socket and long causes excess vibration, wear, and shortened life of breaker bar.

  • Page 33: Cleaning Machine

    MAINTENANCE CLEANING MACHINE Clean the machine after use. Compressed air is recommended. Do not use a pressure washer. The machine will run cooler and last longer if kept free of clippings and other debris. A clean machine also re- duces the risk of fire due to accumulation of combus- tible debris and chaff.
  • Page 34 ADJUSTMENTS ROLL OVER PROTECTION STRUCTURE (ROPS) SERIOUS INJURY OR DEATH MAY RESULT This machine is equipped with a folding Rollover FROM MACHINE ROLLOVER Protection Structures (ROPS). • DO NOT OPERATE MACHINE ON STEEP SLOPES OR NEAR DROP OFFS • ALWAYS USE SEAT BELTS WITH ROPS IN ROPS in Vertical Position RAISED POSITION –...

  • Page 35: Deck Leveling

    ADJUSTMENTS DECK LEVELING a) Park the machine on a smooth, level surface. Raise the deck to the transport position. b) Tires are overinflated for shipping. Set tire pres- sures to 12 psi for the rears and 15 psi for the front pnuematic tires.

  • Page 36: Height Of Cut

    ADJUSTMENTS HEIGHT OF CUT Blades may be sharpened by filing or grinding. Height of cut may vary due to the amount of tread on the tires, tire diameter or inflation pres- sure. For best results, adjust the deck rollers for the height of cut to be used (see below).
  • Page 37 ADJUSTMENTS FRONT DECK LIP Cutterdecks have adjustable front lips to accommo- date various conditions. To adjust per conditions: 1. Loosen the front bolts S. 2. Adjust height of H. 3. Retighten S once you have desired height. DECK COUNTERBALANCE SPRINGS The deck counter balance springs make it easier to lift the deck and help it ride up over obstacles.
  • Page 38 ADJUSTMENTS TRACTION LEVERS Lateral Adjustment (LA) The traction levers are adjustable so they don’t rub on the guide slots. 1. Make the traction lever lateral adjustment by putting a 7/16 socket on an extension through the hole in the side of the frame. Turn in the adjusting screw until the traction lever just clears the inside of the guide slot.
  • Page 39 ADJUSTMENTS CONTROL LINKAGE NEUTRAL To adjust the control linkage to neutral: 1. Move the traction control levers to the neutral lock position. 2. Leave the engine off. Raise the seat for access. Disconnect the cable that limits how far the seat can tilt foward, and tilt the seat forward until it rests on the stops built into the seat.

  • Page 40: Parking Brake

    ADJUSTMENTS HYDROSTAT NEUTRAL ADJUSTMENT 4. Start the engine. Stay clear of any moving parts The hydrostats used on this machine are factory set including the wheel hub. in neutral and should never require adjustment. If for some reason the neutral position on the hydrostat 5.

  • Page 41: Belt Guides

    ADJUSTMENTS BELT GUIDES There are two adjustable belt guides for the cutter deck drive belt. The guides should be set 1/8-1/4" from the cutter deck drive belt when height of cut is set at 3-1/4". Adjust distance to 1/8" - 1/4" between deck drive belt and guides.

  • Page 42: Belt Replacement

    BELT REPLACEMENT Note: For best performance use Schiller Grounds Care, Inc. replacement belts. Schiller belts are engineered for the specific drive they are used on and will normally last longer. CUTTERDECK BELT 1. Set the deck to the middle of the height-of cut range.
  • Page 43 BELT REPLACEMENT TRACTION DRIVE BELT 1. Set the height of cut to 3". 2. Remove the LH belt cover. Use a 1/2" breaker bar and extension Figure 1 to back off the deck tensioning idler and remove the cutter deck belt from the LH spindle pulley.

  • Page 44: Specifications

    SPECIFICATIONS POWER UNITS switch DRIVE SYSTEM: WHEELS & TIRES: HydroGear ZT-3400 Hydrostatic Transaxle Drive wheels: Max Torque Output: 677 N•m (500 ft-lb) 9995010: Internal cogged parking brake 24 X 8.5 -12 4-Ply rated Turf Tread Tires Transaxle Oil Capacity 2.5 qts. (2.4L) approx. 9995011 &...
  • Page 45 SPECIFICATIONS ENGINES MODEL NUMBERS 9995010 & 9995011 9995012 MANUFACTURER Briggs & Stratton Briggs & Stratton MODEL 24HP 26HP DISPLACEMENT 810 cc (49.5 in³) 810 cc (49.5 in³) CYLINDERS BORE / STROKE 84 X 73 mm 84 X 73 mm (3.30 X 2.89 in") (3.30 X 2.89 in") COMPRESSION 8.4:1...
  • Page 46 ACCESSORIES 5000 Series Kit Description 48" Deck Kit P/N 52" Deck Kit P/N 61" Deck Kit P/N ECO Plate Kit 970623 970577 970567 Mulching Kit 970589 970578 970588 Striping Kit 970592 970593 970593 3.75 Bushel Poly Grass Catcher 970591 970591 970591 5 Bushel Poly Grass Catcher 970590...
  • Page 47 PARTS SECTION PARTS SECTION...
  • Page 48 ENGINE DECK ASSY FIGURE 1...
  • Page 49 ENGINE DECK ASSY FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4177964.2 PLT-ENGINE 4177846 WLDMT-ARM, IDLER LG 4174604 PULLEY-ENGINE 4128004 BEARING-BALL 10 X 26 X 8 64205-009 BLT-METRIC M10-1.5X65 64144-40 SNAP RING-26MM 4177359.7 DEFLECTOR-ENGINE AIR 4127999 SEAL-16 X 24 X 7 4176968 ENGINE-B&S 24HP 4174553...
  • Page 50 BUMPER / WRAP FIGURE 2...
  • Page 51 BUMPER / WRAP FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64139-08 BLT-WLF 5/16-18X3/4 64141-6 NUT-WLF 5/16-18 4116761 LABEL-MADE IN USA 4177992 S-FRAME W/ LABELS 64262-011 BLT-FLG HD 3/8-16 X 1 64268-03 NUT-FL NYLON LOCK 3/8-16 4177290 S-BUMPER/WRAP, W/LABELS 4176399 LABEL-LIFT POINT 4177845.2...
  • Page 52 FUEL TANKS/CONTROL PANEL FIGURE 3 To Engine To Engine...
  • Page 53 FUEL TANKS/CONTROL PANEL FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4177992 S-FRAME W/ LABELS 4175240 S-TANK,LH W/ LABELS INCLUDES ITEMS 4-8 4175241 S-TANK, RH W/ LABELS INCLUDES ITEMS 4-8 4132325 GROMMET-SEALING 4174476-1 TUBE-FUEL PICK-UP 4165763 VENT-TANK 4174343 GROMMET-ROLL OVER VENT 4174476-2 GAUGE-FUEL,ANALOG...
  • Page 54 TRANSAXLES/REAR WHEEL FIGURE 4...
  • Page 55 TRANSAXLES/REAR WHEEL FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4174166.7 PLT-TRANSAXLE SUPPORT,REAR 1 4174426 TRANSAXLE-3400, LH 4174427 TRANSAXLE-3400, RH 4176355 FAN / PULLEY KIT 4142045-06 FILTER-TRANSAXLE 4176523 BRKT-DUMP VALVE 4175524 WHEEL-ASSY,24X8.5-12 BLK 4175524-02 RIM-12 X 7, 4 HOLE 4175524-01 TIRE-24X8.5-12 OTR USED ON 9995010 MODELS 4175523...
  • Page 56 CONTROL HANDLE ASSY FIGURE 5...
  • Page 57 CONTROL HANDLE ASSY FIGURE 5 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175188 BRKT-SWITCH CONTROL, RH 4175189 BAR-TRACTION CONTROL 4176308 PLT-CTRL 4176072 GRIP-CONTROL, ERGO 4174269.2 TUBE-CONTROL 64152-49 SCREW-SLT HH 10-24X3/4 64025-15 NUT-HEX #10-24 KEPS 4176944 PLT-CONTROL LEVER 64123-343 BLT-HEX 1/4-20X1 NYLON 64006-03 LOCKWSHR-3/8 HELICAL 64209-18...
  • Page 58 CONTROL / BRAKE ASSY FIGURE 6 14 20 49 48 29 15...
  • Page 59 CONTROL / BRAKE ASSY FIGURE 6 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4177992 S-FRAME W/ LABELS 4174272.7 PLT-SUPPORT, CONTROLS 64123-50 BLT-HEX 3/8-16X1 4127142 BUSHING-CONTRL ARM 4143571 ROD-CONTROL 64262-006 BLT-FLG HD 5/16-18X3/4 4143595-02 ROD END-FEMALE 5/16-24 LH 4174889 DAMPER-CONTROL 4143595-01 ROD END-FEMALE 64237-05 LOCKNUT-NYLON M8-1.25...

  • Page 60: Height Of Cut Assembly

    HEIGHT OF CUT ASSEMBLY FIGURE 7...
  • Page 61 HEIGHT OF CUT ASSEMBLY FIGURE 7 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4177992 S-FRAME W/ LABELS 2722719 SPRING-DECK LIFT 4167018 PIN-DECK LIFT 4176873 S-HOC PLT W/ LABELS 2183071-03 SPACER 4174079.7 PLT-LINK, DECK LIFT 4174076.2 BRKT-HANGER, DECK LIFT 4174080.7 PLT-LINK, HOC 4173953 PLT-GEAR, HOC...
  • Page 62 BATTERY BOX & GUARDS FIGURE 8...
  • Page 63 BATTERY BOX & GUARDS FIGURE 8 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4177992 S-FRAME W/ LABELS 4175868 GROMMET-RUBBER, 1.0 ID 64268-01 NUT-FL NYLON LOCK 1/4-20 64018-42 BLT-CRG 1/4-20 X 1 4171606-2 CLAMP-HALF, 5/8 HOSE 4176049.2 BRKT-SM FAN GUARD, RH 4176048.2 BRKT-SM FAN GUARD, LH 64268-03...
  • Page 64 UPPER WIRE HARNESS FIGURE 9 12V AUX WIRE COLOR WIRE GA. BLACK BROWN BLUE W/ WHITE STRIPE BROWN W/ YELLOW STRIPE DARK BLUE GREEN GREEN W/ BLACK STRIPE GREEN W/ WHITE STRIPE PARKING BRAKE GREEN W/ YELLOW STRIPE LIGHT BLUE SEAT LIGHT GREEN SWITCH...
  • Page 65 UPPER WIRE HARNESS FIGURE 9 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175966A HARNESS-WIRING, UPPR 128010 SWITCH, KEY 2188154 MODULE-DELAY 2721505 SWITCH-PTO 2188156 SWITCH-NONO DBL POLE 4177930 METER-HOUR MAG SENSOR 4173756 FUSE-20 AMP MINI 4173755 RELAY-SPDT MICRO 108208 SWITCH DBL POLE NC/NO 10 4142266 CONNECTOR 12V RECEPTACLE 1 4143068...
  • Page 66 LOWER WIRE HARNESS FIGURE 10 UPPER HARNESS 4175966A CLUTCH DB-1 YB B-1 ENGINE WIRE COLORS WIRE GA. RED W/ WHITE STRIPE BLACK YELLOW W/ BLACK STRIPE WHITE W/ BLACK STRIPE DARK BLUE TO GROUND GREEN BLACK W/ WHITE STRIPE GRA GRAY LIGHT BLUE BATTERY (BLACK)
  • Page 67 LOWER WIRE HARNESS FIGURE 10 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4177358A HARNESS-WIRING, LWR VNGRD 4165689 CLUTCH-ELECTRICAL 2720949 WIRE-CLUTCH 2722227-06 CABLE-CONDUIT BATTERY 62" 112386 BOOT-BATTERY TERM POS 4171099 BATTERY-190CCA 4171973 CHARGER-BATTERY,AGM 108061-18 CABLE-BATTERY BLACK 64 4169459 CONTROL-CLUTCH,SOFT START 148082-10 FUSE-10 AMP * NOT ILLUSTRATED...

  • Page 68: Seat Assembly

    SEAT ASSEMBLY FIGURE 11...
  • Page 69 SEAT ASSEMBLY FIGURE 11 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4177178 SEAT-SUSPENSION I3M - ZZT INCLUDES ITEMS 23-28, 30-33 4174033.2 BRKT-PLATE, SEAT 4143354 BUMPER-SET MOUNTING 48228A CABLE CLIP-INSULATED 64152-23 SCREW-SP 1/4-20X3/8 64018-42 BLT-CRG 1/4-20 X 1 64268-01 NUT-FL NYLON LOCK 1/4-20 64268-03 NUT-FL NYLON LOCK 3/8-16 64141-6...

  • Page 70: Folding Rops

    FOLDING ROPS FIGURE 12...
  • Page 71 FOLDING ROPS FIGURE 12 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4176887 S-ROPS, W/LABELS INCLUDES ITEMS 2-15 4162879 PIN-HITCH 1/2 4162880 LANYARD-NYLON 4160348 WASHER-FORMED RETAINER 2 4162878 WASHER EPDM 1/2 4160344 PLUG 2 X 1/8 WALL SQ TUBE 4160343 BUMPER-RUBBER 4160347 LABEL-WRNG FLDNG ROPS...
  • Page 72 FOOTPLATE & CASTER ASSEMBLY FIGURE 13...
  • Page 73 FOOTPLATE & CASTER ASSEMBLY FIGURE 13 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4177992 S-FRAME W/ LABELS 64123-24 BLT-HEX 1/2-13X2 4162986 CAP-END 64140-5 COTTER PIN-1/8X1-1/2 64025-20 NUT-HEX 3/4-16 SLOT U 64209-17 WSHR-CON SPRING 85010N ZERK 1/4-28 STR SELF THRD 4174651.2 WLDMT-CASTER ARM, 48 &...
  • Page 74 48" SIDE DISCHARGE FIGURE 14...
  • Page 75 48" SIDE DISCHARGE FIGURE 14 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4176919 S-CUTTERDECK,48" LABELS 38524 KNOB-4 PRONG 3/8-16 4174965-1 ASSMBLY-SPNDL 4.85IN 4176653.7 COVER-BELT, 48IN, LH INCLUDES ITEMS 56-59 4175810 COVER-3.0IN DOME PLUG 4176654.7 COVER-BELT, 48IN, RH 4174433 PULLEY-SPINDLE, 48IN 4176616.7 PLT-IDLER REINFORCMENT 4174961-2...
  • Page 76 52" SIDE DISCHARGE FIGURE 15...
  • Page 77 52" SIDE DISCHARGE FIGURE 15 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4176914 S-CUTTERDECK,52" LABELS 38524 KNOB-4 PRONG 3/8-16 4174965-1 ASSMBLY-SPNDL 4.85IN 4174283.7 COVER-BELT, 52IN, LH INCLUDES ITEMS 56-59 4175810 COVER-3.0IN DOME PLUG 4176529.7 COVER-BELT, 52IN, RH 4174432 PULLEY-SPINDLE, 52IN 4176616.7 PLT-IDLER REINFORCMENT 4174961-2...
  • Page 78 61" SIDE DISCHARGE FIGURE 16...
  • Page 79 61" SIDE DISCHARGE FIGURE 16 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4176709 S-CUTTERDECK,61" LABELS 38524 KNOB-4 PRONG 3/8-16 4174965-1 ASSMBLY-SPNDL 4.85IN 4175731.7 COVER-BELT, 61IN, LH INCLUDES ITEMS 56-58, & 60 4175810 COVER-3.0IN DOME PLUG 4176526.7 COVER-BELT, 61IN, RH 4173961 PULLEY-SPINDLE, 61 4176616.7...
  • Page 80 CHUTE, BAFFLES, & EDGES FIGURE 17 22 3...
  • Page 81 CHUTE, BAFFLES, & EDGES FIGURE 17 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4176709 S-CUTTERDECK 61 W/LBLS 19 64018-2 BLT-CRG 1/4-20X3/4 4176914 S-CUTTERDECK 52 W/LBLS 20 64018-23 BLT-CRG 3/8-16X3/4 S 4176919 S-CUTTERDECK 48 W/LBLS 21 64018-9 BLT-CRG 5/16-18X3/4 G5 22 4172339 PAD-WEAR, TRIM SIDE 64268-03...
  • Page 82 DECALS FIGURE 18...
  • Page 83 4165616 LABEL - LH TRACTION 4165615 LABEL - RH TRACTION 4167209 LABEL-PARKING BRAKE 2000590 LABEL, WARN BATTERY 4176392 LABEL-WARN, PITCH POINT 4175911 LABEL-INFORMATION 4167202 LABEL-MANUAL LOCATION 4169490 LABEL-PATENT, SCHILLER 2000735 LABEL-OPERATOR MANUAL 4175835 LABEL-CONTROL PANEL 4176226 LABEL-RELAY/FUSE ID *NOT ILLUSTRATED...
  • Page 84 DECALS FIGURE 19...
  • Page 85 DECALS FIGURE 19 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175839 LABEL-PROCAT 5000 4175433 LABEL-AIRFX 4162914 LABEL-DECK SIZE 48" 4162915 LABEL-DECK SIZE, 52" 4162916 LABEL-DECK SIZE, 61" 4175836 LABEL-BOB-CAT,2.0X15.5 4175471 LABEL-HOC INNER 2000570 LABEL-WARNING FUEL 4160347 LABEL-WARNING FOLDING ROPS 1 4174476-3 LABEL-FUEL TANK 4175470 LABEL-HOC, OUTER...
  • Page 86 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com ©Schiller Grounds Care, Inc. 2010...
